CONTROLLOGIX · REDUCED I/O DATA AREA

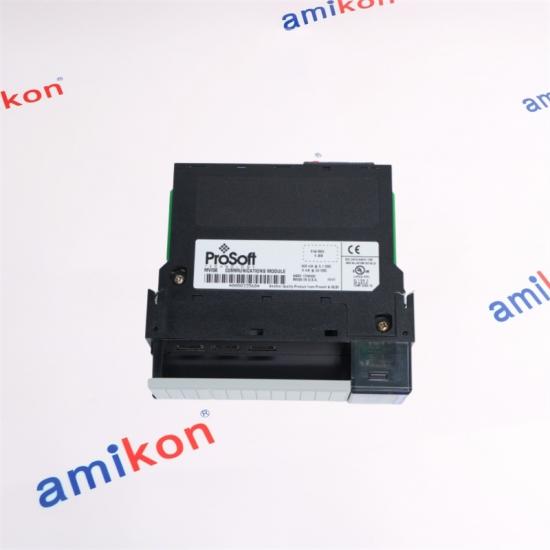

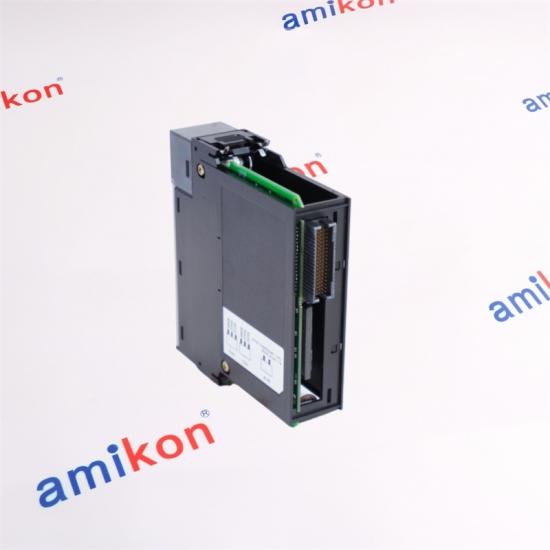

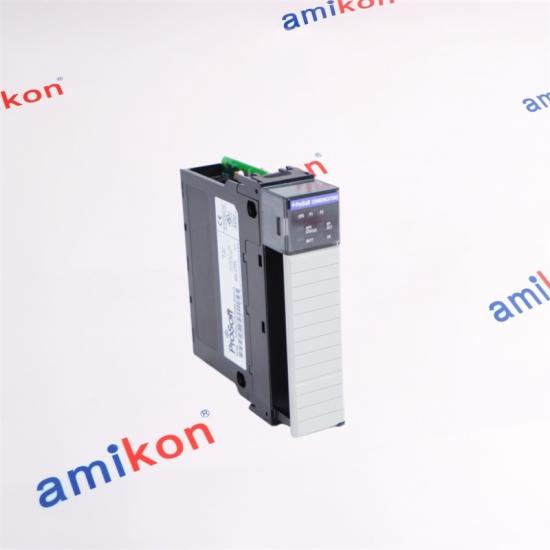

MVI56-DFCMRDF1 Interface Module with Reduced Data Block
A single-slot ControlLogix module that connects I/O-compatible processors with DF1 devices and hosts. Its small I/O transfer area is suited to local or remote racks, including ControlNet or EtherNet/IP-connected remote chassis. |
DATA FLOW
CONTROLLOGIX PROCESSOR
Ladder logic / I/O image ↓ reduced data block ↓
MVI56-DFCMR
Internal database & DF1 engine ↓ serial exchange ↓
DF1 DEVICES
PLCs · meters · radios · modems |
| PLATFORM1756 ControlLogix | RACKLocal or remote · 1 slot | PORTS2 application ports |
| INTERFACESRS-232 / RS-422 / RS-485 | BAUD RATE110–115,200 baud | DATA FORMAT5–8 bits · N/O/E · 1–2 stop |
| DATABASEUp to 5000 registers | COMMAND LENGTHUp to 125 words | ISOLATION500 V from backplane |
| BACKPLANE LOAD800 mA @ 5 V; 3 mA @ 24 V | OPERATING0 to 60°C | HUMIDITY5–95%, non-condensing |
| 01 · Set PRT jumpers for RS-232/422/485. | 02 · Install in the selected ControlLogix slot. | 03 · Match sample ladder logic to processor firmware and slot. |
| 04 · Configure each port as Master or Slave. | 05 · Set baud, parity, data and stop bits. | 06 · Verify LEDs, status and DF1 traffic. |
| REMOTE CHASSIS
Reduced I/O data transfer for ControlNet or EtherNet/IP-connected remote racks. |
LEGACY DF1 ASSETS
Connect compatible PLCs, power monitors and packaged equipment. |
RADIO & MODEM LINKS
Hardware handshaking supports radio, modem and multi-drop networks. |
It reduces the ControlLogix I/O data area used for processor-to-module transfers, which is useful in local and especially remote-rack architectures.
Yes. Each application port can be configured as a DF1 Master or Slave with its own serial parameters.
The application ports support RS-232, RS-422 and RS-485; jumper settings must match the required wiring interface.
The module supports user-defined memory usage for storage and transfer of up to 5000 registers, with read/write command lengths up to 125 words.
Verify available rack power, slot assignment, processor firmware/sample ladder compatibility, port jumpers, cabling and all DF1 settings.
