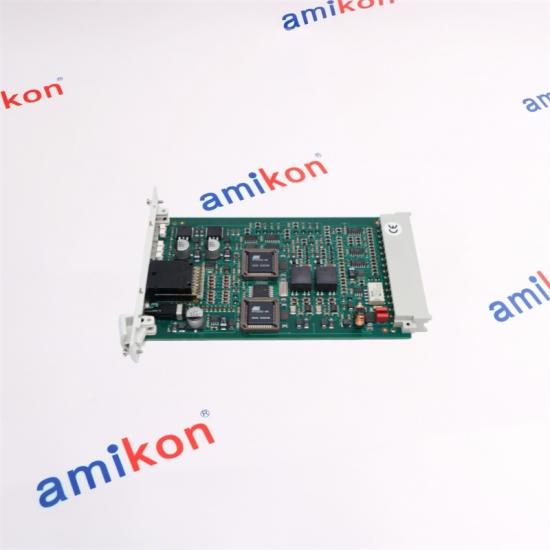

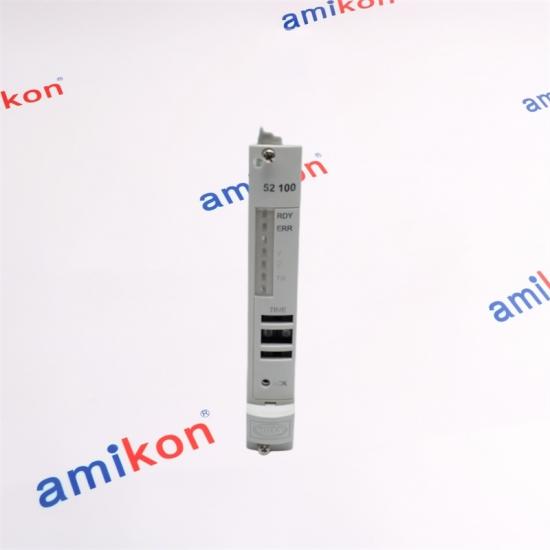

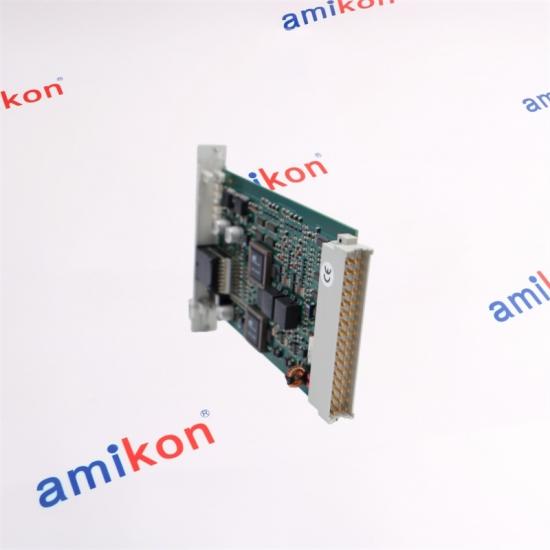

HIMA 52100 Logic function module

Overview

The HIMA 52100 is a safety-certified, hardware-coded Time Delay Module belonging to the HIMA Planar 4 systems. This legacy module is engineered for high-integrity, functional safety applications such as Emergency Shutdown Systems (ESD) and critical machine control.

Planar4 modules

• Basic logic modules: AND, OR, NOT/block (4-8 gates per module)

• I/O: line monitored connections (circuit break, short circuit)

• Timing/delay modules (SIL3 instead of SIL4 due to a bit of firmware on chip)

• Communications / monitoring via Profibus, Modbus, or OPC

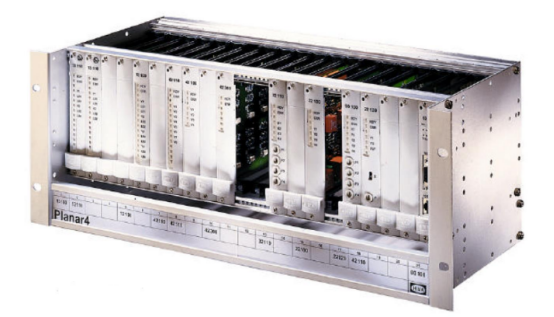

• Installation in standard 19 inch sub-racks

Planar4 Safety-related design

• All Planar4 cards implement safety-related logic, i.e., minimized failure probabilities and known failsafe states

• Example: AND gate

A simple relay-based AND gate

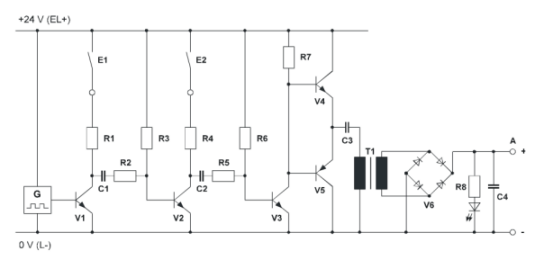

HIMA Planar4 AND-gate. The internal design is based on dynamic signaling driven by a signal generator. A simultaneous failure of up to three separate components leads to the output being de-energized.

HIMA 52100 FAQ

1. What advanced operational capabilities enable the HIMA 52100 to deliver exceptional performance in safety-critical automation architectures?
The HIMA 52100 is engineered to provide highly reliable signal handling and stable operation within HIMA safety systems, ensuring dependable execution of safety-related functions while maintaining system integrity in demanding industrial environments.

2. How does the HIMA 52100 enhance diagnostic intelligence and streamline maintenance throughout the operational lifecycle?
The HIMA 52100 features comprehensive diagnostic mechanisms that facilitate rapid fault identification, simplify troubleshooting procedures, and improve maintenance efficiency, helping maximize system availability and reduce operational downtime.

3. Why is the HIMA 52100 regarded as a dependable component for high-availability process safety applications?
The HIMA 52100 combines robust hardware construction with proven reliability, making it well suited for mission-critical industrial applications that require continuous operation, high functional safety, and long-term operational stability.

4. Which technical prerequisites should be verified before integrating the HIMA 52100 into a HIMA safety control system?
Before deploying the HIMA 52100, engineers should confirm system compatibility, verify power supply specifications, ensure correct wiring and module configuration, and follow the installation recommendations provided in the official HIMA documentation to achieve optimal performance.

5. How does the HIMA 52100 contribute to maximizing system resilience and minimizing unplanned process interruptions?
By integrating advanced self-diagnostic capabilities, reliable electronic architecture, and seamless compatibility with HIMA safety platforms, the HIMA 52100 helps improve operational continuity, accelerates fault recovery, and supports the long-term reliability of industrial safety systems.
