HIMA BV7032-0.5 Data cable of the I/O bus

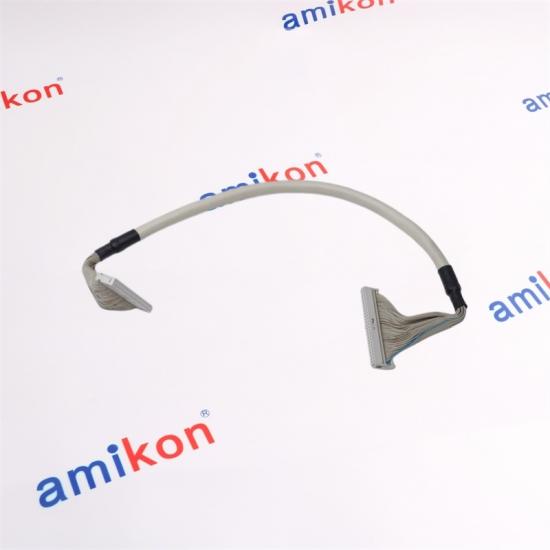

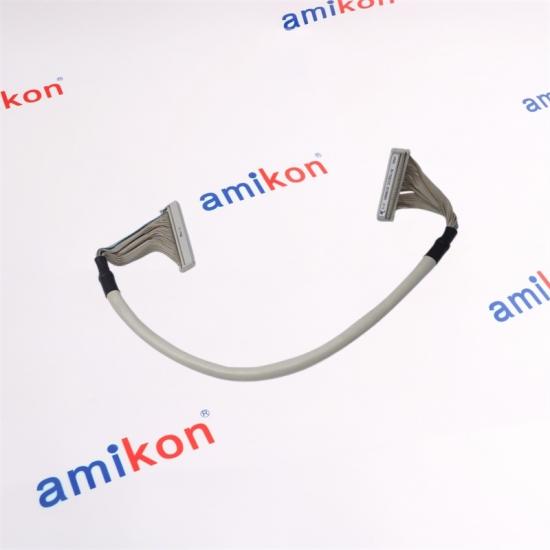

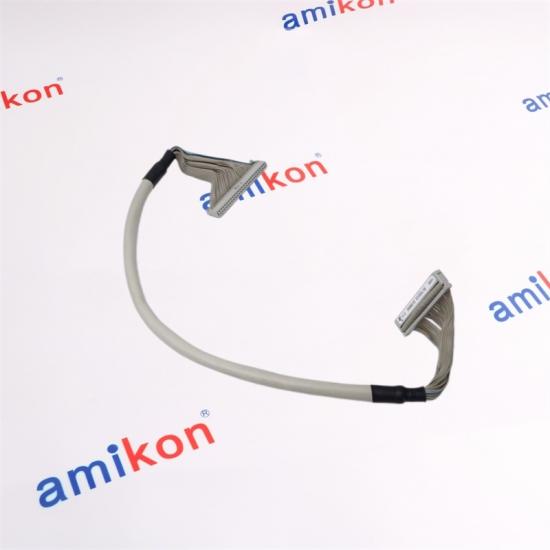

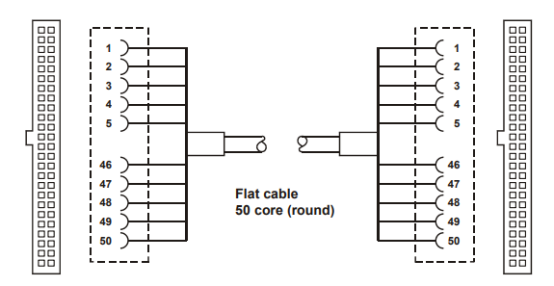

The HIMA BV7032-0.5 is a 0.5-meter data connecting flat cable. It is used to connect I/O subracks to central racks and PES coupling modules within high-integrity.

The HIMA PES

The HIMA PES mainly consists of the H41q and H51q system families. Both system families are based on the same hardware and software, and they are the 3rd generation of the field-proven HIMA PES to control preferably process engineering plants. Additionally personal computers are used for configuration, logging, operation, and trend recording.

Digital and analog inputs can be processed. Some input modules are designed for intrinsically safe circuits as well as for electric position sensors (proximity switches) according to DIN 19234. Digital and analog outputs are also available.

The HIMA PES are installed in subracks 19 inch 5 resp. 4 units high. The H41q system family is a compact system consisting of a subrack holding all components such as central unit, power supplies, fusings, and power distribution, as well as input/output modules.

The H51q system has a modular structure. A central rack 5 units high containing the central unit, interface port extensions, monitoring, and power supplies may have up to 16 associated input/output subracks 4 units high.

Conception of the HIMA PES

The HIMA PES of the H41q and H51q system families consist of module for central devices assembled in one subrack 5 units high 19 inch and of modules for binary and analog input/output signals which are assembled in H51q in 4 units 19 inch subracks.

The HIMA PES use personal computers with the programming system ELOP II for the configuration, monitoring, operation and documentation. The entry of the user’s program and the compilation into the machine code is done only on the personal computer without connected PES. To load, test and to monitor the PLC the personal computer is connected via a serial interface or a bus system together with the PES.

HIMA BV7032-0.5 FAQ

1. What distinguishes the HIMA BV7032-0.5 as a reliable interconnection component within HIMA safety-related automation infrastructures?
The HIMA BV7032-0.5 is designed to provide secure and dependable electrical interconnections, ensuring stable signal transmission and seamless integration within HIMA safety systems while supporting high operational reliability.

2. How does the HIMA BV7032-0.5 contribute to signal integrity and system robustness in mission-critical industrial applications?
The HIMA BV7032-0.5 helps maintain consistent electrical connectivity, minimizes transmission losses, and supports reliable communication between system components, thereby enhancing the overall stability of safety-critical control architectures.

3. Which engineering considerations should be evaluated before installing the HIMA BV7032-0.5 in a HIMA automation platform?
Before deploying the HIMA BV7032-0.5, engineers should verify compatibility with the target HIMA system, confirm connector orientation and cable routing requirements, and ensure installation complies with the manufacturer's specified wiring and environmental guidelines.

4. Why is the HIMA BV7032-0.5 regarded as an essential component for maintaining long-term operational continuity in industrial safety systems?
The HIMA BV7032-0.5 features a durable construction and dependable connection performance, helping reduce the likelihood of signal interruptions, simplify maintenance activities, and improve long-term system availability.

5. How does the HIMA BV7032-0.5 facilitate efficient maintenance and lifecycle management in complex automation environments?
The HIMA BV7032-0.5 is engineered for straightforward integration and reliable operation, enabling faster installation, simplified replacement procedures, and reduced maintenance effort while supporting the sustained performance of HIMA safety control systems.
