BRAND |
HIMA |
|
Model Number |
F60GEH01 |
|
Descripution |
Safety-Related Controller |
|
Systems |
HIMATRIX |
|
Dimensions |
40 HP, 7 RU |
|
Dimensions (W × H × D) |
259 × 310 × 228 mm |
|
Weight |
Approx. 1.5 kg |

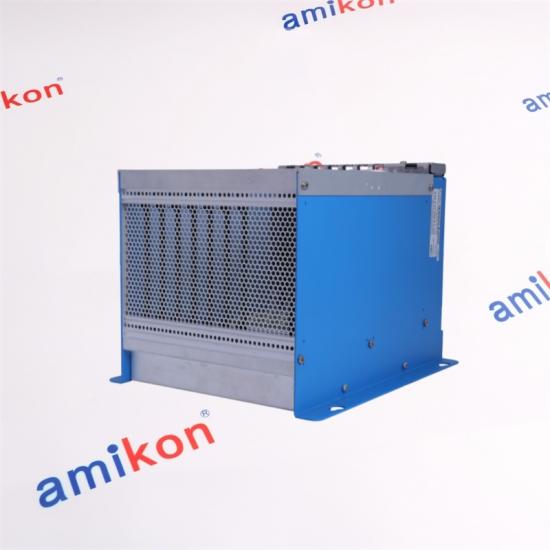

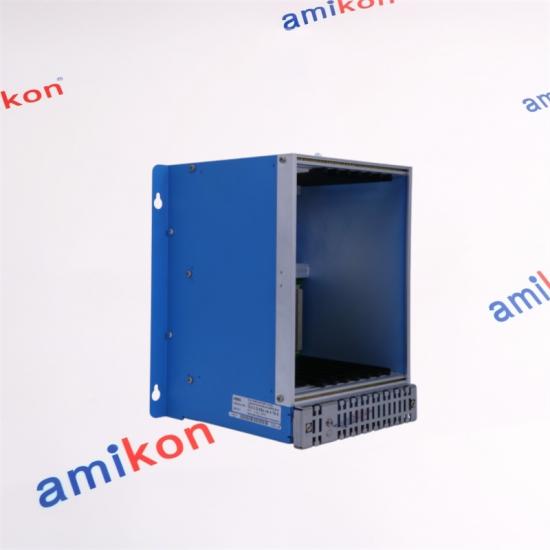

Product Description

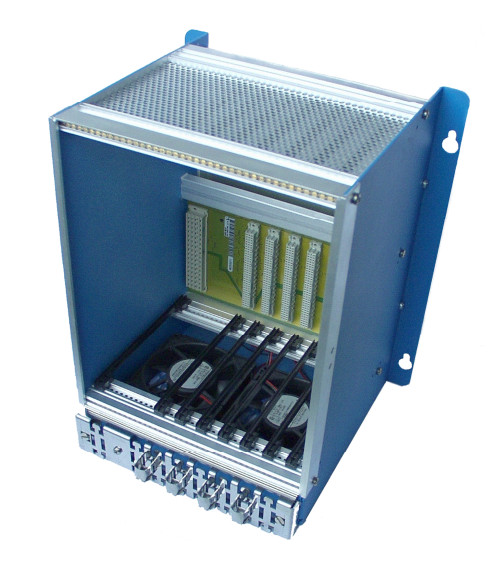

The subrack is intended for being equipped with modules of the F60 system. Slots 1 and 2 are reserved for the power supply module and central module, respectively. Any type of F60 modules can be plugged in to slots 3...8.

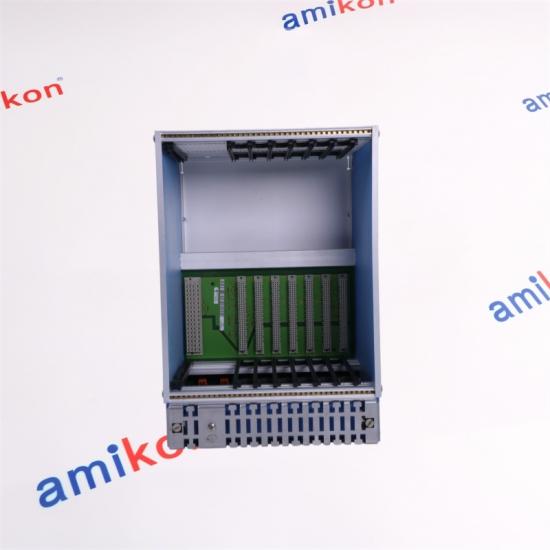

Structure
|
|
The F60 subrack is composed of: l Housing l Earth grid l Backplane PCB (printed circuit board) l Guiding rails l 2 fans The backplane PCB contains connectors for connecting the power supply module and the F60 modules. The plug connections for the power supply of the fans are located on the left bottom side of the PCB backplane. |
|
|

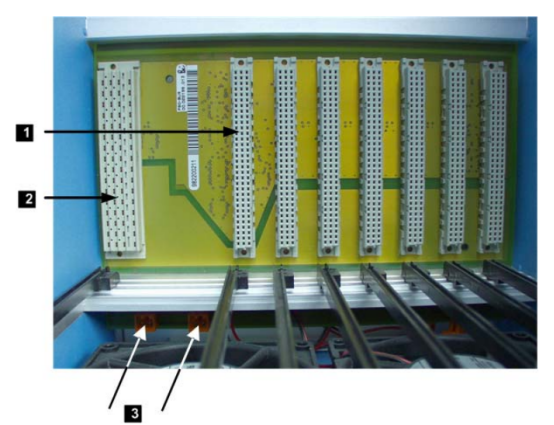

1、Connection of the Central Module 2、Connection of the Power Supply 3、Current Connections for the Fans |
|
The subrack is completed mounted, including the earth grid, backplane PCB, guiding rails and 2 fans. |
|
Product Data
|
Model Number |
F60GEH01 |
|
Material |
Aluminum, anodized, partially coated |
|
Horizontal Pitch |
40 HP (1 HP = 5.08 mm) |
|
Module Compatibility |
Modules in accordance with DIN EN 60287-4, 4 HP each |
|
Connector Standard |
DIN EN 60603-2, Type C, 96-pole |
|
Type of Connection |
Connector |
|
Humidity |
< 95% relative humidity, non-condensing |
|
Ambient Temperature |
0 to +60 °C |
|
Storage Temperature |
-40 to +85 °C |
HIMA F60GEH01 FAQ
1. What makes the HIMA F60GEH01 a pivotal component for establishing a dependable and high-integrity safety system infrastructure?
The HIMA F60GEH01 is engineered to provide a robust mechanical and electrical platform for HIMA safety modules, ensuring reliable system integration, stable operation, and long-term performance in safety-critical industrial environments.
2. How does the HIMA F60GEH01 enhance thermal management and environmental resilience within demanding automation installations?
The HIMA F60GEH01 is equipped with an integrated cooling fan and is designed to operate reliably in ambient temperatures ranging from 0 to 60 °C with relative humidity below 95% (non-condensing), helping maintain optimal operating conditions for installed modules.
3. Why is the HIMA F60GEH01 designed with standardized mechanical and connector specifications for seamless system compatibility?
The HIMA F60GEH01 features a 40 HP, 7 RU rack configuration and utilizes DIN EN 60603-2 Type C, 96-pin connectors, ensuring compatibility with HIMA modules that comply with DIN EN 60287-4 while simplifying installation and future system expansion.
4. Which installation parameters should engineers carefully evaluate before deploying the HIMA F60GEH01 in a safety automation cabinet?
Before installing the HIMA F60GEH01, engineers should verify the available cabinet space, confirm the rack dimensions of 259 × 310 × 228 mm, ensure adequate ventilation for the integrated fan, and validate compatibility with the intended HIMA modules and connector interfaces.
5. How does the HIMA F60GEH01 contribute to long-term maintainability and operational continuity in industrial safety applications?
Constructed from anodized, partially coated aluminum with a lightweight design of approximately 1.5 kg, the HIMA F60GEH01 offers excellent mechanical durability, simplified maintenance, and reliable support for safety system modules, contributing to reduced downtime and extended equipment lifecycle.
