FOXBORO AD916AE FBM203 Termination Assembly

Calculate shipping

Quotation Request

BRAND	Foxboro
Model Number	AD916AE
Descripution	FBM203 Termination Assembly
Series	Foxboro 200 series
Temperature Operating	-20 to +70°C (-4 to +158°F)
Temperature Storage	-20 to +70°C (-4 to +158°F)
Termination Assembly Material	Polyamide (PA), compression

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

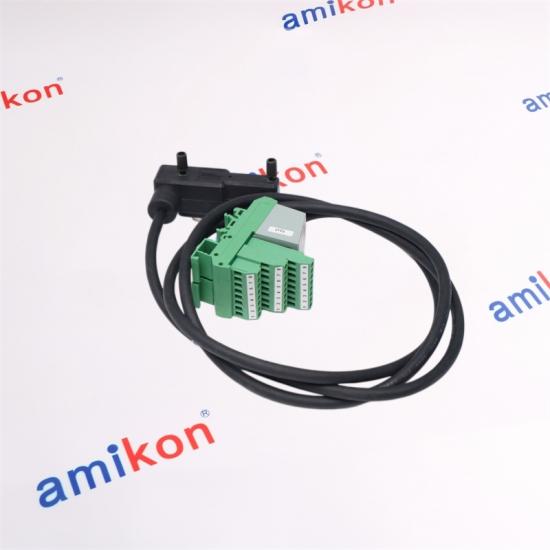

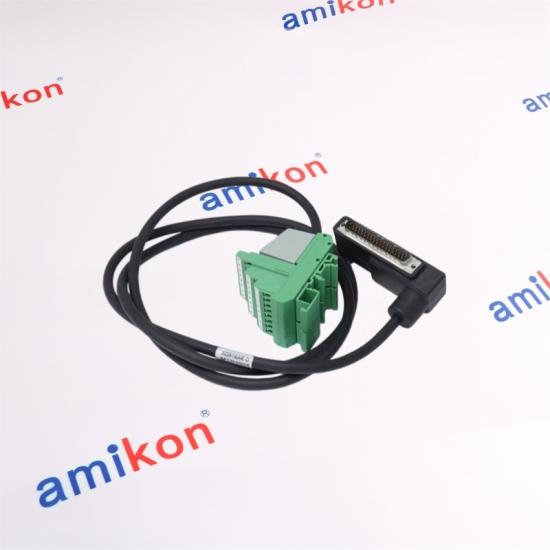

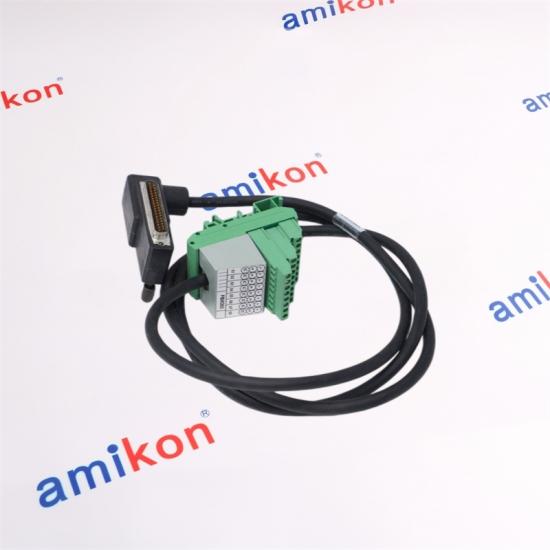

AD916AE

The AD916AE is a Foxboro 200 series compression termination assembly for the FBM203 module, designed for 8-channel RTD temperature inputs.

FBM203 Termination Assemblies

Field I/O signals connect to the FBM subsystem using one of these options:

• DIN rail mounted termination assemblies (TAs)

• Baseplate-mounted TA (FBM203/b/c only)

DIN rail mounted TAs for the FBM203/b/c/d are available in these forms:

• Compression screw type using Polyamide (PA) material

• Ring lug type using Polyamide (PA) material

Baseplate-mounted TAs for the FBM203/b/c are available with compression screw type terminals using Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS) material.

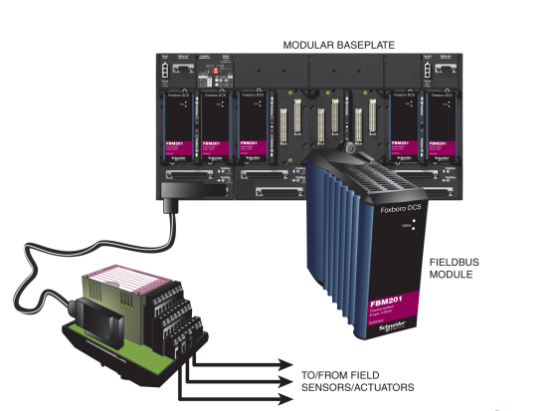

A removable termination cable connects a DIN rail mounted TA to the FBM via a field connector on the baseplate in which the FBM is installed.

Termination cables are available in these materials:

• Polyurethane

• Low Smoke Zero Halogen (LSZH)

Termination cables are available in a variety of lengths, up to 30 m (98 ft), allowing the termination assembly to be mounted in either the enclosure or in an adjacent enclosure.

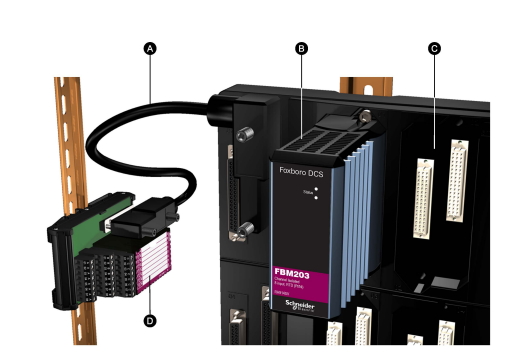

FBM203/b/c/d and DIN Rail Mounted Termination Assembly Installation

Legend
A	Termination Cable
B	FBM203 (RH914SV shown)
C	FBM Baseplate
D	Termination Assembly

Foxboro FBM203 FAQ

1	How does the Foxboro FBM203 enhance thermocouple measurement fidelity in high-performance distributed control systems? The Foxboro FBM203 is a thermocouple input Fieldbus Module that delivers high-precision temperature acquisition with integrated cold junction compensation, ensuring accurate and stable measurements across multiple thermocouple types.
2	Why is the Foxboro FBM203 equipped with galvanic isolation, and how does this improve system resilience? The Foxboro FBM203 provides galvanic isolation between field circuits and the control system, minimizing electrical interference, suppressing ground loops, and improving operational reliability in harsh industrial environments.
3	Which advanced diagnostic capabilities distinguish the Foxboro FBM203 from conventional temperature input modules? The Foxboro FBM203 incorporates comprehensive diagnostics, including open thermocouple detection, module self-monitoring, and communication integrity verification, enabling predictive maintenance and faster fault localization.
4	What thermocouple configurations and industrial applications is the Foxboro FBM203 engineered to support? The Foxboro FBM203 supports multiple thermocouple input channels and accommodates a variety of standard thermocouple types, making it suitable for temperature monitoring in power generation, chemical processing, oil and gas, and other process automation industries.
5	How does the Foxboro FBM203 contribute to seamless integration within the Foxboro I/A Series distributed control architecture? The Foxboro FBM203 communicates efficiently with the Foxboro I/A Series control system, combining accurate signal conditioning, dependable data transmission, and advanced diagnostics to ensure precise process control and high system availability.
