| PROSOFT SUBSTATION GATEWAY | OverviewSpecificationsIntegrationRelated ModelsFAQ |
| MODBUS TCP/IPClient and server exchange | GATEWAY COREDual Ethernet ports Protocol mapping |
IEC 61850Substation data exchange |

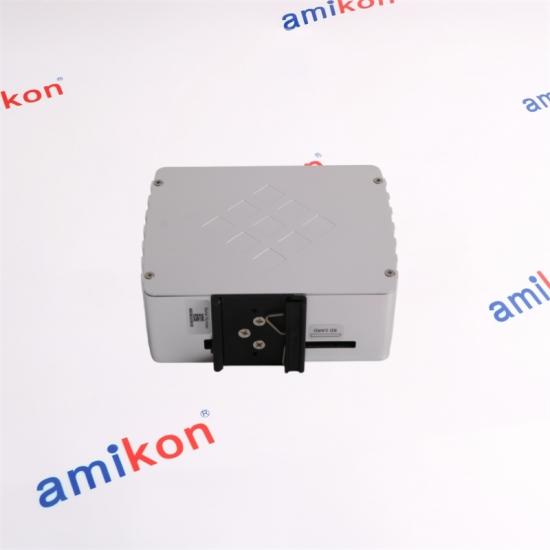

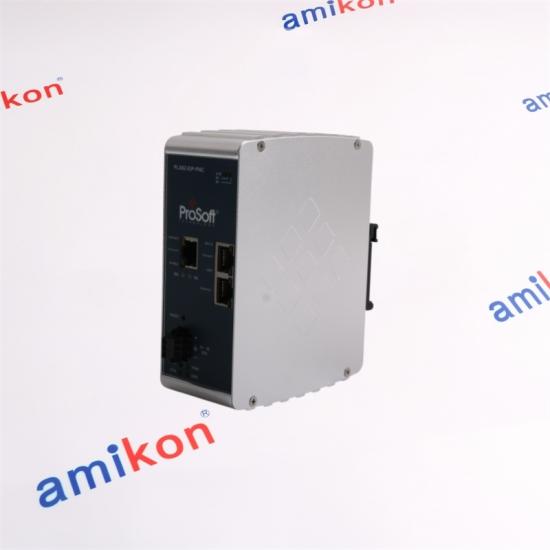

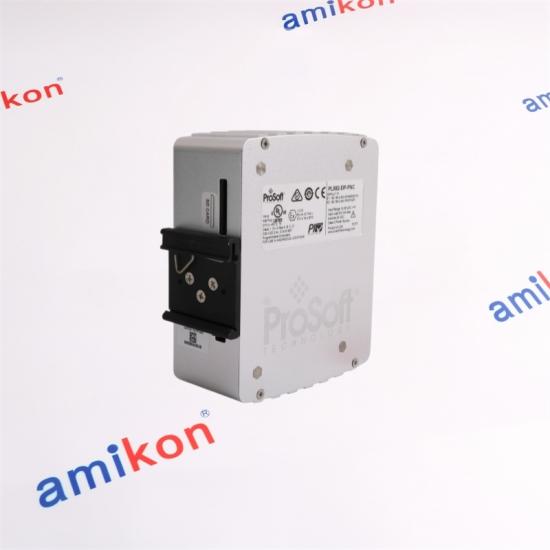

A dual-port gateway that links Modbus TCP/IP devices with IEC 61850 environments while separating the protocol roles through configured data mapping.
REQUEST PRICE & AVAILABILITY| Power input | 24 VDC nominal; 10 to 36 VDC allowed |
| Current load | 200 mA max at 24 VDC; 150 mA max at 32 VDC; 450 mA max at 10 VDC |
| Dimensions | 140.2 x 52.3 x 111 mm |
| Operating temperature | 0 to 70 deg C |
| Storage temperature | -40 to 85 deg C |
| Relative humidity | 5 to 95 percent; non-condensing |
| Ethernet ports | Two 10/100 Base-T RJ45 ports |
| Ethernet isolation | 1500 Vrms for 60 seconds |
| LED indicators | ERR, CFG, FLT, PWR |
| Shock | 15G operational; 30G non-operational |
| Vibration | 5G, 10 to 150 Hz |
| Configuration storage | Internal; optional removable 1 GB industrial SD card |
| NETWORK SIDE AModbus TCP/IP communication with PLC or PAC systems through dedicated 10/100 Base-T Ethernet connectivity. | ROUTING COREIEC 61850 object handling, IED structure import, tag mapping, diagnostics and internally stored configuration with optional SD-card storage. | NETWORK SIDE BIEC 61850 communication with substation IEDs using standardized device naming and interoperable data structures. |
|
Experienced Global TeamMore than 50 specialists support industrial buyers and system integrators.
|
Quality-Focused FulfillmentCareful part matching, inspection and coordinated international delivery.
|
Broad Automation CoveragePLC, HMI, DCS, industrial PC and drive component support.
|
Founded in Hong Kong in 2005, AMIKON supports global automation operations with responsive quotations, hard-to-find components and urgent dispatch coordination.
| Q1 | What systems does PLX82-MNET-61850 connect?It connects Modbus TCP/IP PLC or PAC systems with IEC 61850 intelligent electronic devices used in substation automation. |
| Q2 | Why use a dedicated gateway instead of simple register conversion?IEC 61850 uses structured logical devices, nodes and data objects. The gateway manages these structures and maps them into an accessible Modbus architecture. |
| Q3 | How does it compare with PLX82-EIP-61850?The MNET model uses Modbus TCP/IP on the controller side. The EIP model uses EtherNet/IP. Select according to the PLC communication protocol. |
| Q4 | Does it have two Ethernet ports?Yes. Two 10/100 Base-T ports support the Modbus TCP/IP and IEC 61850 communication architecture. |
| Q5 | What is the advantage of importing IED structures?It reduces repetitive tag construction and helps preserve the IEC 61850 hierarchy when establishing PLC-accessible mappings. |
| Q6 | Is it a direct replacement for PLX81-MNET-61850?It is the newer product path, but migration still requires confirmation of firmware, configuration, network addressing and project behavior. |
Send the complete code, quantity, condition, destination and required delivery date.
CONTACT OUR AUTOMATION TEAM| 6DD1683-0BC0 | 1746-OB8 | RLX2-IHNF-E | MVME147-012 | PLX51-HART-4I |
| MVME162-014A | 6ES5482-4UA20 | 330103-04-13-10-02-00 | 5417-028 | AN-X2-AB-DHRIO |
| 330101-00-20-50-02-05 | 1794-IB16 | KJ4002X1-BF4 | DSQC239 YB560103-CH | T8110B |
| 6ES5430-4UA12 | 2711P-RP8A | 6SE3122-4DG40 | 7379A21G02 | MVI56E-MNETC-CC |
| FBM204 | Tricon 4409 | F2 DO 8 01 | PLX32-EIP-PND | 05704-A-0145 |
| 6ES5460-4UA12 | 6ES5304-3UB11 | 8C-PCNT03 | T9852 | IC200CBL600C |
| FBM203C | ILX34-MBS485 | 6DP1210-7AA | 6EW1810-3AA | CC-TCNT01 |
| 5501-380 | MVME147-022 | IC693PBM200 | 8C-TCNTA1 | 3A99190G01 |
| 51401635-150 | CC-TUIO31 | 1794-IB16D | 143493-00-080-040-50-00 | 1SAP121000R0001 PM564-RP |
| F2 DO 16 02 | NFPW442-51 | 01984-2518-0002 | 1794-IB8 | 51401497-100 |
| MVME147-012A | FBM203B | F2 DO 16 01 | 330105-00-05-10-02-00 | RAIO-01 64379224F |
| 1797-IE8H | FBM203D | MVME162-222 | MVME162-020A | 330901-11-25-10-01-00 |
| QUOTE CHECKPOINTSComplete model code Quantity and condition Destination Required delivery date Installed network role |
RETURN & REPLACEMENTContact us within seven days if an issue is found after receipt. Returned items must remain in their original condition and include a clear reason for return. A return or replacement is arranged after the item is received and checked. Shipping costs associated with the return are the buyer's responsibility. |
