| PROSOFT / LEGACY LINK | OverviewSpecificationsIntegrationRelated ModelsFAQ | ETHERNET / DH485 |

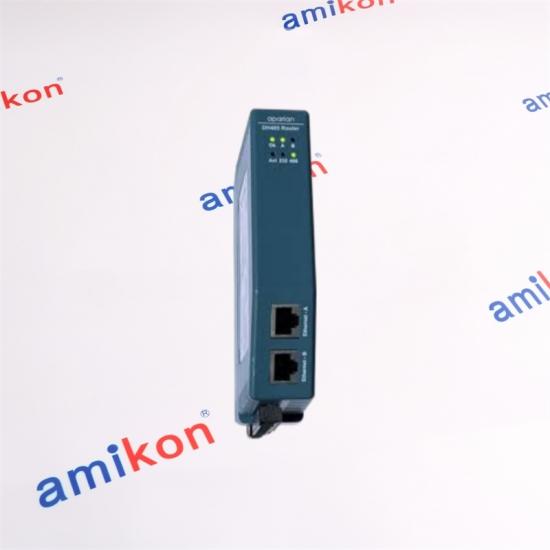

A routing bridge for connecting Ethernet controllers and engineering workstations with installed DH485 equipment, including remote SLC 5/03 programming and mapped Logix data exchange.
| ETHERNET CONTROLLER | → | A-DH485R/B ROUTING CORE | → | DH485 DEVICES |
| 10/100 Ethernet | RS-232 / RS-485 | 10 to 32 VDC | -20 to 70 deg C |
| Power input | 10 to 32 VDC; 67 mA at 24 VDC |
| Power consumption | 1.7 W; 173 mA maximum |
| Dimensions | 149 x 34 x 116 mm |
| Enclosure | IP20; indoor open type |
| Operating temperature | -20 to 70 deg C |
| Ethernet | Two 10/100 Mbps RJ45 ports |
| CIP connections | 10 maximum |
| Serial interfaces | RS232 and RS485; shared 9-way terminal |
| Serial isolation | RS232: 1000 VDC; RS485: 1500 Vrms for 1 minute |
| Baud rates | 1200 to 115200 bps |
| Mapping capacity | 20 transparent and 20 Logix tag mappings |
| NETWORK SIDE ADH485 communication through isolated RS232 and RS485 ports, including Transparent PCCC and AIC operating modes. | ROUTING COREDirect-To-Tag routing, reactive or scheduled tag mapping, PLC5/SLC read and write messaging, and web-based diagnostics. | NETWORK SIDE BTwo 10/100 Mbps Ethernet ports with an embedded switch, DLR support and connectivity to ControlLogix or CompactLogix. |
|
Experienced Global TeamMore than 50 specialists support industrial buyers and system integrators.
|
Quality-Focused FulfillmentCareful part matching, inspection and coordinated international delivery.
|
Broad Automation CoveragePLC, HMI, DCS, industrial PC and drive component support.
|
Founded in Hong Kong in 2005, AMIKON supports global automation operations with responsive quotations, hard-to-find components and urgent dispatch coordination.
| Q1 | What migration problem does A-DH485R/B solve?It connects DH485-based SLC or MicroLogix equipment with EtherNet/IP-based Logix platforms without requiring an immediate field-network replacement. |
| Q2 | Can it replace a 1761-NET-AIC?Its AIC mode provides direct RS485-to-RS232 conversion for applications that previously used that interface function. |
| Q3 | How does it compare with A-CNR?A-DH485R/B handles DH485 through serial interfaces. A-CNR handles ControlNet. They are designed for different legacy networks. |
| Q4 | Can an SLC5/03 be programmed remotely through Ethernet?Yes. Transparent PCCC operation supports connection and programming paths to SLC5/03 controllers. |
| Q5 | What is the advantage of the two Ethernet ports?They provide an embedded switch and support DLR or linear Ethernet layouts without requiring a separate local switch. |
| Q6 | Can the router be installed without a Logix owner?Yes. It can operate in standalone mode or with a Logix-owned connection, depending on the required diagnostics and data exchange. |
Send the complete code, quantity, condition, destination and required delivery date.
