FOXBORO RH924WA Fiber Optic Network Adapter for FCP280

Calculate shipping

Quotation Request

FOXBORO · FCP280

RH924WA

Fiber Optic Network Adapter

Fiber interface option for FCP280 network connectivity.

CONNECTION

FCP280 ↔ Fiber Network

CORE PARAMETERS

FCP280

Processor platform

FIBER

Network medium

FNA

Adapter type

Network-oriented design

RH924WA provides the fiber-side interface required when an FCP280 installation is configured for optical Control Network connectivity.

System role: network adaptation rather than process I/O.

AMIKON CONNECTION

RH924WA

Check your FCP280 configuration with us.

✉ Email Miya zheng ☎ WhatsApp Chat

Sales Manager
Miya zheng

Industrial automation parts
Worldwide supply support

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

FOXBORO RH924WA

FCP280 Fiber Optic Network Adapter

FOXBORO / FCP280 / NETWORK INTERFACE

RH924WA

Fiber Optic Network Adapter for the FCP280

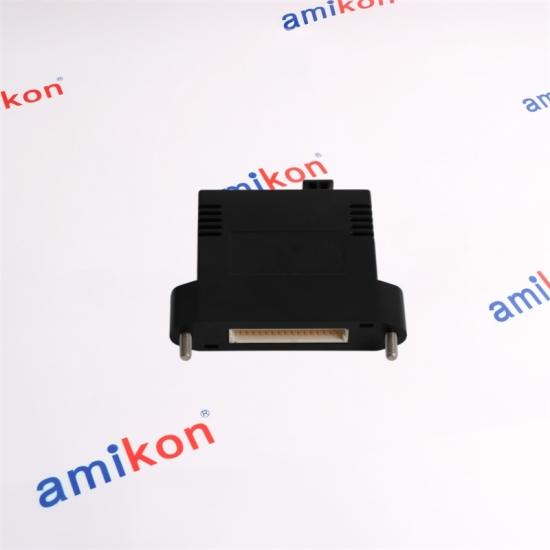

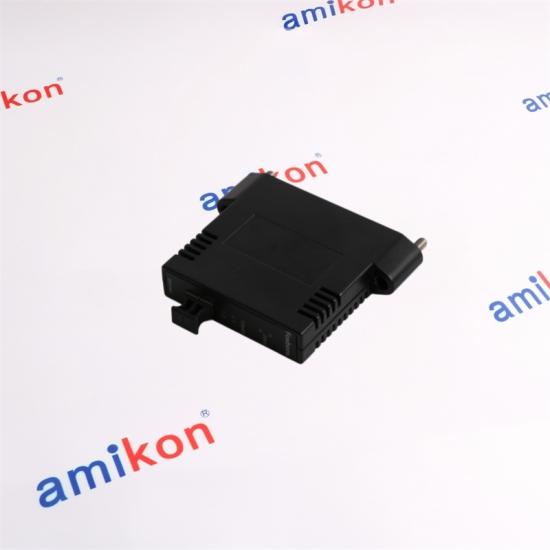

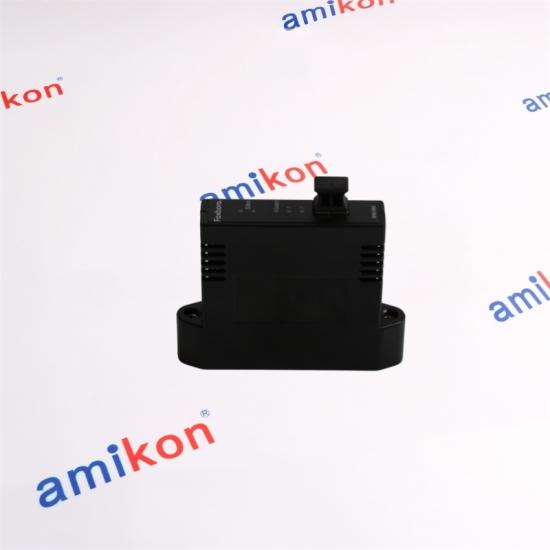

The RH924WA is the fiber-optic network adapter used with the Foxboro FCP280 Field Control Processor. It mounts on the FCP280 baseplate and provides the fiber connection between the controller assembly and The Mesh control network. The adapter receives its power from the baseplate rather than using a separate field power connection.

TYPE

Fiber Network Adapter

NETWORK

100 Mbps Ethernet

FAMILY

FCP280

NETWORK PATH

THE MESH
↓
Ethernet Fiber Switch
↓
RH924WA
↓
FCP280 Baseplate

01 / ROLE

Network
Interface

RH924WA is not the FCP280 processor itself. It is the fiber network adapter mounted with the FCP280 baseplate and used to connect the processor assembly to the Ethernet control network.

The FCP280 architecture uses a pair of network adapters for controller connections to The Mesh control network. In a fiber-based arrangement, RH924WA provides the optical interface while the FCP280 performs the process-control functions.

Fiber Interface

Designed for the fiber network adapter position of FCP280.

100 Mbps Ethernet

Supports the FCP280's 100 Mbps Ethernet network connection.

Baseplate Powered

Receives operating power through the FCP280 baseplate.

TECHNICAL SPECIFICATIONS

RH924WA at a Glance

Part Number	RH924WA	Product Role	FCP280 Fiber Optic Network Adapter
Network	100 Mbps Ethernet	Optical Fiber	Multimode Fiber, 62.5/125 µm
Adapter Connector	Two ceramic LC connectors	Switch-Side Connector	MT-RJ
Maximum Network Fiber Length	2 km / 6,560 ft	Mounting	FCP280 Baseplate
Power	Supplied through baseplate	Environment	Suitable for Class G3 harsh environments within the specified FCP280 architecture

FCP280 FAMILY

Related
Architecture

RH924YA

FCP280 Processor

The control processor that performs process control, data acquisition and alarm functions.

RH924WA

Fiber Adapter

Provides the fiber-optic network connection for the FCP280 architecture.

RH924UQ

Copper Adapter

Alternative FCP280 network adapter using copper Ethernet cabling.

RH924YF / RH924YL

FCP280 Baseplates

Dedicated baseplate options for the FCP280 processor and network-adapter arrangement.

APPLICATION LOGIC

Where RH924WA Fits

RH924WA is appropriate when an FCP280 installation requires the fiber version of its Ethernet control-network connection. It is particularly relevant to distributed process-control architectures where fiber cabling is used between the control-network switch and the FCP280 installation.

01 FCP280 control-network connection through fiber Ethernet

02 Redundant network arrangements using two network paths

03 Field-mounted FCP280 installations using rugged network hardware

04 Control-network layouts requiring up to 2 km fiber reach to the switch

REPLACEMENT CONSIDERATIONS

When RH924WA Needs Attention

Because RH924WA is part of the FCP280 network path, communication symptoms should be assessed across the adapter, fiber cable, connectors, Ethernet switch, baseplate and associated FCP280 hardware rather than treating every network alarm as a processor failure.

Link remains unavailable Check the optical path, connector condition, cable compatibility and network-side equipment before replacing the adapter.	Intermittent communication Inspect fiber connections, routing and switch-side connections, then verify the adapter is correctly seated on the baseplate.
Migration or spare replacement Confirm that RH924WA is required rather than the copper RH924UQ and verify the existing FCP280 baseplate arrangement.	Network redesign Check the planned switch interface, fiber type, connector arrangement and permitted network distance before ordering.

BUYER CHECKPOINT

Before Ordering

✓ RH924WA required

✓ FCP280 architecture

✓ Fiber network connection

✓ LC / MT-RJ arrangement

✓ Correct network cabling

DIRECT CONTACT

Request RH924WA

Send the exact part number and system requirements so we can check the correct configuration and quotation for you.

SALES MANAGER
Miya zheng

EMAIL sales@amikon.cn	WHATSAPP 86-18020776792
QUOTE CHECKLIST Part Number · Quantity · Destination · Required Date · Machine/System

DELIVERY

3–5 Days

WARRANTY

12 Months

PACKAGING

Brand New

PAYMENT

T/T

DELIVERY WAY

E-packing / FedEx / EMS / TNT / DHL / UPS

PURCHASING FAQ

Five Questions Before Replacement

Can RH924WA replace another FCP280 network adapter without changing the processor? RH924WA is the fiber-optic network adapter for the FCP280 architecture. Replacement should be based on the required network medium and existing FCP280 baseplate arrangement. If the installation uses copper Ethernet, the corresponding RH924UQ adapter is the relevant alternative.	Why would RH924WA be selected instead of RH924UQ in an FCP280 installation? The deciding factor is the physical network medium. RH924WA is the fiber adapter, while RH924UQ is the copper adapter. RH924WA is therefore the appropriate choice when the FCP280 control-network connection is designed around fiber Ethernet.
What should be checked before ordering RH924WA for an existing FCP280 cabinet? Confirm the FCP280 platform, the adapter position on the baseplate, the use of fiber Ethernet, and the required connector/cable arrangement. The specified fiber is multimode 62.5/125 µm, with LC connectors at the adapter side and an MT-RJ connection toward the switch-side cable assembly.	How far can an RH924WA fiber connection run from the Ethernet switch? The specified maximum fiber distance between the Ethernet switch and FCP280 is 2 km (6,560 ft). The actual installation must also follow the applicable fiber-cabling requirements and the correct multimode fiber arrangement.
If RH924WA communication becomes intermittent, should the adapter be replaced immediately? Not necessarily. Because RH924WA is one element of the optical network path, first verify the fiber cable, LC/MT-RJ connections, switch-side interface, adapter seating and baseplate condition. If those points are satisfactory and the network path remains abnormal, replacing the adapter can then be considered.
