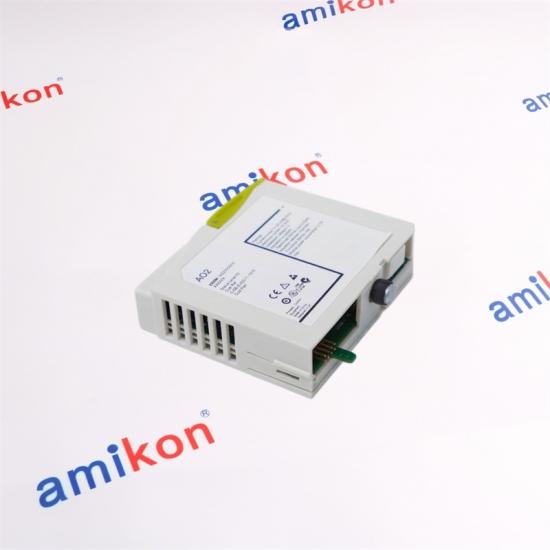

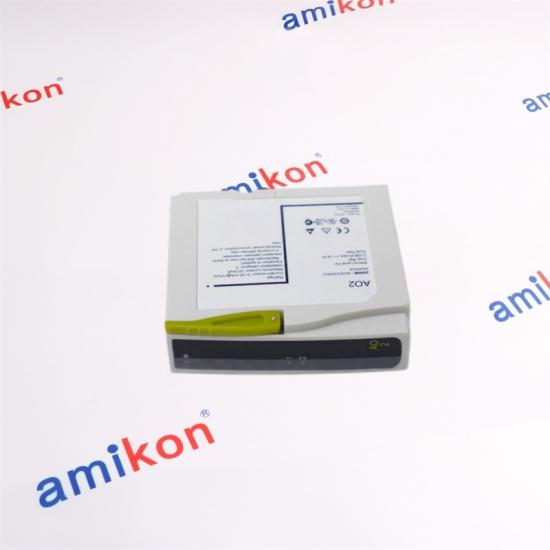

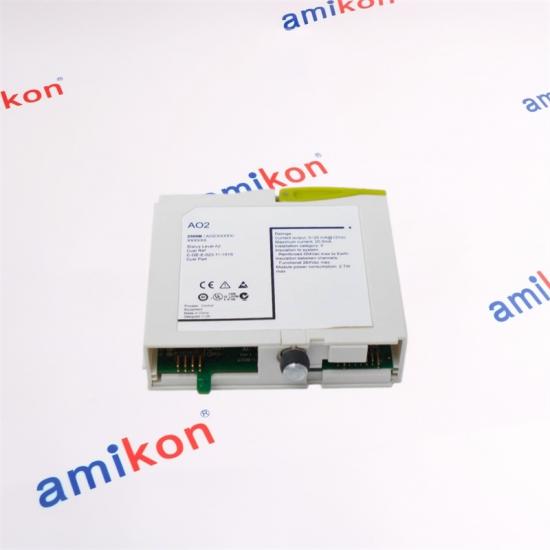

Foxboro AO2 2500M/AO2/XXXXX/XXXXXX two-channel isolated analog output module

Overview

The AO2 2500M/AO2/XXXXX/XXXXXX is a two-channel isolated analog output module. It provides two independent analog output channels with high accuracy (±0.05%) and a wide selectable range (including 0-10 V and 4-20 mA) for harsh industrial environments.

This analogue output module provides two isolated analogue output channels. Each output may be independently configured for current or voltage mode. The module can be optionally fitted with disconnects to allow isolation of an individual output to allow work on the individual loop to continue safely

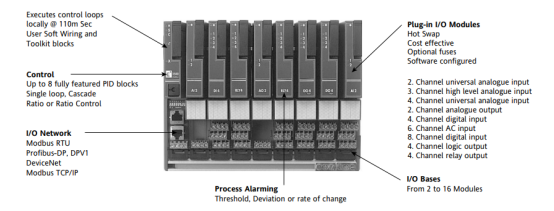

2500 Unit Controller

High performance, high accuracy, high functionality in an I/O system that provides cost effective access to a wide range of advanced functions including PID control with auto tuning and gain scheduling.

Designed to communicate with Modbus RTU™, Profibus™, DeviceNet™ or Modbus TCP/IP masters, it can be used for signal conditioning, alarm monitoring, remote data acquisition or devolved control, for systems such as the Eurotherm Visual Supervisor, PC based SCADA packages and PLC’s.

Eight PID blocks, provide an extensive range of control strategies. Each block offers one-shot auto tuning to optimise control performance without the need for specialist knowledge. Every PID block may be a Single PID, Cascade, Ratio or Override controller, each providing the choice of analogue, time proportioned or valve position output.

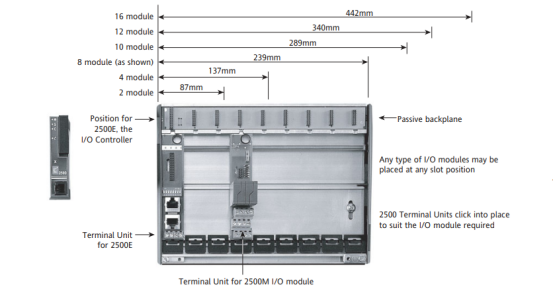

Six base sizes are available to take from 2 to 16 I/O modules each. Up to 16 bases may be daisy chained to provide acquisition and multiloop control solutions with up to 128 loops.

DIN rail mounting allows the 2500 to be located where the control action is required, minimising the cost of the cable used, as only the communications need be taken to the User Interface. The 2500 may also be mounted on part of the machine, saving the cost of centralised control cubicles.

A friendly Windows configurator package, ‘iTools’ is used to set up the 2500. ‘iTools’ parameterises and commissions the I/O points, the Toolkit and PID function blocks and interconnects the different variables, alarms, function blocks and I/O. ‘Toolkit blocks’ provide local combinational logic and mathematical calculation.

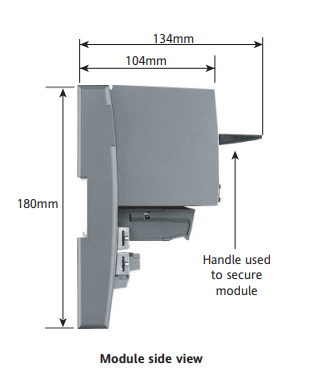

MECHANICAL INSTALLATION
