DOCUMENT / 01
DF1
CONTROLLOGIX
2 APPLICATION PORTS MASTER / SLAVE |
PROSOFT TECHNOLOGY
MVI56-
|
SIGNAL ROUTE
CONTROLLOGIX
Backplane data ↓

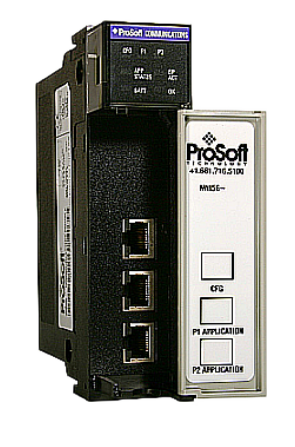

MVI56-DFCM
Protocol engine ↓
DF1 DEVICES
Serial field network |
Remote serial nodes connected over industrial radio or modem links.
Retain compatible PLCs, instruments and packaged equipment.
Manufacturing, utilities, water, energy and process automation.
ProSoft lists MVI56-DFCM as a legacy product and identifies PLX51-DF1-ENI in its migration guidance. It is not a drop-in chassis replacement. External mounting, power, Ethernet and serial wiring, addressing, controller logic and configuration must be reviewed.
|
DOCUMENT / 03
FAQ
MVI56-DFCM · PRODUCT VIEW
|
01
Which operating modes does MVI56-DFCM provide?
DF1 full-duplex master, full-duplex slave and half-duplex slave modes are supported. 02
Are the MVI56-DFCM ports independently configurable?
Yes. Each application port has its own role and serial communication parameters. 03
Which serial standards can MVI56-DFCM use?
The application ports support RS-232, RS-422 and RS-485. 04
What must be verified before commissioning?
Check chassis compatibility, cable pinout, DF1 addressing, baud rate, parity, stop bits, data mapping and controller logic. 05
Is PLX51-DF1-ENI a direct MVI56-DFCM replacement?
No. The recommended migration changes the hardware architecture and needs engineering review. |
| DOCUMENT / 05
AMIKON
|
Industrial sourcing built around uptimeAmikon supplies PLC, DCS, HMI, drive and communication components to system integrators, OEM and MRO teams. Our inventory and sourcing network help customers locate current and hard-to-find parts, shorten extended lead times and keep production assets operating.
|
|
DIRECT SALES SUPPORT
Need MVI56-DFCM?Ask Miya Zheng for current availability, pricing and delivery support. START AN INQUIRY ↓ |
|
