FOXBORO AD908AA Analog Input Module Cable

Overview

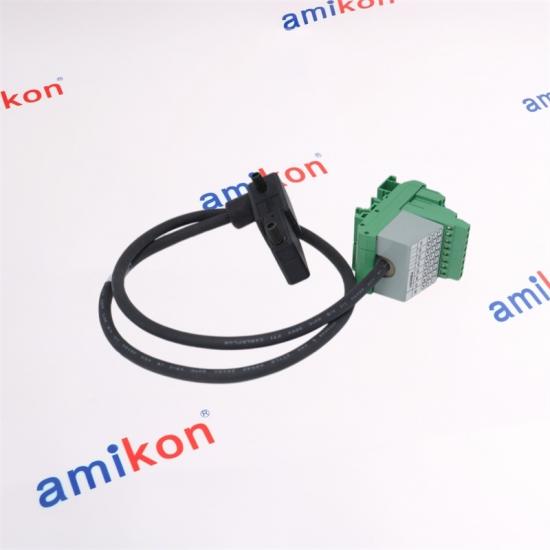

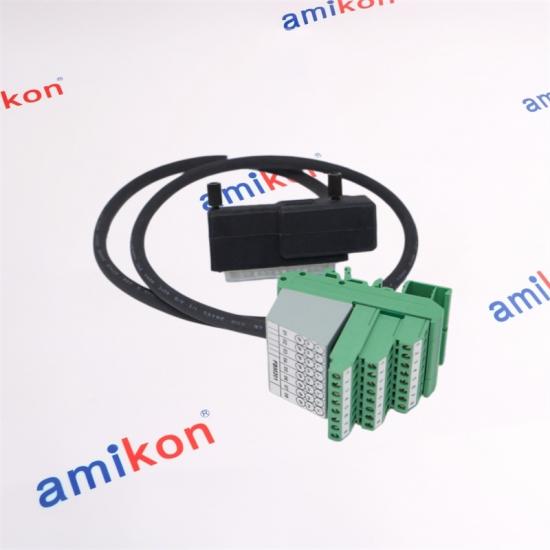

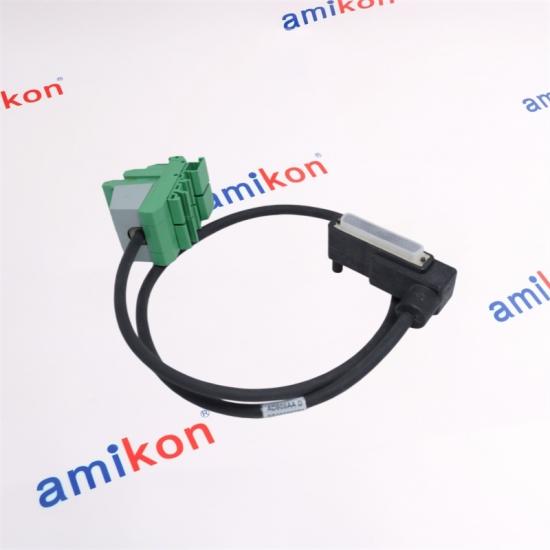

The Foxboro AD908AA is a specialty 1-meter connection cable assembly paired with a Phoenix Contact UMK-SE 11,25-3 terminal block.

Rather than a bare system wire, this assembly functions as a direct field integration link for Foxboro I/A Series and EcoStruxure DCS components like the FBM201 module.

About FBM201

Each FBM201/b/c/d Analog Input Module contains eight analog input channels, each channel accepting a 2-wire, DC input from an analog sensor such as a 4 to 20 mA or 0 to 5 V transmitter, or a self-powered 20 mA source. The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus. The FBM201 is electrically compatible with standard HARTsignals.

Features

• 8 channels for input of analog sensor signals:

◦ 0 to 20 mA DC – FBM201

◦ 0 to 100 mVDC – FBM201b

◦ 0 to 5 VDC – FBM201c

◦ 0 to 10 VDC – FBM201d

• Each analog input channel is galvanically isolated from other channels and ground

• Rugged design suitable for enclosure in Class G3 (harsh) environments

• Execution of an analog input application program that provides conversion time and configurable options for integration time and Rate of Change Limits

• High accuracy achieved by sigma-delta data conversions for each channel

• Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM201/b/c/d modules

• TAs for per channel internally and/or externally loop powered transmitters

Standard Design

The FBM201/b/c/d modules have a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the fieldbus modules (FBMs) provide various levels of environmental protection, up to harsh environments of Class G3 as defined in ISA Standard S71.04.

High Accuracy

For high accuracy, the modules incorporate sigma-delta data conversion on a perchannel basis, which can provide a new analog input reading every 25 ms, and a configurable integration period to remove any process and/or electromagnetic noise. Each time period, the FBM converts each analog input to a digital value, averages these values over the time period, and provides the averaged value to the controller.

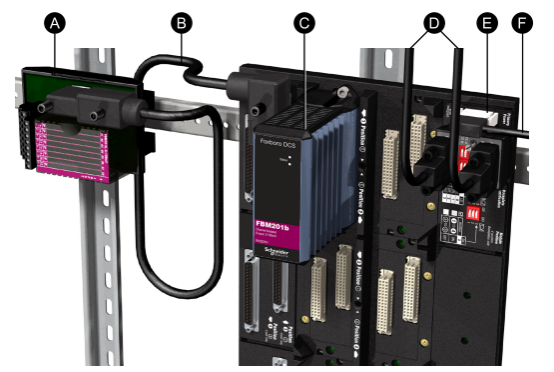

Termination Assemblies

FAQ

1. What distinguishes the Foxboro AD908AA in demanding industrial automation and process control environments?
The Foxboro AD908AA is engineered for dependable signal termination and field interfacing, offering robust connectivity, stable electrical performance, and seamless integration with Foxboro I/A Series control systems.

2. How does the Foxboro AD908AA enhance signal integrity within a distributed control system (DCS)?
The Foxboro AD908AA is designed to maintain reliable signal transmission through optimized terminal architecture, minimizing connection losses and supporting consistent communication between field devices and control modules.

3. Why is the Foxboro AD908AA considered a suitable interface component for mission-critical process applications?
The Foxboro AD908AA combines durable construction, dependable electrical isolation, and compatibility with industrial-grade control platforms, making it well suited for continuous process operation.

4. Which installation attributes make the Foxboro AD908AA practical for system expansion or maintenance?
The Foxboro AD908AA features an installation-friendly design that simplifies wiring, facilitates routine maintenance, and helps reduce commissioning time in automation projects.

5. What compatibility considerations should engineers evaluate before integrating the Foxboro AD908AA into an existing Foxboro system?
Before deployment, engineers should verify that the Foxboro AD908AA matches the intended FBM module, termination configuration, cable type, and system architecture to ensure optimal operational performance and long-term reliability.
