HIMA F3 DIO 8/8 01 Remote I/O Module

Product Description

The safety-related F3 DIO 8/8 01 remote I/O is a compact system in a metal housing with 8 digital inputs, 8 digital DO+ outputs (L- ground), 2 digital DO- outputs (S+ ground) and 2 pulsed outputs. The digital outputs DO4+, DO8+, DO4- and DO8- can also be connected as 2-pole connections.

Safety Function

The remote I/O is equipped with safety-related digital inputs and outputs. The input values on the inputs are safely transmitted to the connected controller via safeethernet. The outputs are safely assigned their values by the connected controller via safeethernet.

Safety-Related Digital Inputs

The remote I/O is equipped with 8 digital inputs. The state (HIGH, LOW) of each input is signaled by an individual LED.

Mechanical contacts without own power supply or signal power source can be connected to the inputs. Potential-free mechanical contacts without own power supply are fed via an internal short-circuit-proof 24 V power source (LS+). Each of them supply a group of 4 mechanical contacts.

Figure 1 shows how the connection is performed.

With signal voltage sources, the corresponding ground must be connected to the input (L-), see Figure 1.

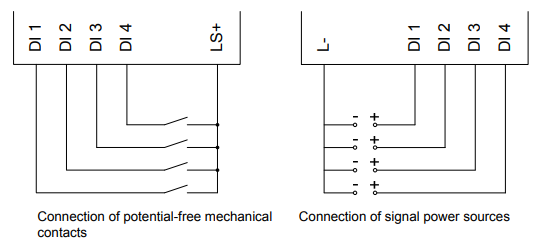

Figure 1: Connections to Safety-Related Digital Inputs

For the external wiring and the connection of sensors, apply the de-energized-to-trip principle. Thus, if a fault occurs, the input signals adopt a de-energized, safe state (low level). If an external wire is not monitored, an open-circuit is considered as safe low level.

Product Data

Frequently Asked Questions

1. What advanced digital signal processing capabilities does the HIMA F3 DIO 8/8 01 provide for high-integrity safety automation applications?
The HIMA F3 DIO 8/8 01 is a safety-related digital input/output module designed for integration into HIMA safety systems. It provides 8 digital inputs and 8 digital outputs, enabling reliable acquisition and control of binary field signals in safety-critical environments. The module supports dependable signal evaluation and actuator control for applications requiring high availability and functional safety performance.

2. How does the HIMA F3 DIO 8/8 01 optimize fail-safe I/O management within SIL-rated industrial control architectures?
The HIMA F3 DIO 8/8 01 enhances fail-safe I/O management by combining digital input monitoring and digital output switching functions in a compact module design. It is engineered for use in safety instrumented systems (SIS) and supports reliable communication between field devices and HIMA safety controllers, helping maintain secure process operation.

3. Which engineering characteristics make the HIMA F3 DIO 8/8 01 suitable for demanding safety-critical automation environments?
The HIMA F3 DIO 8/8 01 features a robust industrial design optimized for high-reliability automation environments. Its integrated digital I/O architecture allows efficient system configuration, simplified wiring concepts, and dependable operation in applications such as process industries, energy systems, and critical infrastructure protection.

4. Why is the HIMA F3 DIO 8/8 01 considered an effective solution for distributed safety control and field-level signal interfacing?
The HIMA F3 DIO 8/8 01 provides an effective solution for distributed safety control architectures because it enables direct interfacing with digital sensors, switches, and actuating devices. Its flexible I/O allocation supports optimized system layouts while maintaining the safety integrity required for modern industrial automation systems.

5. How can the HIMA F3 DIO 8/8 01 improve operational reliability and lifecycle efficiency in HIMA safety system installations?
The HIMA F3 DIO 8/8 01 improves operational reliability through its dedicated safety I/O functionality, stable signal processing, and compatibility with HIMA safety platforms. By reducing complex external interfaces and providing dependable field connectivity, the module helps extend system lifecycle efficiency and simplify maintenance strategies.
