A practical bridge for mixed-controller systems.

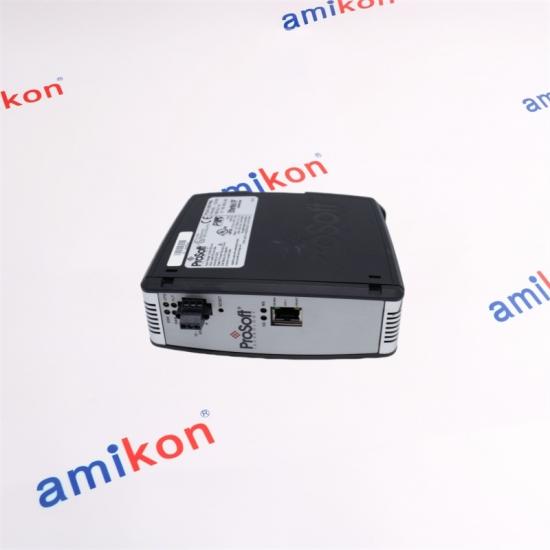

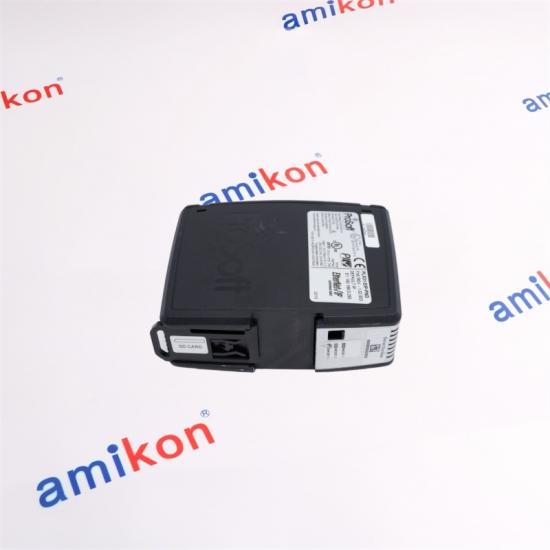

PLX31-EIP-PND transfers data in both directions between EtherNet/IP and PROFINET IO. Multiple I/O connections allow separate RPIs for control and diagnostic traffic to optimize bandwidth.

Technical Data

EtherNet/IP: 5 Class 3 server connections; 2 connected and 1 unconnected Class 3 client; 8 Class 1 I/O connections.

CIP: 0x4C Data Table Read, 0x4D Data Table Write, 100 commands per client.

PROFINET: Class A Device; 1440 bytes input and output; cyclic RT and acyclic data.

Hardware

Power: 24 VDC nominal, 10–36 VDC permitted.

Environment: −25°C to 70°C; 5–95% RH non-condensing.

Dimensions: 13.67 × 5.05 × 11.13 cm; 10/100 Mbit RJ45 Ethernet.

An EtherNet/IP to PROFINET IO Device gateway.

Not when the documented I/O connection method is used.

1440 bytes input and 1440 bytes output.

Different RPIs can be assigned to multiple I/O connections.

Use ProSoft Configuration Builder, download the configuration, and import the GSDML into the PROFINET engineering environment.
