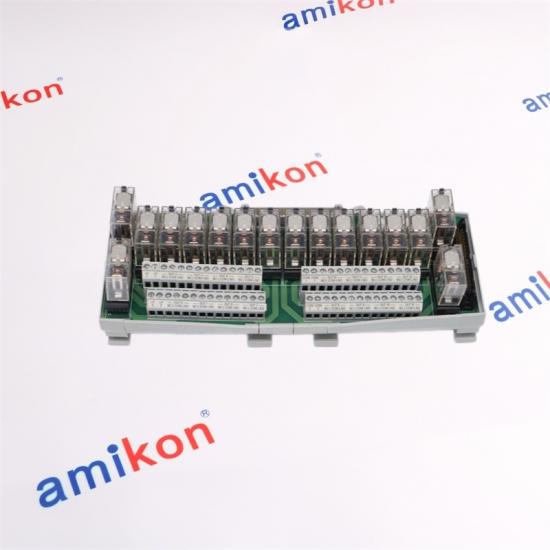

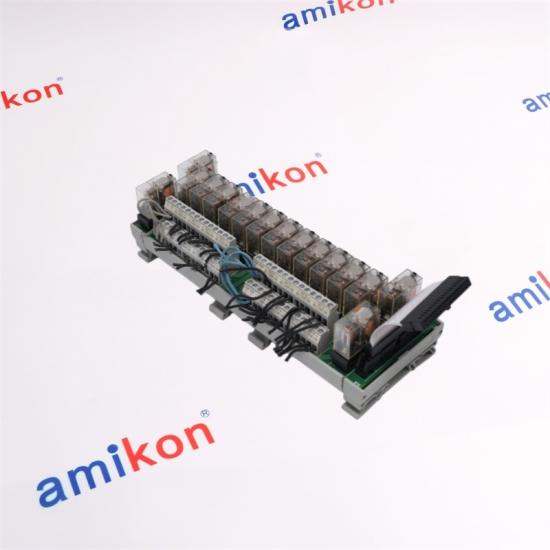

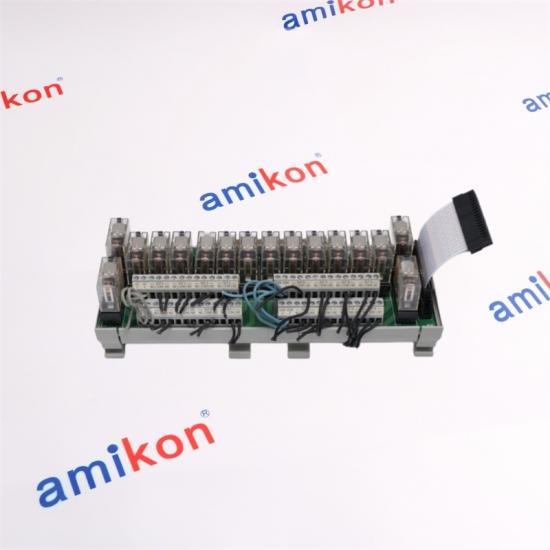

Allen-Bradley 1492-XIM4024-16R Relay Interface Module

Description

The Allen-Bradley 1492-XIM4024-16R is a relay interface module featuring 16 electromechanical relays. It is used to connect PLC I/O modules to field devices. It supports up to 10 Amps per relay output and 96 Amps per module.

Specifications

Reference -Installation/Removal

FAQ

Q1. What functional advantages does the AB 1492-XIM4024-16R provide in PLC wiring and field signal interfacing?

The AB 1492-XIM4024-16R is an Interface Module designed to simplify field wiring between industrial devices and Allen-Bradley I/O modules. By consolidating multiple signal connections into a structured interface, it reduces installation time, improves wiring consistency, and minimizes the risk of field wiring errors.

Q2. Why is the AB 1492-XIM4024-16R considered an efficient solution for high-density digital I/O applications?

The AB 1492-XIM4024-16R supports high-density signal termination through its organized interface architecture, allowing multiple I/O channels to be connected within a compact footprint. This design optimizes control panel space while enhancing maintenance accessibility and cable management efficiency.

Q3. How does the AB 1492-XIM4024-16R enhance system maintainability in industrial automation environments?

The AB 1492-XIM4024-16R simplifies troubleshooting by providing clearly identified terminal points and structured field wiring layouts. This enables technicians to isolate input or output signals more quickly, reducing diagnostic time and improving overall system availability during maintenance.

Q4. Which industrial control systems are best suited for integrating the AB 1492-XIM4024-16R?

The AB 1492-XIM4024-16R is ideally suited for Allen-Bradley PLC-based control systems used in manufacturing, material handling, packaging, automotive production, and process automation. It is particularly valuable wherever reliable field signal distribution and organized panel wiring are essential for long-term operational stability.

Q5. How does the AB 1492-XIM4024-16R contribute to reducing commissioning time and wiring complexity?

The AB 1492-XIM4024-16R is engineered to work with pre-wired interface cables and compatible Allen-Bradley I/O modules, significantly reducing manual point-to-point wiring. This streamlined installation approach accelerates system commissioning, lowers labor costs, and improves wiring reliability while reducing the likelihood of installation-related faults.
