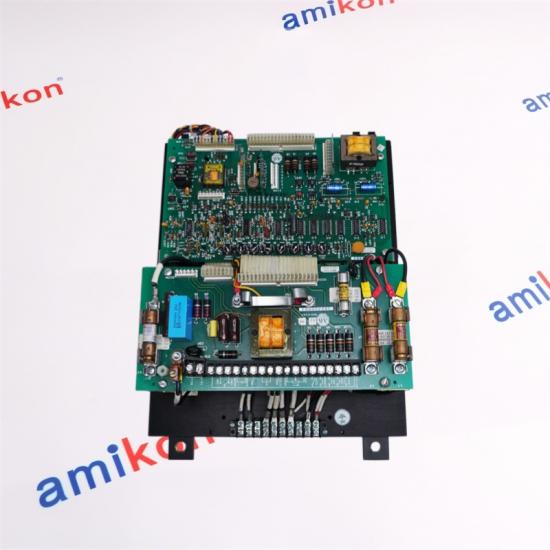

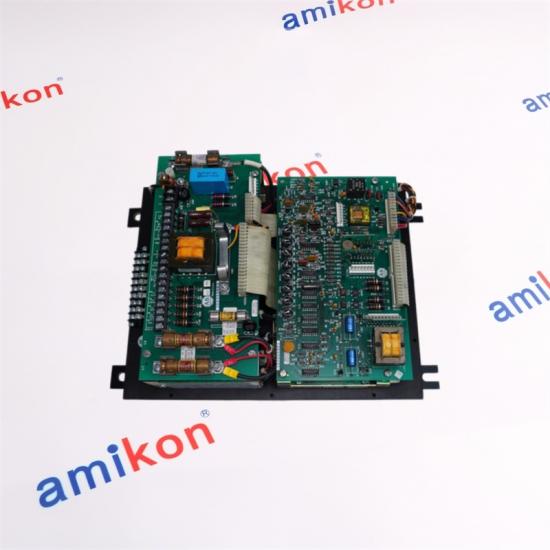

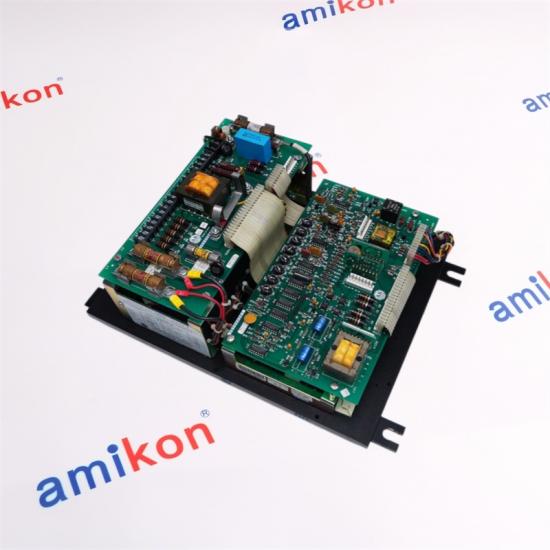

Allen-Bradley 1361-NO61-2-5 AC Inverter Drives

The Allen-Bradley 1361-NO61-2-5 drive is an AC drive that provides remarkable performance and is easy to use. The 1361-NO65-2 drive has been designed specifically to control 3-phase induction motors, with requirements that range from the lightest to the most demanding torque control applications. This drive comes with vector control, sensorless vector control, and Volts per Hertz control. The vector control comprises the Allen-Bradley’s patented Force technology that is popular for providing top-class motor control. Even though this industry-leading control option gives the 1361-NO61-2-5 drive the highest levels of performance, it is very easy to use, like other general-purpose industrial drives. One notable thing about this drive is that it comes with common human-machine interface tools, which are also easy to use. These tools include PC-based configuration tools and LCD human-machine interface modules.

The LCD human-machine interface module on the 1361-NO65-2 drive comes with a large backlit display that is easy to read in several languages like English, German, French, Italian, Dutch, Portuguese, and Spanish. Also, the 1361-NO61-2-5 drive has alternate function keys for shortcuts around common tasks, a calculator-like number pad that allows for easy and fast data entry. In addition to this, the 1361-NO61-2-5 drive comes with control keys for the start, stop, direction, and speed control functionalities. The multiple motor control algorithms in the 1361-NO61-2-5 drive give it an unmatched performance for any needed performance. The Volts per Hertz control is well-suited for simple pump and fan applications. The sensorless vector control, on the other hand, is made for producing high torque over a wide range, whereas the vector control is for remarkable torque regulation, as well as zero/low-speed performance.

1. What distinguishes the AB 1361-NO61-2-5 from other reactor assemblies used in industrial motor drive applications?
The AB 1361-NO61-2-5 is engineered to improve power quality by mitigating harmonic distortion and limiting electrical transients. Its reactor design enhances drive protection, promotes stable motor operation, and contributes to the overall reliability of variable frequency drive (VFD) systems.

2. Why is the AB 1361-NO61-2-5 recommended for demanding power conditioning environments?
The AB 1361-NO61-2-5 helps reduce inrush current, suppress line disturbances, and minimize voltage fluctuations. These characteristics make it an effective solution for safeguarding drive components operating in electrically challenging industrial environments.

3. How does the AB 1361-NO61-2-5 optimize the performance and longevity of AC drive installations?
By smoothing incoming electrical power and decreasing stress on critical drive circuitry, the AB 1361-NO61-2-5 supports improved thermal performance, extends equipment service life, and reduces the likelihood of premature component failure.

4. Which technical considerations should engineers evaluate before integrating the AB 1361-NO61-2-5 into a drive system?
Prior to installation, engineers should verify the AB 1361-NO61-2-5 for voltage compatibility, current rating, impedance specifications, enclosure requirements, ambient operating conditions, and compatibility with the associated AC drive to ensure optimal performance.

5. How can the AB 1361-NO61-2-5 enhance electrical system resilience in continuous-process industries?
The AB 1361-NO61-2-5 reinforces system resilience by attenuating line noise, reducing harmonic-related disturbances, and improving power stability. This results in more reliable drive operation, lower maintenance demands, and increased uptime in mission-critical industrial processes.
