Overview

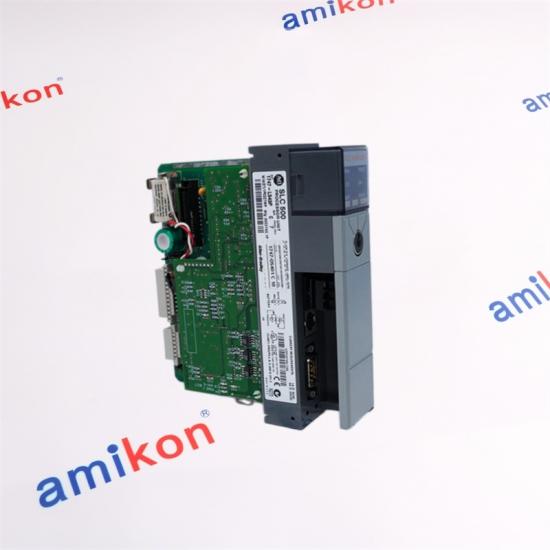

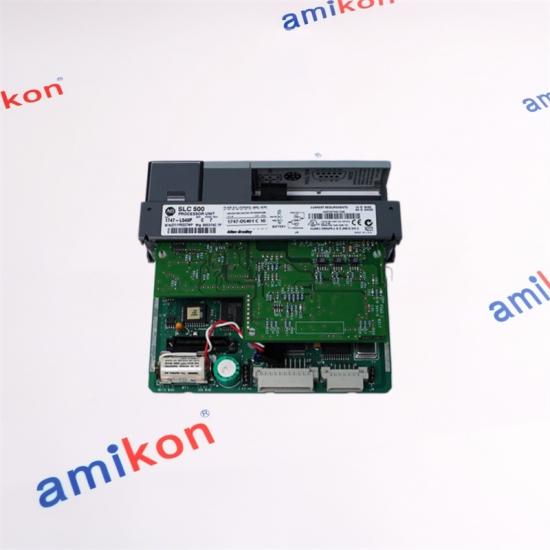

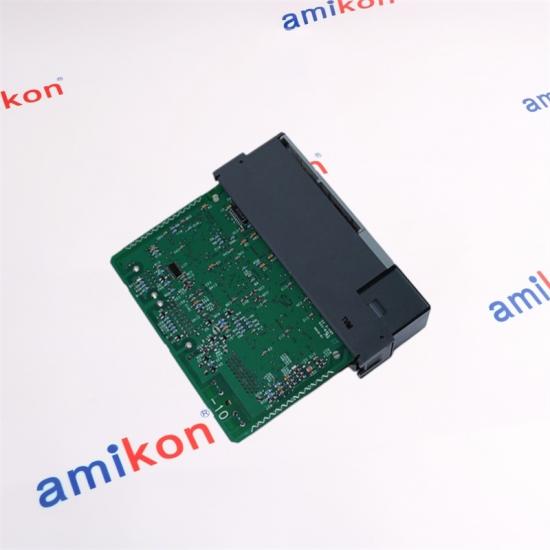

The 1747-L543P is a controller module for the SLC 500 Modular Hardware by Allen-Bradley. It comes with Memory or 64 KB, and built-in communication interfaces such as 9-Pin RS-232 Port and 3 Wire terminal Data Highway Plus (DH+) protocol. It is capable of 4096 Inputs points and 4096 Outputs points.

Specifications

Description

The Allen-Bradley 1747-L543P is an SLC 500 processor. This hardware is a processor which features maximum discrete input and output capacities of 4096 each. It has an integrated memory of 64K words, specifically 60K words for data and program and 4K words for data only. It also comes with a Flash EPROM backup memory and 107 programming instructions. The 64 KB RAM of the 1747-L543P processor is battery-backed. The I/O chassis of the 1747-L543 is a maximum of 3, and it has a maximum of 30 I/O module slots. The communication ports present on this processor are a DH+ port and an RS-232 port. The 1747-L543P It also has status LEDs present for forced I/O, run, CPU fault, RS-232, and DH+.

Program scan time of the 1747-L543P processor is 0.9 milliseconds/K on average, its typical I/O scan time is 0.225 milliseconds, and bit execution is 0.37 µs. It also has a program scan hold-up time after the loss of power between 20 milliseconds and 3 seconds, which is also dependent on the loading of the power supply. The 1747-L543 also runs on backplane currents of 1 A at 5 Volts DC and of 125 mA at 24 Volts DC. Its operating shock is 30 G, and it can withstand an acceleration of 2.5 G at 57 to 2000 Hertz and a displacement of 0.015 inches, peak-to-peak, at 5 to 57 Hertz. Its non-condensing relative humidity is between 5 and 95%, its storage temperature is -40 to 85 degrees Celsius, and its operating temperature is 0 to 60 degrees Celsius.

The 1747-L543P SLC is a SLC 5/04 controller which has the highest memory capacity among the Three (3) variants of 5/04 processors. This processor has integrated 64KB user memory which is sized to handle 4096 Input and outputs. Integrated front-panel indicators is included to allow quick diagnosis of the module’s status.

FAQ

Q1. Why is the AB 1747-L543P considered a dependable processor for mission-critical industrial automation applications?
A: The AB 1747-L543P integrates a high-performance SLC 5/04 processor with robust memory architecture and reliable execution capabilities, making it well-suited for complex machine control, process automation, and distributed manufacturing systems.

Q2. How does the AB 1747-L543P enhance communication efficiency within an SLC 500 control network?
A: The AB 1747-L543P supports integrated communication interfaces, including DH+ and RS-232 serial connectivity, allowing seamless interaction with HMIs, programming terminals, supervisory systems, and peer PLCs.

Q3. What distinguishes the AB 1747-L543P when executing sophisticated ladder logic and industrial control strategies?
A: The AB 1747-L543P provides fast instruction execution, substantial user memory, and deterministic scan performance, enabling efficient processing of advanced control algorithms, sequencing operations, and data management tasks.

Q4. Which industrial environments can benefit most from deploying the AB 1747-L543P?
A: The AB 1747-L543P is widely implemented in automotive production, packaging machinery, water treatment facilities, material handling systems, and general manufacturing processes where dependable PLC control is essential.

Q5. What technical factors should engineers evaluate before integrating the AB 1747-L543P into an existing SLC 500 system?
A: Before installing the AB 1747-L543P, engineers should verify chassis compatibility, power supply capacity, firmware revision, available I/O addressing, communication network configuration, and application memory requirements to ensure reliable system performance.

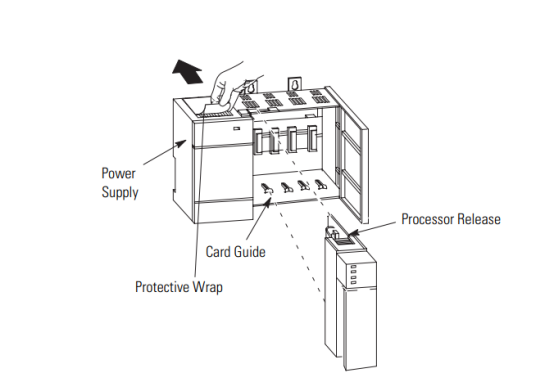

Related - Install the SLC Processor

The SLC 500 modular processors must be inserted into the left slot (slot 0). Inserting the processor in another slot won’t allow the processor to operate.

In addition, remove the protective wrap after installing the processor. Failure to remove the wrap can cause the power supply to overheat.
