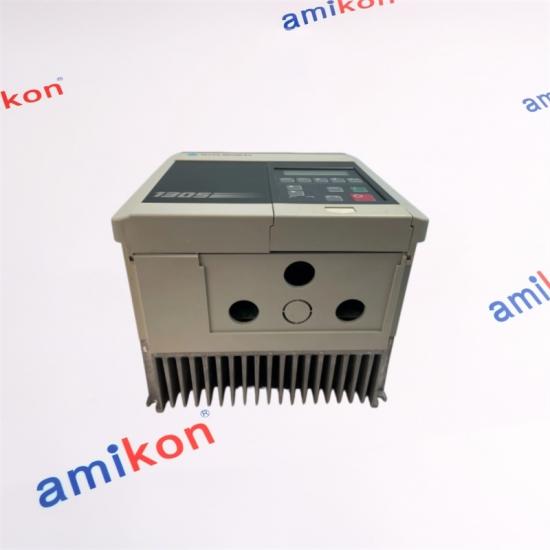

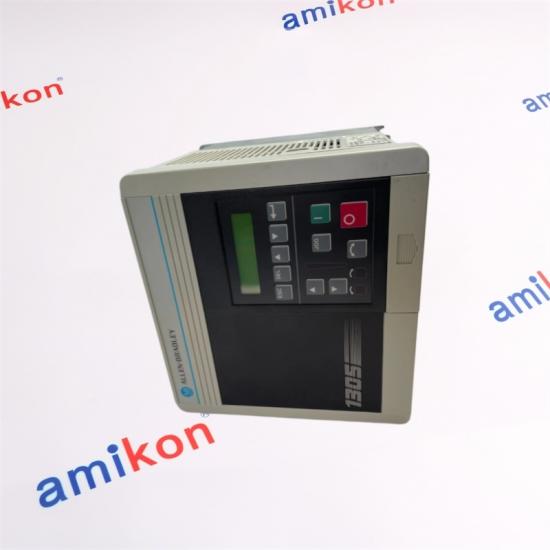

Allen-Bradley 1305-BA09A-HA2 Variable Frequency AC Drive

Choose Amikon

We can help your business well with thoughful

Sales department 24/7 hours service. Deal your request for any PLC DCS products promptly, patiently and professionally.

Engineering department Ensure that there are no quality problems in the products.All products will be examed before shipment.

Financial department Check payment and refund in time.

Warehouse department Careful checking the goods listing and careful packing, shipping goods in time.

After-sales service department Full-time after-sales service team, under the sales department, the user can put the timely response to service requests.

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

01 Descripution

² The 1305-BA09A-HA2 AC drive manufactured by Allen Bradley is designed for variable frequency applications requiring precise control. With an input voltage range of 380 to 480 VAC, this drive operates across three-phase systems, making it a robust solution for various industrial setups. Its performance includes a maximum output power rating of 5 HP, which is suitable for multiple types of motors.

² This drive is capable of handling output voltages reaching up to 460 VAC while maintaining a rated current of 8.7 A. It operates effectively under input frequencies of 50 Hz to 60 Hz, ensuring compatibility with common electrical systems. Enclosure-wise, the device is rated as NEMA Type 1, providing adequate protection for indoor applications.

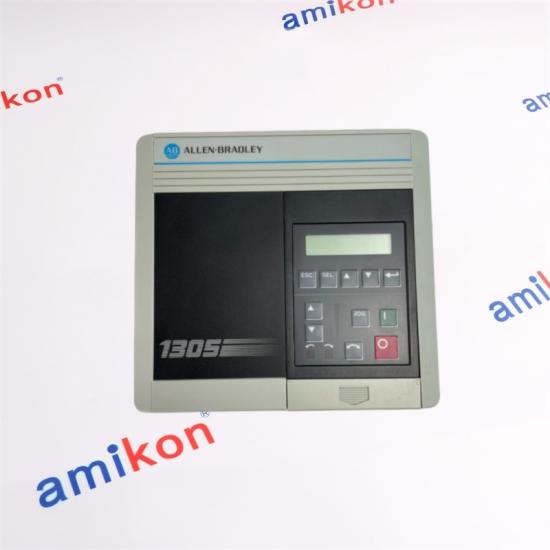

² The IP protection rating of IP30 signifies that the unit is designed for a moderate level of dust protection, further ensuring its reliability in various environments. User interaction with the drive is facilitated through an HIM (Human Interface Module) that features digital up-down keys, allowing for straightforward adjustments and monitoring. Overall, this particular model exemplifies a balance of efficient motor control, ease of use, and environmental considerations.

02 Technical specifications

03 FAQ

Q1. How does the AB 1305-BA09A-HA2 optimize variable-speed motor control in industrial automation applications?

The AB 1305-BA09A-HA2 is designed to provide precise adjustable-frequency motor control, delivering smooth acceleration, accurate speed regulation, and efficient torque management for a wide range of industrial processes.

Q2. Which engineering considerations should be evaluated before commissioning the AB 1305-BA09A-HA2 in a production environment?

Before installing the AB 1305-BA09A-HA2, engineers should verify the input power requirements, motor ratings, environmental conditions, control wiring, parameter configuration, and protective grounding to ensure safe operation and optimal drive performance.

Q3. Why is the AB 1305-BA09A-HA2 regarded as an effective solution for enhancing energy efficiency and equipment longevity?

The AB 1305-BA09A-HA2 adjusts motor speed according to actual process demands, reducing energy consumption, minimizing mechanical wear, lowering maintenance requirements, and extending the service life of both the motor and driven equipment.

Q4. What integrated protective functions distinguish the AB 1305-BA09A-HA2 in mission-critical motor control systems?

The AB 1305-BA09A-HA2 incorporates comprehensive protection features, including overcurrent protection, overload monitoring, overvoltage and undervoltage detection, thermal protection, and fault diagnostics to maximize system reliability and safeguard connected equipment.

Q5. In which industrial sectors does the AB 1305-BA09A-HA2 demonstrate the greatest operational effectiveness?

The AB 1305-BA09A-HA2 is widely deployed in conveyor systems, pumps, fans, compressors, packaging machinery, and material handling equipment across manufacturing, water treatment, food processing, and other industries requiring dependable variable-frequency motor control.
