Allen-Bradley 1336-BDB-SP30D Specialized Gate Driver

choose Amikon

We can help your business well with thoughful

Sales department 24/7 hours service. Deal your request for any PLC DCS products promptly, patiently and professionally.

Engineering department Ensure that there are no quality problems in the products.All products will be examed before shipment.

Financial department Check payment and refund in time.

Warehouse department Careful checking the goods listing and careful packing, shipping goods in time.

After-sales service department Full-time after-sales service team, under the sales department, the user can put the timely response to service requests.

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

Descripution

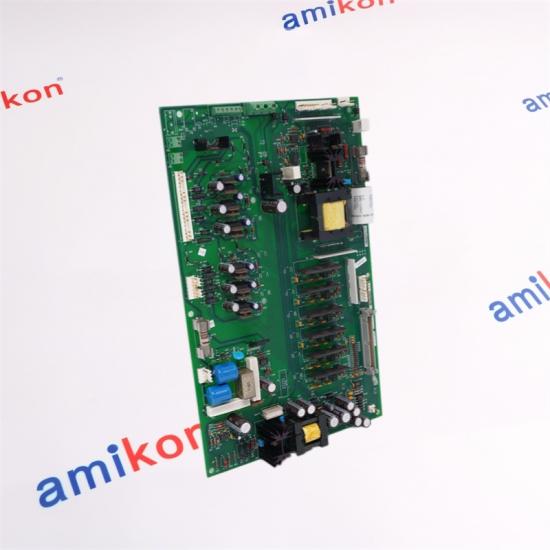

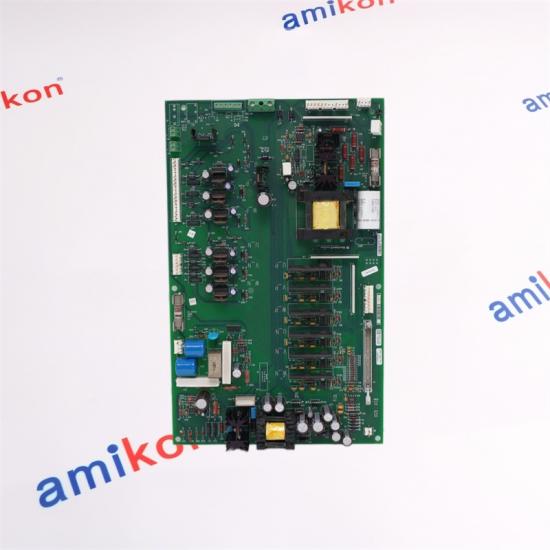

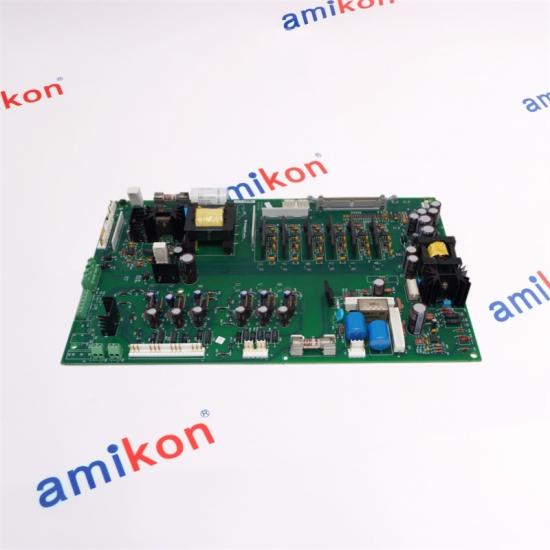

The Allen Bradley 1336-BDB-SP30D is a specialized gate driver designed for applications that involve IGBT gate control. Operating at a rated voltage of 460 VAC, it accommodates a robust output of up to 100 horsepower while managing three-phase power configurations.

Constructed in a D frame design, this unit is versatile and can fit into various industrial setups. It is important to maintain its storage environment; the specified minimum storage temperature is 0 °C, and the maximum is capped at 40 °C. The driver can also operate effectively in environments with humidity levels ranging from 0 to 80%, without risk of condensation affecting performance.

Furthermore, this model is built to tolerate installation altitudes of up to 1000 meters above sea level, making it suitable for diverse geographical locations. The UPC for this gate driver is 662453677125, allowing for easy inventory management and ordering. This module is suitable for applications requiring reliable gate control in varied operational environments.

Technical specifications

FAQ

Q1. How does the AB 1336-BDB-SP30D enhance dynamic braking performance in Allen-Bradley 1336 AC drive systems?

The AB 1336-BDB-SP30D functions as a braking device board that efficiently manages regenerative energy during motor deceleration, helping the drive achieve rapid, controlled stopping while maintaining DC bus stability and overall system reliability.

Q2. Which technical parameters should be scrutinized before integrating the AB 1336-BDB-SP30D into an existing 1336 drive configuration?

Before installing the AB 1336-BDB-SP30D, engineers should verify drive compatibility, hardware revision, motor power rating, braking resistor specifications, wiring integrity, and environmental operating conditions to ensure seamless installation and dependable performance.

Q3. Why is the AB 1336-BDB-SP30D regarded as an indispensable spare component for preventive maintenance programs?

The AB 1336-BDB-SP30D restores the braking circuitry to its intended operating condition, minimizing unexpected drive failures, reducing maintenance downtime, and extending the operational lifespan of Allen-Bradley 1336 drive systems.

Q4. What operational anomalies could indicate that the AB 1336-BDB-SP30D requires troubleshooting or replacement?

Symptoms such as DC bus overvoltage alarms during deceleration, ineffective dynamic braking, inconsistent stopping characteristics, or repeated braking-related fault codes may signify that the AB 1336-BDB-SP30D should be inspected or replaced.

Q5. In which industrial automation applications does the AB 1336-BDB-SP30D provide the most significant engineering benefits?

The AB 1336-BDB-SP30D is ideally suited for conveyors, hoists, cranes, elevators, unwinders, and other high-inertia machinery where efficient regenerative energy management, precise deceleration, and dependable braking performance are essential for safe and continuous operation.
