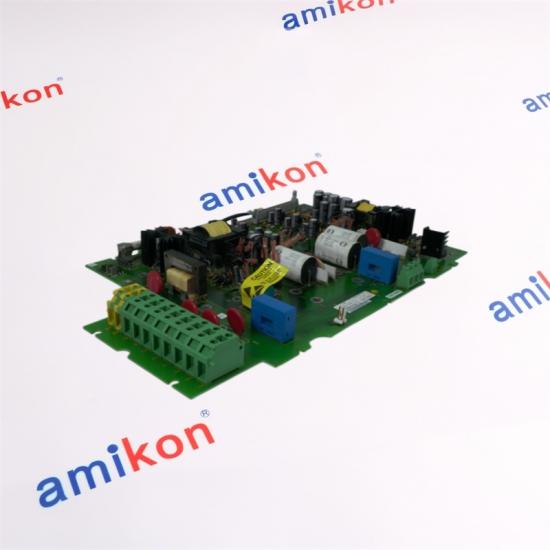

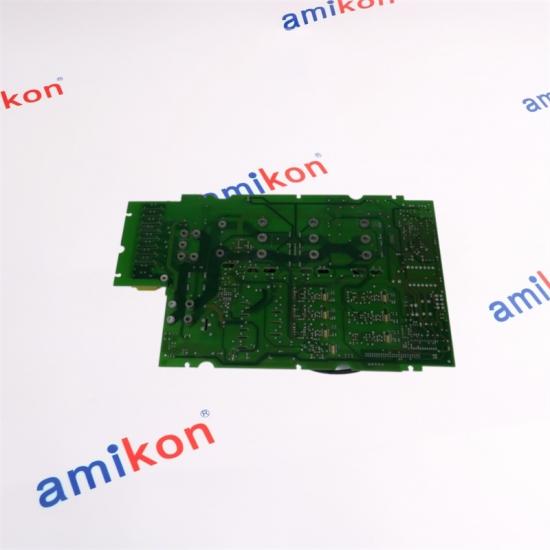

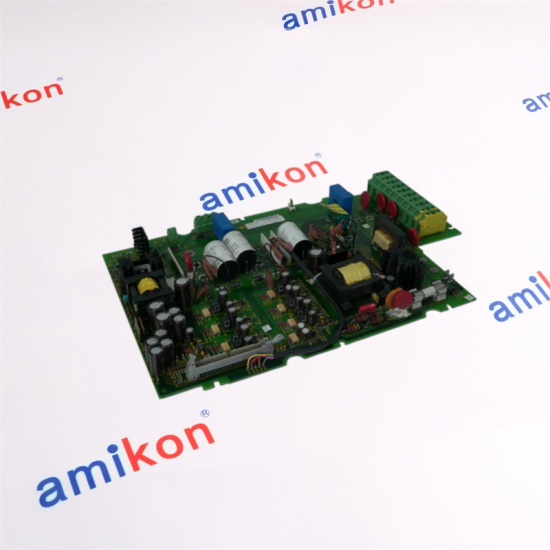

Allen-Bradley 1336-BDB-SP6A Integral Gate Drive Board

The Allen Bradley 1336-BDB-SP6A is an integral gate drive board within the 1336 PCB Boards series, designed for robust control and performance. This component is rated to handle a power level of 30 HP, and it operates efficiently at a voltage specification of 460V, making it suitable for various applications. The board is housed in a B frame, providing a reliable platform for installation amidst various operational settings.

Equipped with a 24 V DC supply for control logic, the 1336-BDB-SP6A ensures stable operation and functionality. Its signal integrity is maintained through optically isolated connections, minimizing the risk of interference. For secure electrical connections, the board employs screw-type terminal blocks, facilitating easy installation and maintenance.

The unit is fabricated from FR-4 industrial grade PCB material, which offers durability and resistance to typical environmental factors. It is capable of operating under natural or forced air cooling methods, ensuring thermal management within the required operating temperature range of 0 °C to +50 °C. This board can function effectively in environments with relative humidity levels ranging from 5% to 95%, provided they are non-condensing, thus ensuring a broad operational capability.

Additionally, it can perform reliably at altitudes of up to 1,000 meters. The board is designed to endure vibrations of 5 g as well as shocks with a maximum resistance of 15 G, underscoring its robustness in challenging conditions. The 1336-BDB-SP6A gate drive board exemplifies solid performance in critical applications where reliability and precision are paramount.

Manufacturer

Allen Bradley

Product Type

Gate Drive Board

Product Line

1336 PCB Boards

Part Number

1336-BDB-SP6A

Weight

12.00 lbs (5.44 kg)

UPC

662073215264

Voltage

460V

Power Rating

30 HP

Frame

B Frame

Control Logic Supply

24 V DC

Signal Isolation

Optically isolated

Termination Style

Screw-type terminal blocks

PCB Material

FR-4 industrial grade

Cooling Method

Natural or forced air

Altitude

1,000 m

Operating Temperature Range

0 °C to +50 °C

Question:

How does the AB 1336-BDB-SP6A contribute to the braking efficiency of Allen-Bradley 1336 AC drive systems?

Anwser:

The AB 1336-BDB-SP6A functions as a braking device board that manages regenerative braking energy, enabling controlled motor deceleration while helping to maintain stable drive performance during high-inertia stopping applications.

Question:

Which compatibility factors should engineers carefully examine before installing the AB 1336-BDB-SP6A into an existing 1336 drive?

Anwser:

Before integrating the AB 1336-BDB-SP6A, engineers should verify the drive series, horsepower rating, hardware revision, braking resistor specifications, electrical connections, and installation guidelines to ensure proper operation and full system compatibility.

Question:

Why is the AB 1336-BDB-SP6A considered a critical replacement component for maintaining reliable dynamic braking performance?

Anwser:

The AB 1336-BDB-SP6A restores the drive's braking circuitry to its intended operating condition, allowing efficient dissipation of regenerative energy, minimizing braking-related faults, and improving the overall reliability of motor control systems.

Question:

What diagnostic symptoms may indicate that the AB 1336-BDB-SP6A requires inspection or replacement?

Anwser:

Frequent overvoltage trips during deceleration, ineffective dynamic braking, braking resistor faults, or inconsistent stopping performance may suggest that the AB 1336-BDB-SP6A should be evaluated as part of a comprehensive maintenance procedure.

Question:

In which industrial applications does the AB 1336-BDB-SP6A deliver the greatest operational advantages?

Anwser:

The AB 1336-BDB-SP6A is particularly beneficial in conveyors, cranes, hoists, elevators, winders, and other high-inertia industrial systems where rapid, controlled deceleration and dependable braking performance are essential for operational safety and productivity.
