Category |
Drives |
|
Product Line |
1336 PLUS II Drives |
|
Part Number |
1336F-B025-AA-EN |
|
Weight |
85.00 lbs (38.56 kg) |
|
Voltage |
380 to 480 Volts AC |
|
Series |
Plus II |
Our Team
l Same-day dispatch on 1000s of parts
l Our company under the Ministry of market sales, technical Works, after-sales service, integrated management of the Department.
We can help your business well with thoughful
l Sales department 24/7 hours service. Deal your request for any PLC DCS products promptly, patiently and professionally.
l Engineering department Ensure that there are no quality problems in the products.All products will be examed before shipment.
l Financial department Check payment and refund in time.
l Warehouse department Careful checking the goods listing and careful packing, shipping goods in time.
l After-sales service department Full-time after-sales service team, under the sales department, the user can put the timely response to service requests.
⇒Sales manager: Miya zheng Email: sales@amikon.cn WhatsApp: 86-18020776792
Descripution

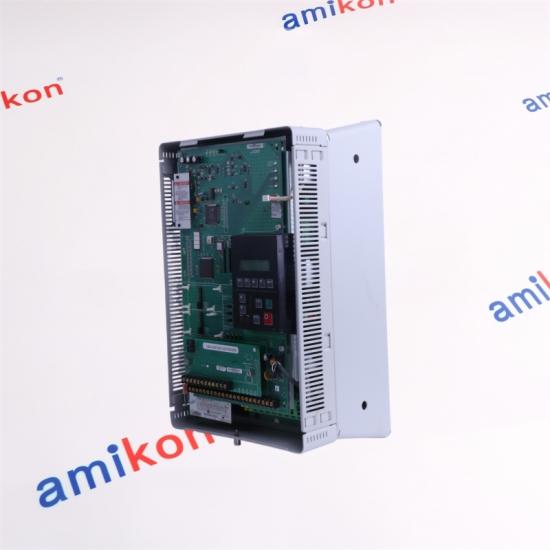

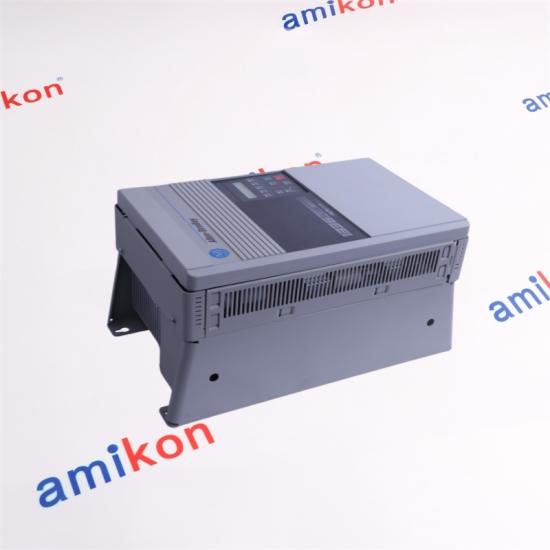

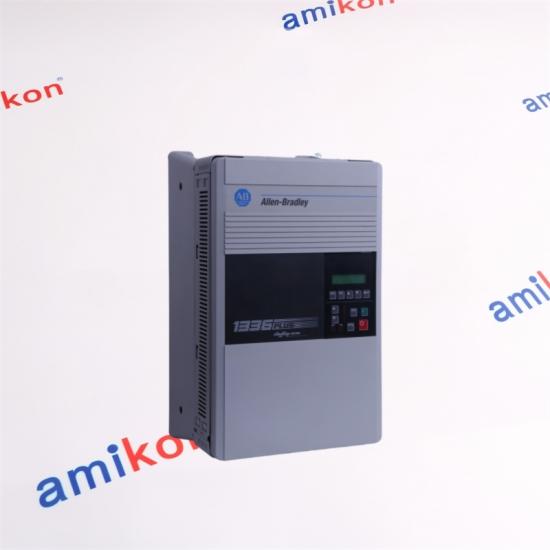

The Allen-Bradley 1336F-B025-AA-EN is an adjustable Frequency AC drive from Allen-Bradley. This drive is part of the 1336 Plus II product family that features Sensorless Vector Control (SVC) and Volts / Hertz (V/Hz) control capability. This drive has a NEMA Type 1 enclosure that is powered by a supply voltage of 380-480 VAC, 3-Phase. It delivers an output power of 25 HP and output current of 24 Amperes.
Being part of the Plus II adjustable frequency AC drive, the 1336F-B025-AA-EN comes with a built-in serial communication interface. This communication port enables direct integration to the Allen-Bradley PLC series such as the PLC2, PLC3, PL4 and PLC5 product family as well as the SLC 500 controller platform. By integrating the drive to controllers, the parameters of the drive may become an integral part of the controller as instructions that is regularly scanned by the controller.
The 1336F-B025-AA-EN has an AC Input Overvoltage Trip of 570V AC; AC Input Undervoltage Trip of 280V AC; Bus Overvoltage Trip of 810V DC and Bus Undervoltage Trip of 400V DC while the drive nomibal bus voltage is 648 VDC. Additionally, this drive comes with a microprocessor for monitoring overtemperature.
Aside from the Bus voltage and AC voltage trips, the 1336F-B025-AA-EN is also equipped with Drive Overcurrent Trip. It also has Ground Fault Trip and Short Circuit Trip detection.
Technical specifications
|
Manufacturer |
Allen Bradley |
|
Category |
Drives |
|
Product Line |
1336 PLUS II Drives |
|
Part Number |
1336F-B025-AA-EN |
|
Weight |
85.00 lbs (38.56 kg) |
|
Voltage |
380 to 480 Volts AC |
|
Series |
Plus II |
|
Control Method |
V/Hz control / Sensorless Vector control (SVC). |
|
Input voltage |
380-480 VAC, 3-Phase |
|
Frequency |
47-63Hz |
|
Enclosure Rating |
NEMA 1 |
|
Output power |
25 HP |
|
Output Current |
24 Amperes |
|
AC Input Overvoltage Trip |
570V AC |
|
AC Input Undervoltage Trip |
280V AC |
|
Bus Overvoltage Trip |
810V DC |
FAQ
|
Question: |
How does the AB 1336F-B025-AA-EN deliver high-precision speed regulation for sophisticated industrial motor control applications? |
|
Anwser: |
The AB 1336F-B025-AA-EN employs advanced PWM and vector control technologies to provide accurate speed regulation, responsive torque control, and smooth motor acceleration, making it suitable for demanding automation environments. |
|
Question: |
Which technical prerequisites should be validated before integrating the AB 1336F-B025-AA-EN into an industrial drive system? |
|
Anwser: |
Prior to installation, engineers should confirm the AB 1336F-B025-AA-EN matches the application's input voltage, motor horsepower, enclosure requirements, ambient temperature limits, control interface, and wiring specifications to ensure reliable commissioning. |
|
Question: |
Why is the AB 1336F-B025-AA-EN considered an effective solution for optimizing energy efficiency and production continuity? |
|
Anwser: |
The AB 1336F-B025-AA-EN adjusts motor speed according to process demand, reducing unnecessary energy consumption, minimizing mechanical stress, and improving the overall operational efficiency and reliability of industrial equipment. |
|
Question: |
What integrated diagnostic and protection capabilities are incorporated into the AB 1336F-B025-AA-EN to enhance system dependability? |
|
Anwser: |
The AB 1336F-B025-AA-EN includes comprehensive protection features such as overload protection, overcurrent monitoring, overvoltage and undervoltage detection, thermal protection, and fault diagnostics to safeguard both the drive and the connected motor. |
|
Question: |
In which industrial applications does the AB 1336F-B025-AA-EN demonstrate the greatest operational versatility? |
|
Anwser: |
The AB 1336F-B025-AA-EN is widely deployed in conveyor systems, centrifugal pumps, industrial fans, compressors, mixers, and material handling equipment across manufacturing, water treatment, mining, food processing, and other continuous-process industries that require precise variable-speed motor control. |
