Product Line |
1336 PLUS II Drives |
|
Part Number |
1336F-BRF50-AA-EN |
|
Weight |
11.50 lbs (5.22 kg) |
|
Voltage Rating (AC) |
380-480 VAC |
|
Voltage Rating (DC) |
513-620 VDC |
|
Power Rating |
3.7 kW |
OUR TEAM
l Same-day dispatch on 1000s of parts
l Our company under the Ministry of market sales, technical Works, after-sales service, integrated management of the Department.
We can help your business well with thoughful
l Sales department 24/7 hours service. Deal your request for any PLC DCS products promptly, patiently and professionally.
l Engineering department Ensure that there are no quality problems in the products.All products will be examed before shipment.
l Financial department Check payment and refund in time.
l Warehouse department Careful checking the goods listing and careful packing, shipping goods in time.
l After-sales service department Full-time after-sales service team, under the sales department, the user can put the timely response to service requests.
⇒Sales manager: Miya zheng Email: sales@amikon.cn WhatsApp: 86-18020776792
Descripution

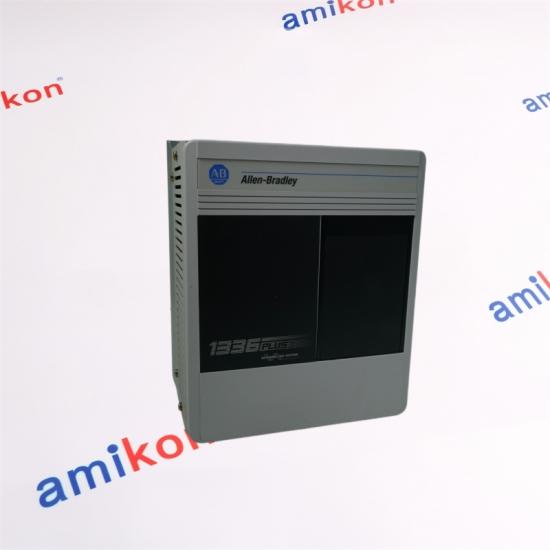

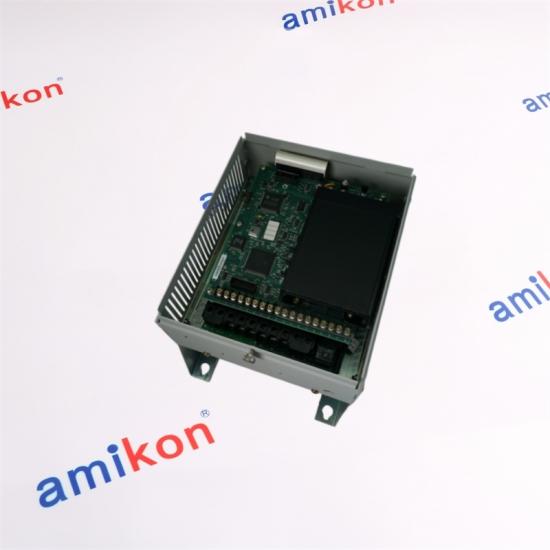

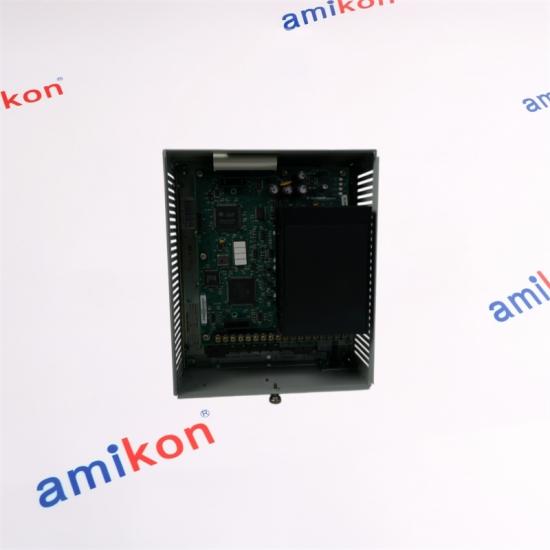

The 1336F-BRF50-AA-EN is a versatile adjustable frequency AC drive created by Allen Bradley, belonging to the 1336 PLUS II Drives series. This drive supports AC voltage ratings of 380 to 480 VAC and also functions with DC voltage within the limits of 513 to 620 VDC. It is rated for a power output of 3.7 kW, catering to a variety of motor control requirements in an industrial setting.
Designed with an IP20 protection rating, it provides adequate safeguarding against non-hazardous environments. The enclosure type conforms to NEMA 1 standards, ideal for indoor installations where exposure to harsh conditions is limited. This device is programmed for English language interaction.
Operating temperature specifications allow this drive to function effectively between 0°C and 40°C, accommodating typical industrial climate conditions. Additionally, for storage, it withstands temperatures from -40°C to 70°C, allowing flexibility in various storage environments. The 1336F-BRF50-AA-EN can operate in relative humidity levels ranging from 5% to 95% as long as conditions do not cause condensation.
This drive displays remarkable durability capabilities including shock resistance rated at 15G peak for an 11 ms duration, ensuring reliability during high vibration or impact scenarios. Vibration resilience is also notable, with a displacement tolerance of 0.006 inches (0.152 mm) at 1G peak, providing confidence in its ability to perform steadily under operational challenges.
Technical specifications
|
Manufacturer |
Allen Bradley |
|
Product Type |
Adjustable Frequency AC Drive |
|
Product Line |
1336 PLUS II Drives |
|
Part Number |
1336F-BRF50-AA-EN |
|
Weight |
11.50 lbs (5.22 kg) |
|
Voltage Rating (AC) |
380-480 VAC |
|
Voltage Rating (DC) |
513-620 VDC |
|
Power Rating |
3.7 kW |
|
IP Protection |
IP20 |
|
Enclosure Type |
NEMA 1 |
|
Language Group |
English |
|
Minimum Operating Temperature |
0°C |
|
Maximum Operating Temperature |
40°C |
|
Minimum Storage Temperature |
-40°C |
|
Maximum Storage Temperature |
70°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
FAQ
|
Question: |
How does the AB 1336F-BRF50-AA-EN achieve superior motor control accuracy across variable-speed industrial applications? |
|
Anwser: |
The AB 1336F-BRF50-AA-EN utilizes advanced adjustable frequency drive technology to deliver precise speed regulation, optimized torque performance, and smooth acceleration and deceleration, making it ideal for demanding industrial automation systems. |
|
Question: |
Which engineering criteria should be thoroughly assessed before deploying the AB 1336F-BRF50-AA-EN in a production environment? |
|
Anwser: |
Before commissioning the AB 1336F-BRF50-AA-EN, engineers should evaluate input voltage compatibility, motor power requirements, enclosure classification, ambient operating conditions, cooling requirements, wiring integrity, and parameter configuration to ensure reliable long-term performance. |
|
Question: |
Why is the AB 1336F-BRF50-AA-EN recognized as a robust solution for mission-critical AC drive applications? |
|
Anwser: |
The AB 1336F-BRF50-AA-EN incorporates sophisticated motor control algorithms, programmable operating parameters, and integrated protective functions that enhance process stability, improve energy efficiency, and maximize equipment availability. |
|
Question: |
What embedded protective capabilities distinguish the AB 1336F-BRF50-AA-EN from conventional motor drive solutions? |
|
Anwser: |
The AB 1336F-BRF50-AA-EN features comprehensive protection mechanisms, including overload protection, overcurrent detection, overvoltage and undervoltage monitoring, thermal protection, and fault diagnostics to safeguard both the drive and the connected motor under abnormal operating conditions. |
|
Question: |
In which industrial processes does the AB 1336F-BRF50-AA-EN provide the greatest operational and economic benefits? |
|
Anwser: |
The AB 1336F-BRF50-AA-EN is extensively applied in conveyors, pumps, fans, compressors, mixers, and material handling equipment across manufacturing, water treatment, mining, food processing, and other continuous-process industries where precise speed control and dependable motor operation are essential. |
