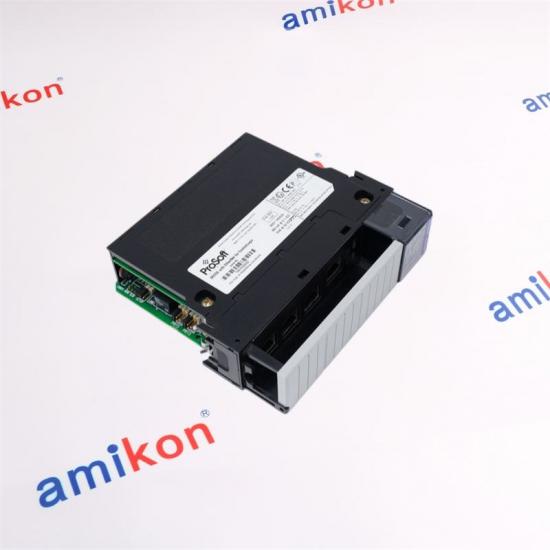

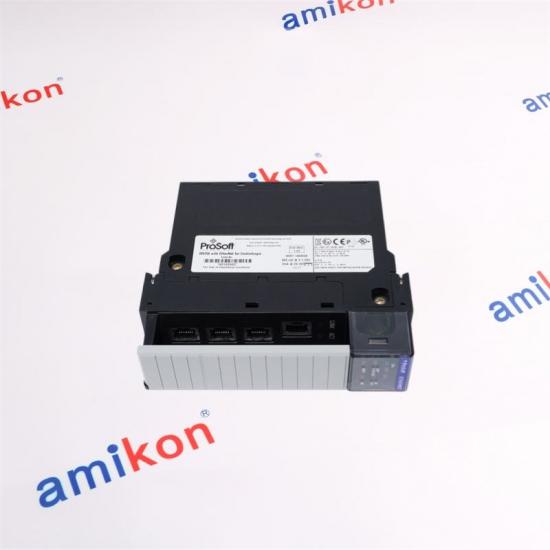

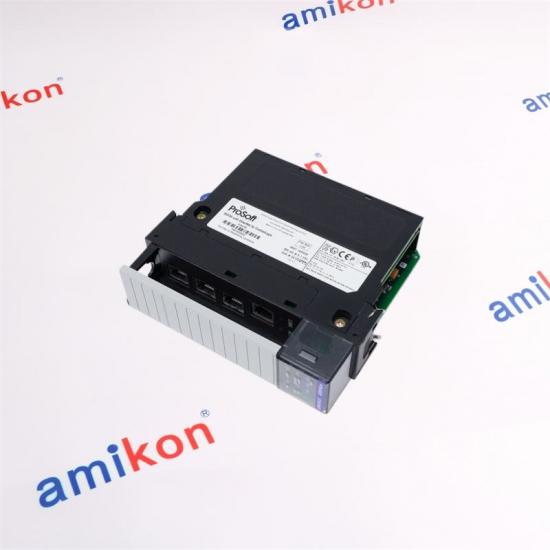

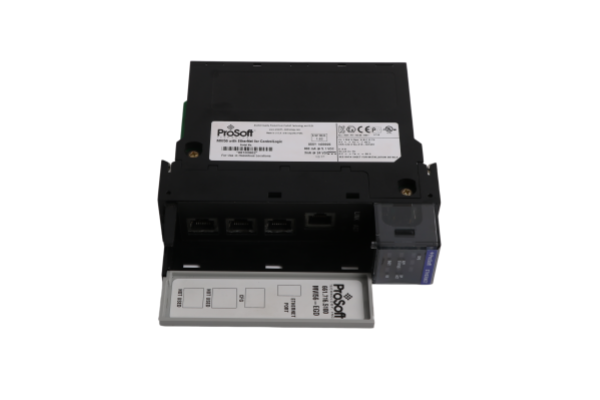

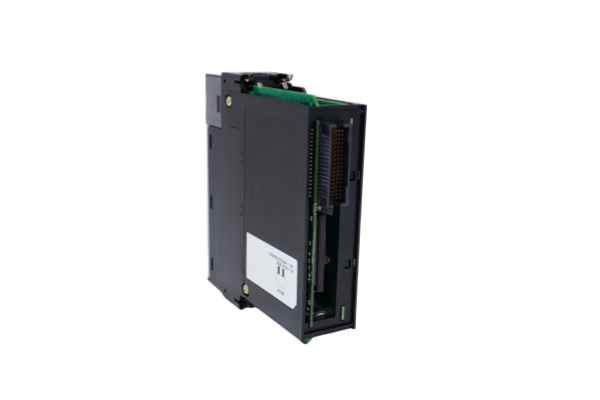

PROSOFT MVI56-EGD GE Ethernet Global Data Communication Module

MVI56-EGD

GE Ethernet Global Data communication inside a ControlLogix rack.

The module transfers data between the ControlLogix backplane and compatible GE EGD nodes over Ethernet. It supports configured producer and consumer exchanges, an EGD command server, multicast communication and SNTP options.

How it is used

Add the supplied ladder logic or Add-On Instruction, set Ethernet and EGD exchanges in ProSoft Configuration Builder, download, then verify status and diagnostics.

ControlLogix and GE EGD data integration

Use MVI56-EGD where a ControlLogix controller must produce or consume EGD exchanges with compatible Ethernet devices, while retaining module diagnostics and network configuration within the ProSoft workflow.

Questions, clearly answered

A ControlLogix communication module for GE Ethernet Global Data devices.

Use ProSoft Configuration Builder for module, Ethernet, exchange, multicast and SNTP settings.

Yes. The official manual covers both producer and consumer EGD exchanges.

It occupies one ControlLogix slot and can be used in a local or remote rack with the required path.

Review module and Ethernet LEDs, status data, and the diagnostic window in ProSoft Configuration Builder.

Request MVI56-EGD pricing

Ask Miya Zheng about stock, lead time and quotation support.
