MACHINERY CONDITION MONITORING
84510-33
Armored Interconnect Cable

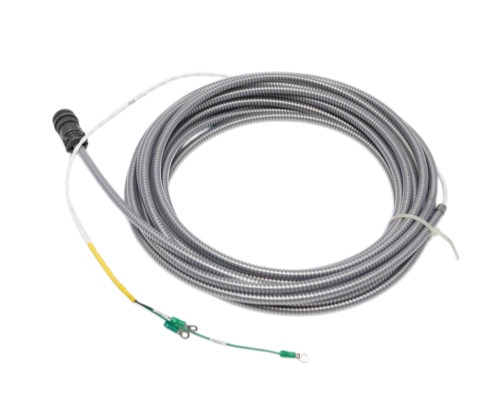

A 2-wire shielded armored cable configuration for Bently Nevada 9200 and 74712 Seismoprobe velocity transducer systems. The 84510 series uses a 22 AWG (0.5 mm²) construction with a 2-socket female connector at one end and terminal lugs at the other.
|
BENTLY NEVADA · 84510 SERIES
|
|
PART NUMBER
84510-33
|
LENGTH
33 ft / 10 m
|
CONDUCTOR
2-Wire / 22 AWG
|
ARMOR
Shielded
|
|
ENGINEERED CONNECTION
Technical Specifications
|
84510 SERIES |
| Part Number | 84510-33 | Cable Family | 84510 |
| Cable Type | 2-wire shielded armored cable | Conductor | 22 AWG / 0.5 mm² |
| Nominal Length | 33 ft / approximately 10 m | Length Range | 3 ft to 70 ft for 84510 series |
| Transducer End | 2-socket moisture-resistant female connector | Monitor End | Terminal lugs |
| Operating Temperature | -50°C to +120°C | Primary Compatibility | 9200 / 74712 Seismoprobe systems |
|
CONNECTION ARCHITECTURE
Built for the Seismoprobe Signal Path
|
|
||||||||||||||||||||
|
FIELD APPLICATION
Where 84510-33 Matters
|
ROTATING MACHINERY
|
|
Typical System Position
The 84510-33 sits between a compatible Seismoprobe velocity transducer and the monitoring or data-acquisition side of the vibration measurement chain.
|
Common Search Trigger
It is commonly sought when an existing 9200 / 74712 installation has a damaged, aged, mechanically exposed, or electrically compromised interconnect and the original cable configuration needs to be restored.
|
Why Replacement Becomes Urgent
A failed signal path can interrupt reliable casing-vibration measurement. On critical rotating equipment, loss of a vibration channel can reduce monitoring coverage and complicate protection or diagnostic decisions.
|
|
MAINTENANCE SCENARIOS
When Engineers Start Looking for 84510-33
|
|
|
01 · Why does the “33” matter when ordering this cable?
The suffix identifies the 33 ft length variant, approximately 10 m. This matters when replacing an installed cable because a connector match alone does not confirm that the routing distance will be correct.
|
02 · Is 84510-33 a sensor or the connection between the sensor and monitor?
It is the interconnect cable, not the vibration transducer itself. The 84510 construction is intended to connect compatible 9200 or 74712 Seismoprobe transducers toward monitoring equipment.
|
|
03 · Why choose the armored 84510 construction instead of a basic cable?
The armored construction adds mechanical protection to the shielded two-wire signal path. This is particularly useful where cable routing is exposed to physical wear or demanding machinery-area conditions.
|
04 · What should be checked before placing an urgent replacement order?
Confirm the complete part number, required quantity, installed route length, compatible transducer, destination and required arrival date. For 84510-33 specifically, confirm that the 33 ft / approximately 10 m length matches the existing installation.
|
|
05 · What happens if the original vibration cable is unavailable during a maintenance window?
The immediate concern is not simply the cable itself but the continuity of the vibration measurement chain. If the interconnect cannot be restored, the associated casing or bearing-housing vibration channel may remain unavailable, which can complicate condition assessment and increase downtime exposure on critical equipment.
|
|
|
MOORE AUTOMATION LIMITED
More Reach. More Support. Less Downtime.
|
Connecting industrial automation parts
with customers around the world. |
Our service is built around responsive communication, coordinated order handling and practical support for difficult-to-source automation parts. A multilingual team works with customers across different regions, while dedicated order tracking helps keep each request moving clearly from quotation to delivery.
GLOBAL TEAM SUPPORT
|

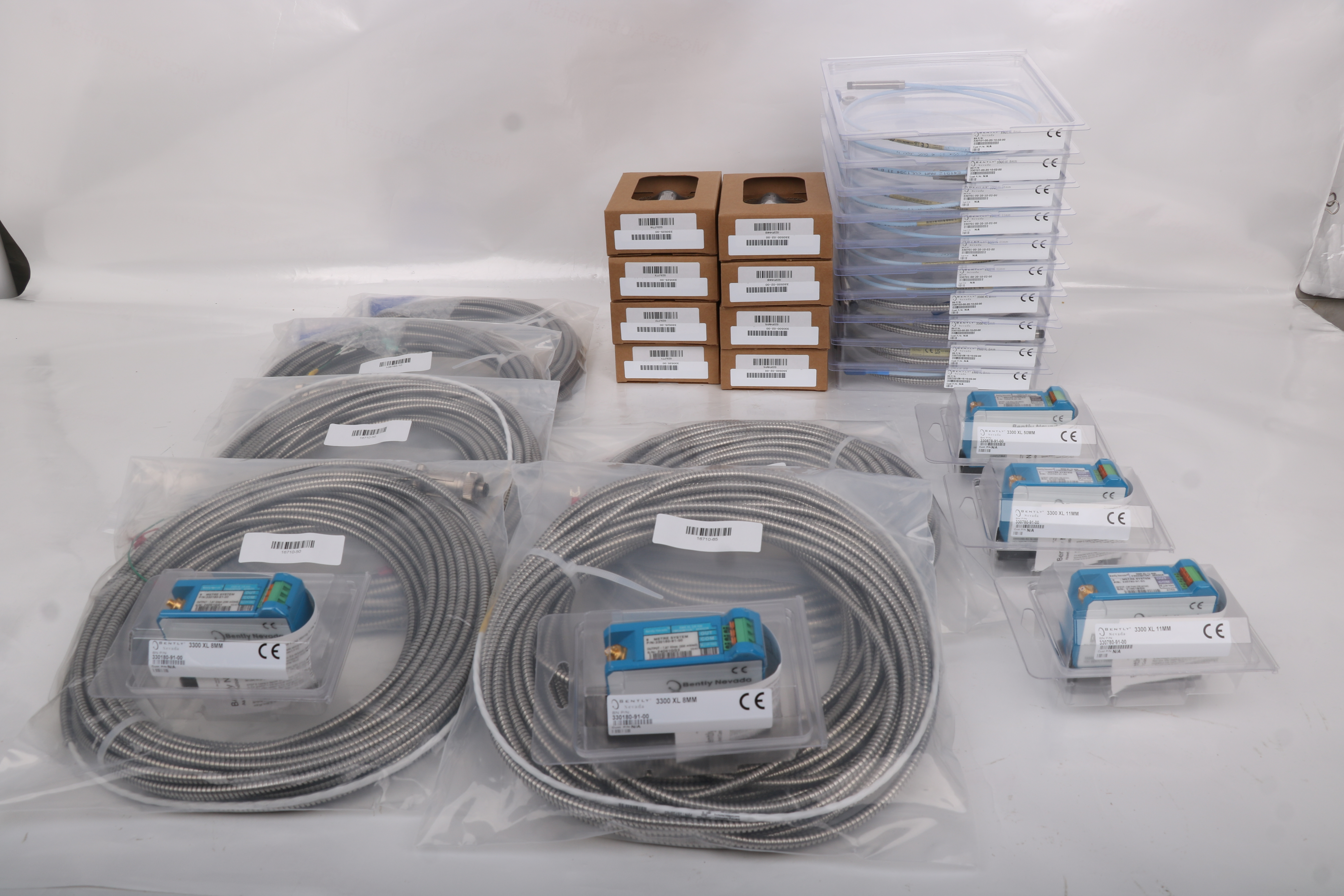

STOCK & ORDER COORDINATION
|
