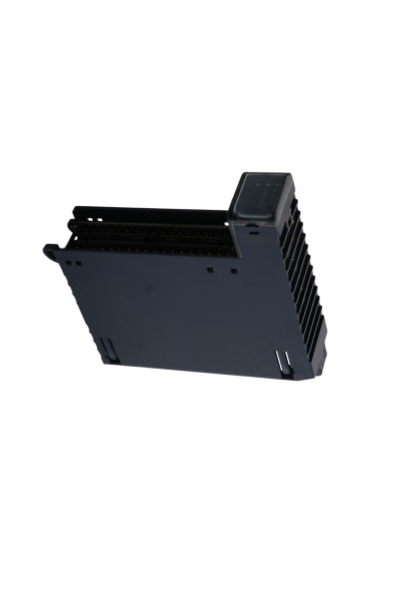

EMERSON IC695MDL664 16-Point Smart Digital Input Moudule

Calculate shipping

Quotation Request

PACSYSTEMS™ RX3i

IC695MDL664

Smart Digital
Input Module

CORE FUNCTION

16-Point Digital Input

Built for rack-based RX3i control architectures where dependable discrete signal acquisition and diagnostic capability matter.

KEY PARAMETERS

01	INPUT COUNT 16 Points Positive-logic digital inputs

02	INPUT VOLTAGE 24 VDC Operating range: 20–30 VDC

03	SIGNAL RESPONSE 0.5–100 ms Selectable ON/OFF timing

Advanced diagnostics · Rack-based RX3i I/O · Panel / DIN-rail mounting

READY TO CONNECT

Global Automation Support

sales@amikon.cn

PHONE / WHATSAPP

+86 180 2077 6792

SALES MANAGER

Miya zheng

KEEP YOUR
CONTROL SYSTEM
MOVING.

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

PACSystems RX3i

OVERVIEW DATA APPLICATION SERIES FAQ CONTACT

PACSystems™ RX3i / SMART DIGITAL INPUT

IC695MDL664

16-Point Smart Digital Input

24 VDC positive-logic input architecture with selectable filtering and advanced diagnostic capability for RX3i control systems.

POINTS

INPUT

24 VDC

LOGIC

POSITIVE

EMAIL SALES

RX3i / I/O

PRODUCT IDENTIFIER	RX3i
IC695MDL664

01 / CORE DATA

Technical Profile

Module Type	Smart Digital Input
Input Points	16 points / two groups of eight
Nominal Voltage	24 VDC
Voltage Range	20–30 VDC

Logic	Positive Logic
Filter	0.5–100 ms selectable
Input Current	12.2 mA nominal
Power Consumption	225 mA @ 5 VDC / 95 mA @ 3.3 VDC

02 / FIELD USE

Where IC695MDL664 Matters

FIELD SIGNALS

Designed around discrete field status

The 16 inputs can interface with devices such as pushbuttons, limit switches and electronic proximity switches. Two groups of eight provide isolated common connections for field wiring.

PUSHBUTTONS

LIMIT SWITCHES

PROXIMITY

FAULT SEARCH

Why a replacement may become urgent

When an RX3i machine suddenly loses a field status, troubleshooting can move toward the input module, terminal connection, field supply or associated sensor circuit. Diagnostic capabilities help technicians narrow the search instead of treating every missing signal as a controller fault.

1	Unexpected input state or missing field signal
2	Terminal or field-power condition affecting a channel group
3	A failed input channel can prevent expected permissives, interlocks or sequence states from reaching the PLC

PURCHASING CONTACT

Need IC695MDL664?

EMAIL SALES

Sales manager: Miya zheng

03 / RELATED RX3i

Same-Family Options

Related RX3i discrete I/O models for different point counts, voltage ranges and signal characteristics.

16-POINT INPUT

IC694MDL646

24 VDC • Fast input • Positive / negative logic

32-POINT INPUT

IC694MDL655

24 VDC • 32-point discrete input

32-POINT INPUT

IC694MDL660

24 VDC • High-density discrete input

SMART OUTPUT

IC695MDL765

16-point smart digital output family

IC695MDL664 position: 16-point smart digital input with advanced diagnostics, positive logic and selectable 0.5–100 ms filtering.

04 / GLOBAL AUTOMATION PARTNER

Automation Support Without Borders

GLOBAL TEAM

A global automation partner built around practical response. AMIKON works with customers across international markets and keeps the purchasing process focused on the exact part required for the operating system. The goal is simple: reduce the waiting time between a failed automation component and the next production decision. Our team supports international communication and handles industrial automation requirements across multiple regions. Strong logistics coordination allows orders to move through established express channels, while the commercial team remains open to urgent replacement requirements and hard-to-source automation components.

WAREHOUSE

The service model is designed for customers who need a specific automation part rather than a long purchasing cycle. Global shipping is available, with a target of dispatching orders within 24 hours when the required item and order conditions allow. Parts can be arranged for international delivery through E-packing, FedEx, EMS, TNT, DHL or UPS.

CUSTOMER COOPERATION

For quotation requests, please provide the Part Number, Quantity, Destination, Required Date and Machine/System. This helps the sales team identify the exact purchasing requirement before confirming the commercial arrangement.

SERVICE TERMS

Delivery: 3–5 days
Warranty: 12 months
Packaging: New

PAYMENT & DELIVERY

Payment: T/T
Delivery: E-packing / FedEx / EMS / TNT / DHL / UPS

05 / BUYER QUESTIONS

IC695MDL664 FAQ

01 Why is IC695MDL664 a better match when the RX3i application needs diagnostic input capability?

IC695MDL664 is a Smart Digital Input module with advanced diagnostics rather than a basic discrete-input design. Its diagnostic functions can help distinguish field-side conditions from a simple loss of expected input status.

02 What should be checked before replacing IC695MDL664 in an operating RX3i rack?

Confirm the 24 VDC field supply, channel wiring, terminal connection and the expected input state. The module uses two groups of eight inputs, so the field-side arrangement should also be checked at the appropriate common connection before replacing the module.

03 How does the IC695MDL664 filter setting affect troubleshooting?

The input filter can be selected from 0.5 ms to 100 ms. A setting that is too aggressive for the actual signal can affect the observed response of a field device, so the configured filter value should be considered when diagnosing intermittent or timing-sensitive input behavior.

04 Which field devices make IC695MDL664 especially relevant during a replacement search?

Typical compatible signal sources include pushbuttons, limit switches and electronic proximity switches. These devices can represent machine position, permissives, interlocks or operator commands, so a failed input path can affect the sequence controlled by the RX3i application.

05 Why can an IC695MDL664 failure become a production-critical replacement?

If a required discrete signal no longer reaches the PLC correctly, the control sequence may lose a permissive, interlock or position condition. The resulting machine response depends on the application, but an unavailable input module can extend troubleshooting and increase downtime while the failed signal path is isolated.

REPLACEMENT CHECK

Match the exact part number, required quantity, machine/system and required date when requesting IC695MDL664.

06 / RECOMMENDED MODELS

More Automation Parts

P74F-4AC-PAB

VQ4600-5W1-Q

LPS-RK-100SP

8718L-08S-21RO

RFPT-16 CT 1.1250-18

ST3146707LC

SRN140-3R16-125W

R215.2-340

61-3359

SK-91198

LAC2VEG

STP-MTR-17040W

CA-DC60E

1089-0708-01

D2T-H18

994061001

EML100-34

CMK-D1.25-A-W1.25

E12979817

926169-10C

DNA-040K-22B

4-HESI 5X20

F3000-10-W-FMY

LR-1/8-D-7-I-MINI

EVO-05-LID

TS471ST

PIM60.121

1201-122507-002

QUOTATION REQUEST

Ready to check IC695MDL664?

Please send the exact Part Number, Quantity, Destination, Required Date and Machine/System.

EMAIL: SALES@AMIKON.CN

WHATSAPP: 86-18020776792

RETURN / REPLACEMENT

Contact us within 7 days of receipt if an issue is found.
Returned items should remain in their original condition with the reason for return stated.
A return or replacement can be arranged after the returned item is received and checked.
Return shipping costs are the buyer's responsibility.
