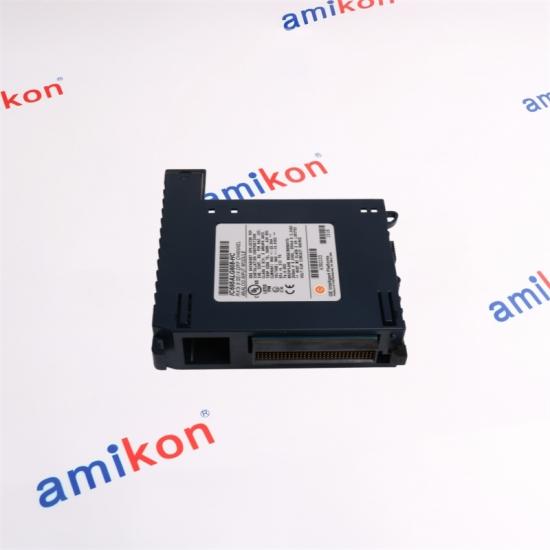

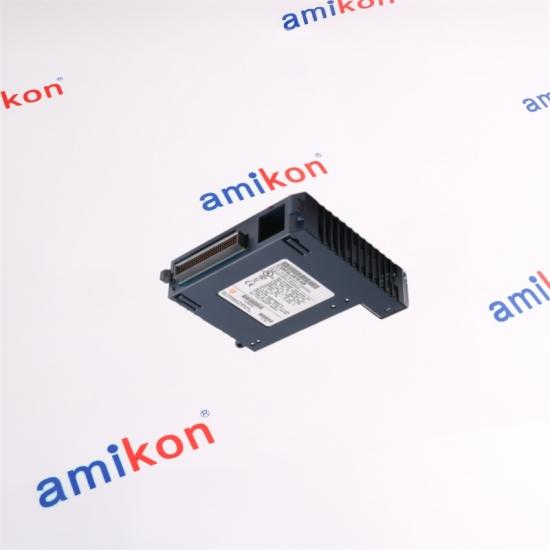

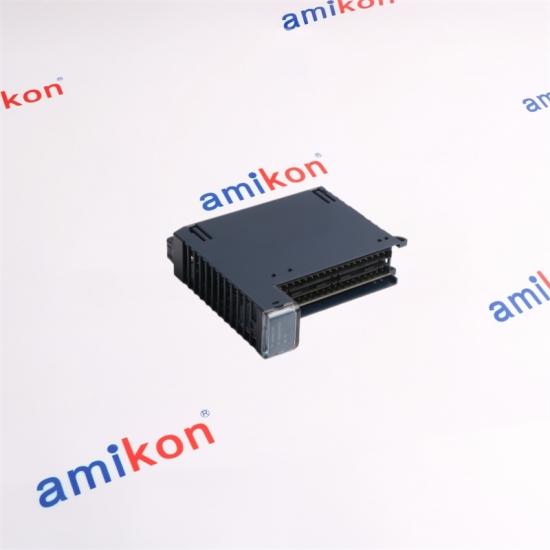

RX3i DISCRETE INPUT MODULE
IC695MDL660
32-Point · 24 VDC · Digital Input
A compact discrete-input solution for PACSystems RX3i control architectures, supporting positive or negative logic and selectable input response timing.
|
CORE CONFIGURATION
Input count 32 points
Nominal voltage 24 VDC
Logic Positive / Negative
Response 0.5–100 ms
|
|
TECHNICAL PROFILE
IC695MDL660
Designed for discrete signal acquisition within the PACSystems RX3i platform, the module provides 32 digital input points for 24 VDC field circuits. |
|
|
CONTROL-SYSTEM ROLE
Field signals in, control logic forward
IC695MDL660 is suited to RX3i architectures where discrete field devices must be brought into the controller as reliable ON/OFF states. Typical signals can include switches, interlocks, status contacts and other 24 VDC discrete devices.
|
WHEN REPLACEMENT BECOMES URGENT
A small I/O fault can stop a larger process
When an RX3i system loses a group of expected discrete states, maintenance teams may look for this module after checking field wiring, power and terminal connections. A failed input module can prevent the controller from receiving essential permissives, interlocks or equipment status signals.
|
|
RX3i FAMILY
Related models
Related PACSystems RX3i modules may be useful when matching an existing rack configuration, I/O architecture or replacement requirement. |
|
|
RFQ QUICK CHECK
Match the right module before ordering
Please include Part Number, Quantity, Destination, Required Date and Machine/System.
|
Sales Manager: Miya zheng
|
|
Why choose IC695MDL660 when a 32-point 24 VDC input replacement is required?
The key match is the existing RX3i architecture, 32-point capacity, 24 VDC field level and selectable response timing. Those characteristics make the module relevant when the installed application already depends on this I/O arrangement.
|
How does IC695MDL660 help when input signals are too slow or too sensitive?
Its selectable On/Off response range from 0.5 to 100 ms allows the input timing to be matched more closely to the field-device behavior, rather than relying on one fixed response setting.
|
|
What should be checked before ordering IC695MDL660 for an existing RX3i rack?
Confirm the installed controller and rack architecture, the required number of discrete channels, 24 VDC field level, logic arrangement, terminal configuration and the exact part number shown on the existing module. These checks reduce the risk of an electrically or mechanically unsuitable replacement.
|
When would IC695MDL660 become a critical spare during plant operation?
It becomes particularly important when loss of discrete feedback can inhibit sequences, remove permissive conditions or prevent equipment status from reaching the controller. Keeping the correct replacement available can shorten troubleshooting and recovery time.
|
|
How can I avoid ordering the wrong IC695MDL660 revision or configuration?
Send the complete part number exactly as marked on the installed unit, together with the quantity, destination, required date and the machine or system where it is installed. This gives the sales team the practical details needed to verify the requested replacement before quotation.
|
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
CONDITION
Brand New
|
PAYMENT
T/T
|
|
