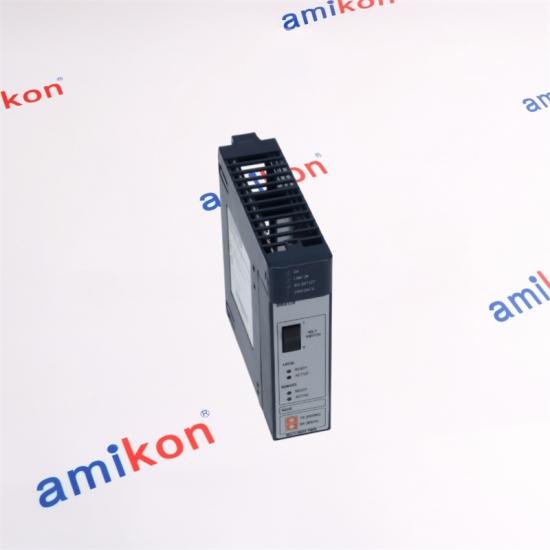

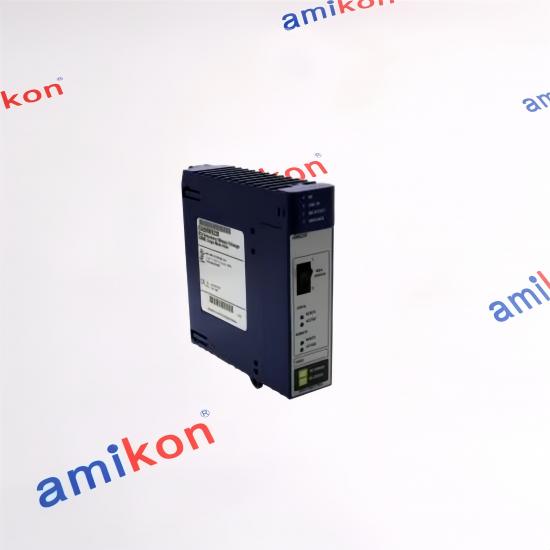

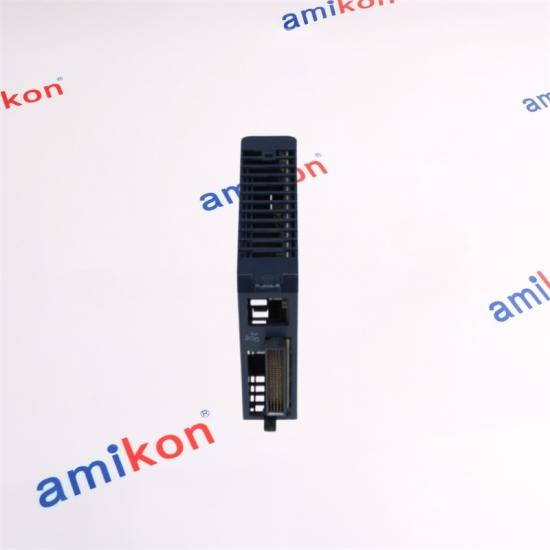

IC695RMX228 is intended for PACSystems RX3i architectures where high-speed reflective-memory communication and controller redundancy are required.
The module uses a single-mode fiber-optic network and operates without requiring RX3i CPU processing to operate the reflective-memory network.
Network parameters are configured through software rather than through conventional jumper or switch settings.
Single-Slot Form Factor Designed for RX3i Universal Backplanes.
Network Error Detection Supports monitoring of reflective-memory network conditions.
Redundant Transfer Mode Optional mode intended to reduce the chance of packet loss.
SAME-FAMILY MODELS
RX3i Memory Xchange Family
The RX3i Memory Xchange family provides closely related memory-exchange and redundancy functions. Selection is primarily driven by the required fiber type and the intended redundancy architecture.
IC695RMX228
Single-mode fiber
IC695RMX128
Multi-mode fiber
IC695CMX128
RX3i Memory Xchange module
IC698RMX016
Related RX-series redundancy platform
For fiber-network selection, verify the required optical mode before replacing an existing module. Single-mode and multi-mode interfaces should not be treated as direct substitutes without the appropriate network arrangement.
APPLICATION & FAILURE SCENARIO
Where IC695RMX228 Matters
Control Environment
Used in PACSystems RX3i control architectures where reflective memory and high availability are important to the controller-to-controller communication path.
Why It Gets Searched
Engineers typically look for this exact part when a redundancy link, optical memory network or existing RX3i high-availability installation requires replacement of the RMX228.
Downtime Exposure
A failed or unsuitable redundancy-memory module can compromise the intended controller communication path and may increase the risk associated with a controller or communication failure.
Replacement Check
Before ordering, match the existing part number, optical fiber mode, RX3i rack arrangement and redundancy configuration. This is particularly important when replacing an RMX228 with an RMX128 or another Memory Xchange module.
Not as a simple optical-interface substitution. RMX228 uses single-mode fiber, while RMX128 is the multi-mode version. The optical architecture must match the installed network.
What should be checked before ordering a replacement?
Confirm IC695RMX228, the single-mode fiber arrangement, RX3i Universal Backplane compatibility and the existing redundancy configuration.
Why is the 128 MB capacity important in a redundancy installation?
The module provides 128 MB SDRAM reflective memory for high-speed data exchange. The actual application capacity should still be evaluated against the configured architecture.
Does the module use a conventional copper Ethernet connection?
No. The RMX228 uses LC-type fiber-optic connections and a 2.12 Gbaud reflective-memory network rather than a conventional copper Ethernet interface.
What is the main operational risk if the correct replacement is not available?
In a high-availability RX3i architecture, the redundancy communication path is part of the protection strategy. An incorrect optical type or unsuitable replacement can prevent the intended redundancy arrangement from operating as designed, increasing exposure during controller or communication faults.
ORDERING SUPPORT
Send These Details
Part Number Quantity Destination Required Date Machine / System
ORDER TERMS
Supply Details
Delivery
3–5 Days
Warranty
12 Months
Packing
New
Delivery Way
E-packing / FedEx / EMS / TNT / DHL / UPS
Payment
T/T
AFTER-SALES
Return & Replacement
• Please contact us within 7 days after receiving the item if a problem occurs. • Returned items should remain in their original condition and include the reason for return. A return or replacement can be arranged after the returned item is received and checked. • Return shipping costs are the buyer's responsibility.
RELATED AUTOMATION PARTS
Recommended Models
IC695PNS101
IC695CMM002
IC695CMX128
IC754VKI06MTD
20F11NC072JA0NNNNN
20F11NC104JA0NNNNN
20F1ANC170JA0NNNNN
6ES7512-1DK01-0AB0
6GK7243-1BX30-0XE0
6ES7136-6DC00-0CA0
CPA500-4530G
5A26458G04
DALIKNX4CH
PRO22ENC3
5000/TCP
5X00106G01
DM04D01KNX
HMIS85 HMIS5T
CN1000NEO
SDEC-3000 BLU-16
900-DVI
3500/42M 140734-01H
SDL350
MI-320-1-EL
PC-1200
1763-L16BWA
DSE 5310
24701-34-05-00-041-03-02
330105-02-12-90-12-00
177313-02-02-00
162381-078-027-50-05
162381-064-028-50-05
GLOBAL AUTOMATION SUPPORT
A Practical Partner for Hard-to-Find Parts
Global supply coverage, responsive communication and access to difficult-to-source automation components help maintenance teams keep critical projects moving.
GLOBAL TEAM
Multilingual business support for international customers.

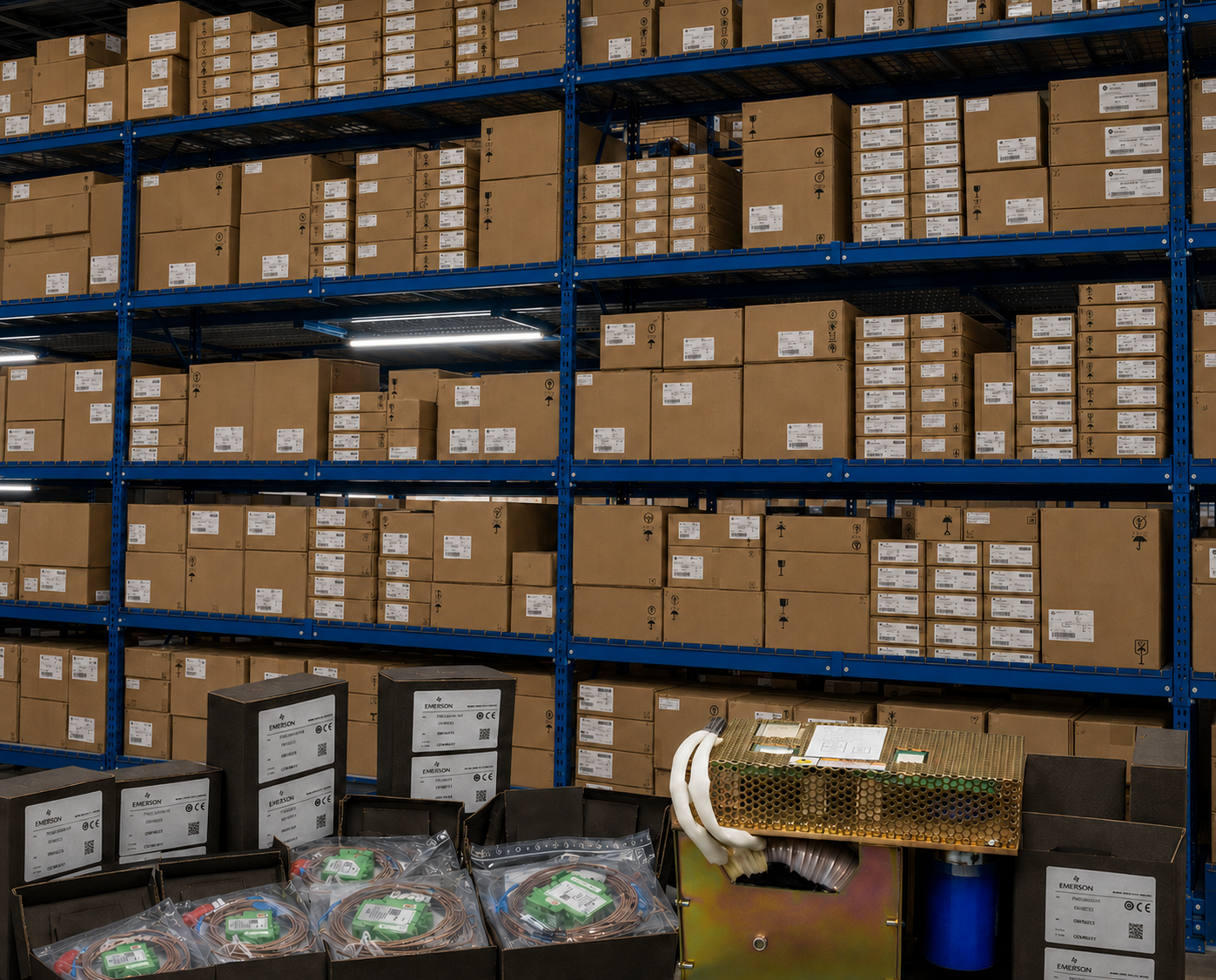

WAREHOUSE & SUPPLY
