PACSYSTEMS RX3i

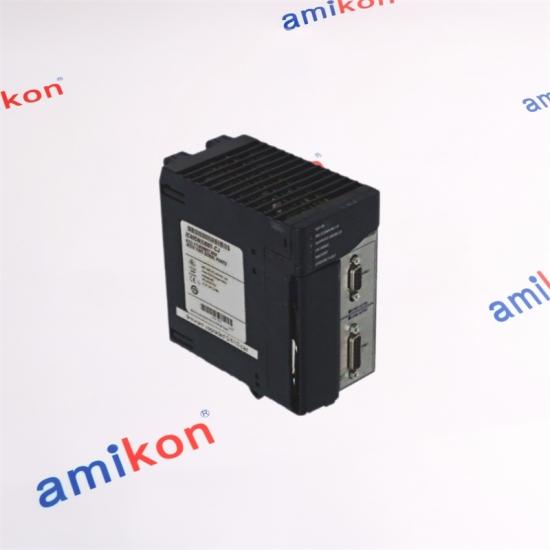

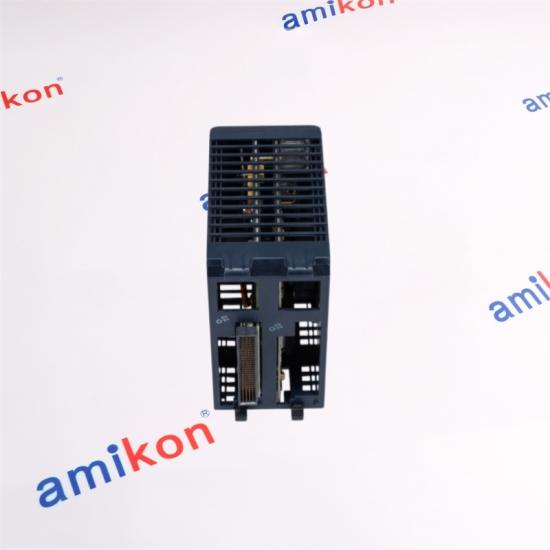

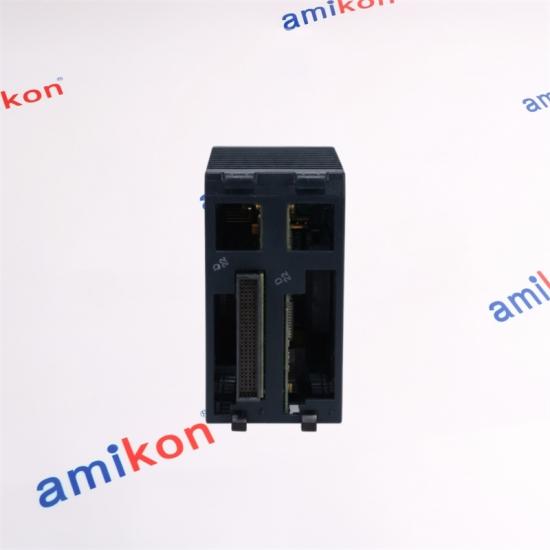

IC695NIU001Ethernet Network Interface Unit
A PACSystems RX3i Ethernet NIU designed to place RX3i and Series 90-30 I/O on an Ethernet network, with automatic data exchange and controller status reporting. |
QUICK PROFILE
|
|
NEED IC695NIU001?
Send the exact requirement for a faster quotation.
Part Number · Quantity · Destination · Required Date · Machine/System
|
SEND INQUIRY |
|
TECHNICAL PROFILE
Built for distributed
|
|
|
REMOTE I/O ROLE
Where IC695NIU001 fitsAn RX3i Ethernet NIU station can combine an RX3i universal backplane, power supply, the IC695NIU001, Ethernet modules and compatible I/O modules. Series 90-30 expansion backplanes can also be used where applicable. |
When replacement becomes urgent
A failed NIU can interrupt the remote I/O communication path. In a running production station, loss of that path can prevent the controller from receiving or exchanging expected I/O data, making rapid replacement important where the affected station is part of the machine control chain.
|
|
RX3i FAMILY
Related PACSystems modulesThe IC695NIU001 operates within the broader RX3i architecture. Commonly associated modules include Ethernet communication, controller and power-supply components. |
|
|
LOCAL LOGIC
Optional local logic capability
|
MEMORY
Battery-backed data storage and flash storage
|
CLOCK
Battery-backed calendar clock
|
UPGRADE
In-system firmware upgrade capability
|
|
Can the IC695NIU001 replace the role of a PLC CPU in a remote rack?
It functions as the Ethernet NIU for a remote I/O station rather than as the main control CPU. The controller remains responsible for application control while the NIU handles the remote I/O network role.
|
Why is this module searched for during an Ethernet I/O fault?
Because the IC695NIU001 forms the Ethernet interface for the remote I/O station. A failed NIU can affect the communication path between the controller and that station.
|
|
Does the unit support legacy Series 90-30 I/O architecture?
Yes. The architecture supports PACSystems RX3i and Series 90-30 I/O remotely over Ethernet, including 90-30-style serial backplane support.
|
What should be checked before ordering a replacement?
Confirm the complete part number, installed hardware revision, station architecture, required quantity and the machine/system where the unit is installed. Matching the existing configuration reduces replacement risk.
|
|
What happens if the NIU fails while production is running?
The impact depends on the role of the affected remote I/O station. If that station carries critical machine signals, loss of the Ethernet I/O path can interrupt control or monitoring functions and may contribute to production downtime until communication is restored.
|
|
|
