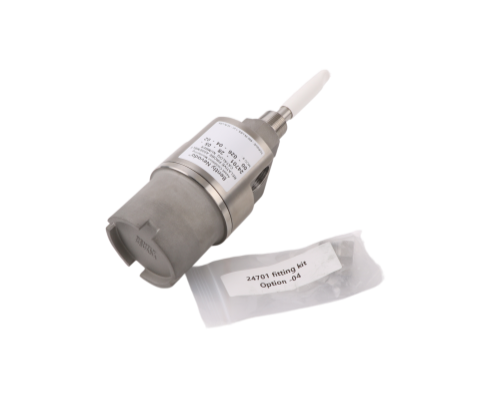

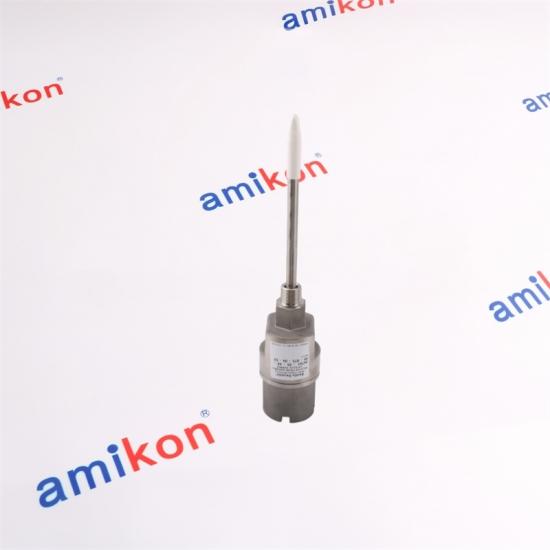

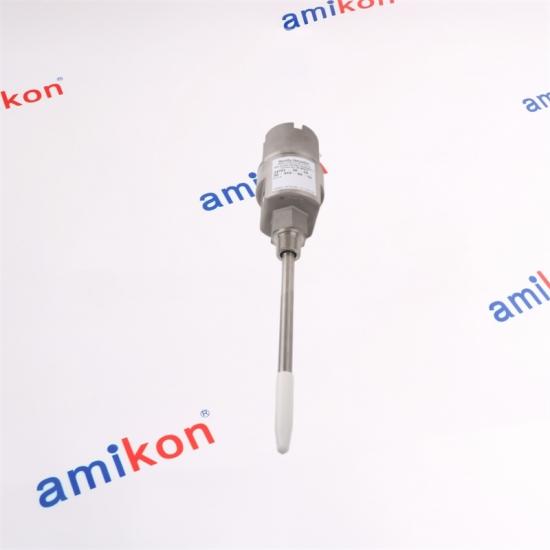

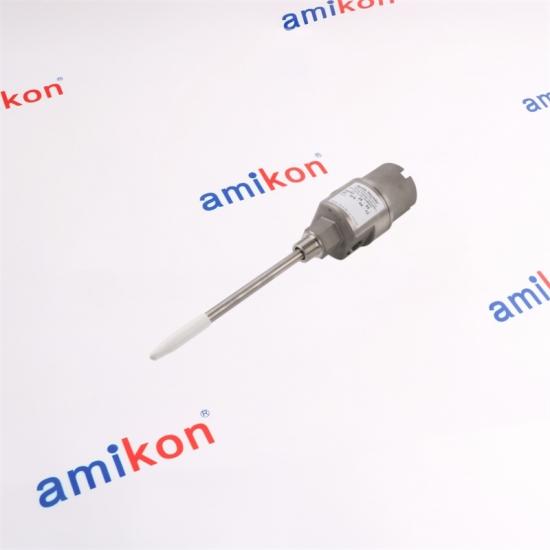

BENTLY NEVADA 24701-34-05-00-041-03-02 Stainless Steel Proximity Probe Housing Assembly
| Product Series | 24701 Proximity Probe Housing Assembly |
| Housing Material | Stainless steel |
| Probe Option | 3300 XL 8 mm probe with connector protector and approval option |
| Probe Cable Length | 0.5 m / 20 in |
| Standoff Adapter | None |
| Probe Penetration | 4.1 in nominal option |
| Fittings | Cable seal grip arrangement with associated conduit fittings |
| Mounting Thread | 3/4-14 NPT |
| Series | Probe | Cable | Standoff | Penetration | Fittings | Thread |
| 24701 | 34 | 05 | 00 | 041 | 03 | 02 |
|
Temperature
The housing assembly is used with compatible proximity probes whose environmental temperature limits must be respected during installation and operation. |
Mechanical Support
Long probe penetration arrangements require attention to sleeve support to reduce resonance associated with unsupported sleeve length. |
Mounting
The mounting thread and probe penetration should be matched to the machine case and the selected probe geometry. |
The 24701 assembly is intended for external mounting of proximity probes used within machinery condition-monitoring arrangements. It is particularly relevant where a protected, all-metal housing is required around a probe installation.
In rotating-equipment monitoring, a damaged housing, compromised cable sealing arrangement, mechanical impact or an incorrect mounting configuration can interrupt the measurement channel and make replacement of the housing assembly a maintenance priority.
| 01 |
Why does the exact 24701 configuration matter when replacing an existing housing?
Because the suffix defines the probe arrangement, cable length, penetration, fittings and mounting thread. A visually similar housing may not reproduce the same mechanical installation.
|
| 02 |
What should be checked before substituting another 24701 variant?
Verify the probe type, cable length, probe penetration, standoff requirement, fitting arrangement and mounting thread against the installed machine configuration.
|
| 03 |
When can probe penetration become a mechanical concern?
Long unsupported penetration can introduce resonance. The housing arrangement therefore needs to be selected with the actual machine geometry and required sleeve support in mind.
|
| 04 |
Is the 24701 housing itself the vibration sensing element?
No. The housing provides the mechanical mounting and environmental enclosure arrangement. The actual proximity measurement is performed by the compatible probe and transducer system.
|
| 05 |
What details should be supplied when requesting this exact part?
Provide the complete part number 24701-34-05-00-041-03-02, required quantity, destination, required date and machine/system application so the configuration can be checked before quotation.
|
|
