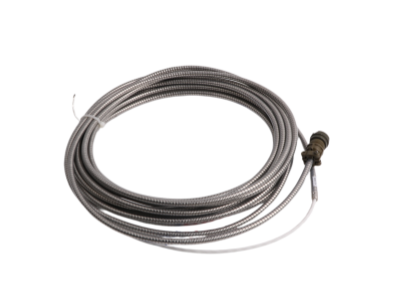

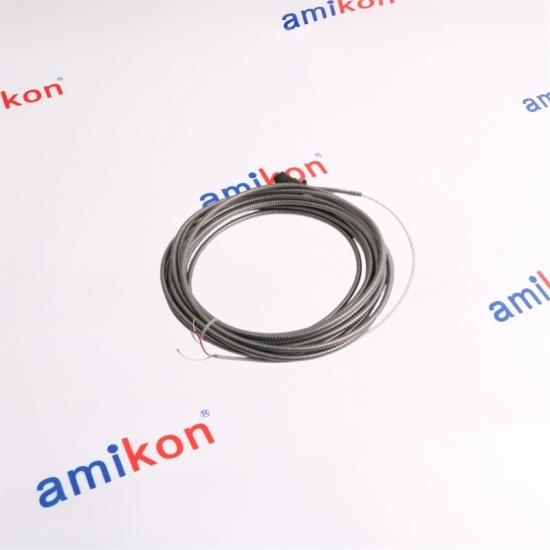

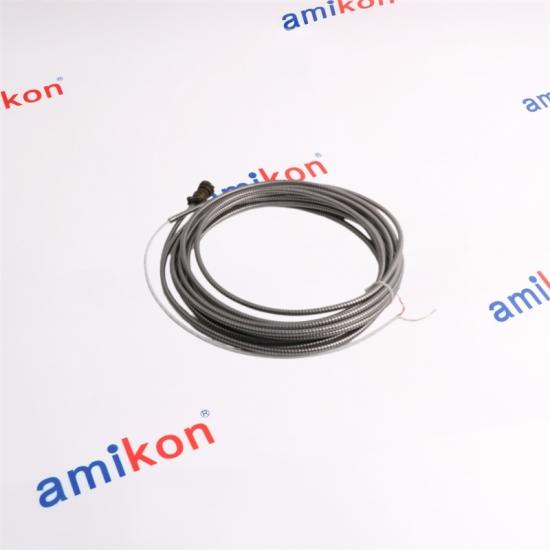

The 84661 series is a stainless-steel-armored interconnect cable for the High Temperature Velomitor System. The cable combines a shielded twisted-pair construction with a moisture-resistant female connector at the high-temperature sensor end and ring-lug termination at the monitor end.
| Part Number | 84661-34 |
| Cable Family | 84661-NN Standard Armored Interconnect Cable |
| Specified Length | 34 ft |
| Conductor Size | 0.382 mm² / 22 AWG |
| Armor | Stainless steel |
| HTVS End | Moisture-resistant female connector |
| Monitor End | Ring lugs |
| Temperature Range | −29°C to +121°C / −20°F to +250°F |
|
High Temperature
Velomitor
|
→ |
84661-34
34 ft armored cable
|
→ |
Monitor
Ring-lug termination
|
The 84661-34 is used as the interconnect path within the High Temperature Velomitor System. Its role is to carry the sensor signal between the high-temperature sensing arrangement and the monitoring equipment.
Cable damage, connector deterioration, moisture ingress, armor damage or an incorrect cable length can prevent the measurement channel from operating as intended.
For a maintenance replacement, matching the exact length and cable family is important because the suffix determines the required cable length.
| 01 |
How is the “34” in 84661-34 determined?
The 84661-NN ordering structure uses NN to specify the cable length in feet, so 84661-34 represents a 34 ft cable.
|
| 02 |
Why choose the armored 84661 construction instead of treating it as an ordinary signal cable?
The product is specifically constructed with stainless-steel armor over the shielded cable, providing a mechanically protected interconnect arrangement for the High Temperature Velomitor System.
|
| 03 |
What connector arrangement should be expected on an 84661-34?
The HTVS end uses a moisture-resistant female connector, while the monitor end uses ring lugs.
|
| 04 |
What operating temperature range is associated with the standard armored cable?
The standard armored interconnect cable is specified for −29°C to +121°C (−20°F to +250°F).
|
| 05 |
What should be checked if the existing 84661 cable is being replaced during a shutdown?
Confirm the complete part number, cable length, connection arrangement, machine/system, quantity and required date before ordering.
|
|
