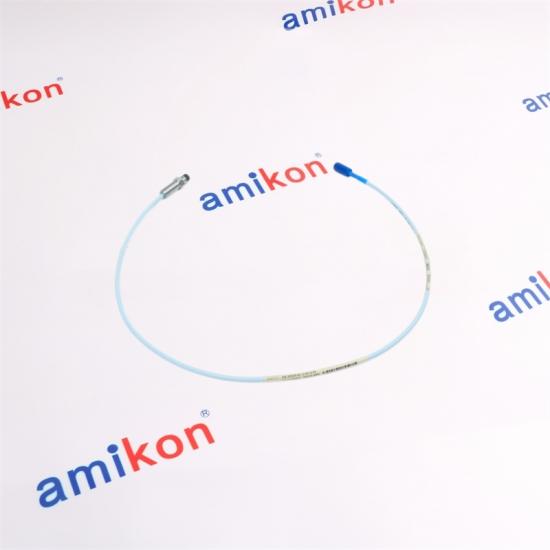

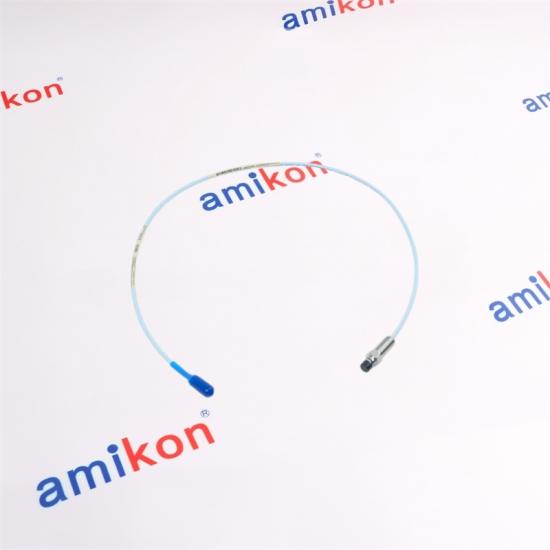

BENTLY NEVADA 330105-02-12-90-12-00 3300 XL 8 mm Reverse Mount Proximity Probe
The 3300 XL 8 mm proximity system provides non-contact measurement of the distance between the probe tip and a conductive target. The system supports both static position and dynamic vibration measurements and can also serve Keyphasor reference and speed measurement applications.
| Model | 330105-02-12-90-12-00 |
| Probe Family | 3300 XL 8 mm Proximity Probe |
| Mounting | Reverse mount, 3/8-24 UNF thread |
| Unthreaded Length | 0.2 in option |
| Overall Case Length Option | 1.2 in |
| Total Length | 9.0 m / 29.5 ft |
| Connector / Cable Option | Miniature coaxial ClickLoc connector with fluid-resistant protective armor |
| Agency Approval Option | No agency approvals required |
| System Linear Range | 2.0 mm / 80 mils, starting at 0.25 mm / 10 mils gap |
| Nominal Scale Factor | 7.87 V/mm / 200 mV/mil |
|
01
TipLoc Bonding
The probe design uses TipLoc molding to strengthen the bond between the probe tip and probe body. |
02
CableLoc Design
The cable attachment uses CableLoc construction with a specified 330 N (75 lbf) pull strength. |
03
ClickLoc Connector
Corrosion-resistant gold-plated ClickLoc connectors use a locking mechanism designed to resist loosening. |
|
Interchangeable System Architecture
The 3300 XL 8 mm system supports interchangeability between probes, extension cables and Proximitor Sensors within the applicable system configuration. |
Environmental Protection Options
Connector protectors and FluidLoc cable options are available within the 3300 XL family for applications requiring additional environmental protection. |
The 3300 XL 8 mm proximity system is intended for non-contact measurement on rotating machinery. Its primary applications include vibration and position measurement on fluid-film bearing machines, together with Keyphasor reference and speed measurement.
A failed or degraded proximity channel can affect the availability of shaft vibration or position measurements. During a shutdown, maintenance teams may therefore search for the exact probe configuration when a sensor channel needs restoration.
The exact suffix should be checked before replacement because probe length, connector arrangement, cable configuration and approval requirements are encoded within the complete part number.
| 01 |
Why is the complete 330105-02-12-90-12-00 number important instead of only ordering a 3300 XL 8 mm probe?
The complete number defines the mechanical and connection configuration. A different cable length, connector option or approval configuration can change whether the replacement matches the installed system.
|
| 02 |
What does the 90 option represent in this probe configuration?
The total-length option 90 corresponds to a 9.0 m (29.5 ft) total probe length.
|
| 03 |
What type of measurement is the 3300 XL 8 mm system intended to provide?
It provides non-contact distance measurement that can be used for static position and dynamic vibration measurements, as well as Keyphasor reference and speed measurements.
|
| 04 |
How does the long 9.0 m configuration affect replacement planning?
The total probe length must be compatible with the physical installation. Replacing it with a shorter configuration can leave insufficient cable reach, while a different configuration may not reproduce the original installation.
|
| 05 |
What should a customer provide when requesting a quotation for this exact probe?
Provide the complete part number, quantity, destination, required date and machine/system application. These details help verify the intended configuration before quotation.
|
|
