BENTLY NEVADA 330104-08-13-10-01-05 3300 XL Standard-mount 8 mm Proximity Probe
| BENTLY NEVADA | Overview Technical Application FAQ Contact |
|
MACHINERY CONDITION MONITORING

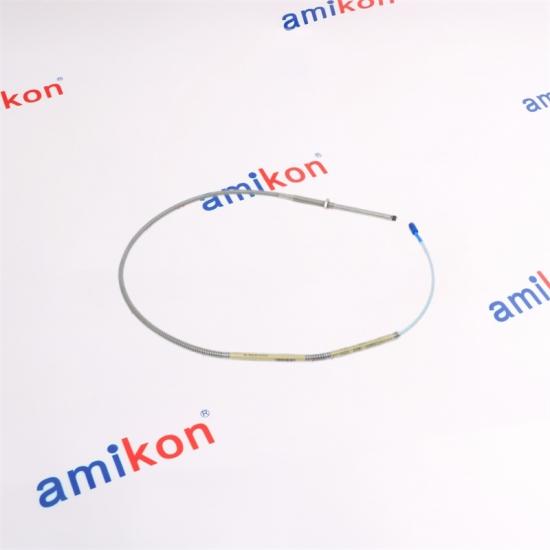

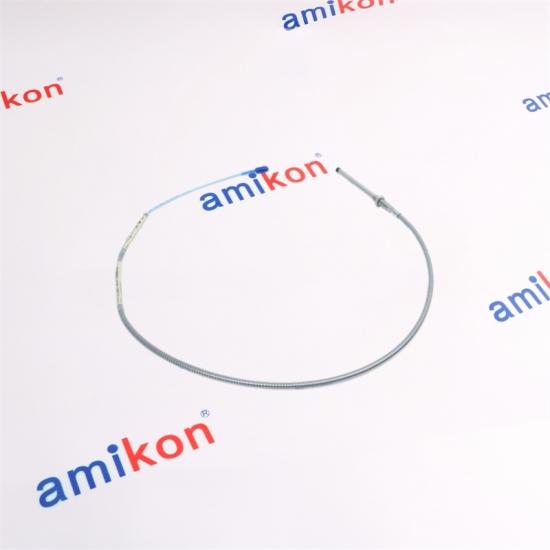

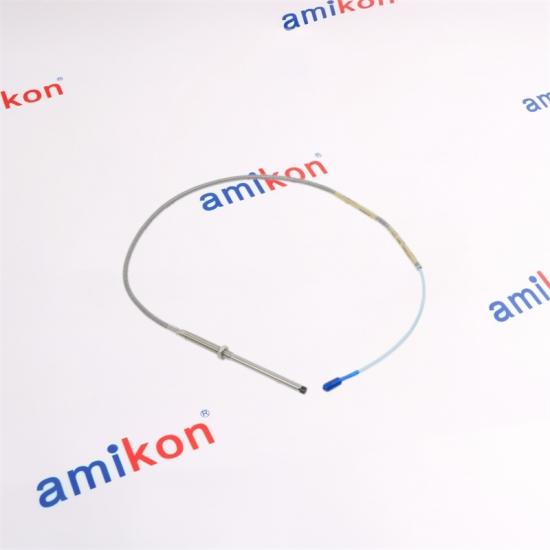

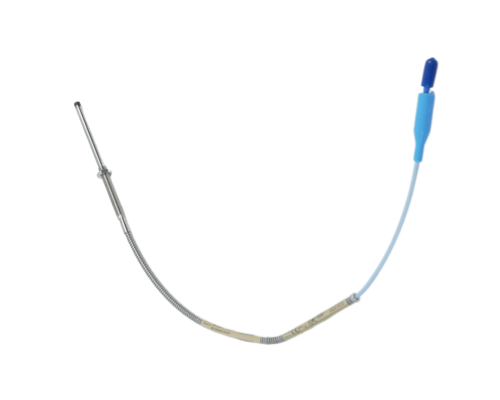

330104-08-13-10-01-053300 XL 8 mm Proximity ProbeA configured 3300 XL 8 mm probe for non-contact measurement of shaft displacement within a matched eddy-current proximity transducer system.
|
 |
|
PROBE FAMILY
3300 XL 8 mm |
MOUNTING
M10 × 1 |
TOTAL LENGTH
1.0 m |
LINEAR RANGE
2.0 mm |
| Probe configuration Standard-mount 8 mm proximity probe |
Unthreaded length 80 mm |
| Overall case length 130 mm |
Cable / connector 1.0 m standard cable with ClickLoc connector and connector protector |
| Incremental scale factor 7.87 V/mm nominal |
Frequency response 0 to 10 kHz, +0 / −3 dB |
| Recommended radial gap Approximately 1.27 mm |
Probe construction PPS probe tip with AISI 303/304 stainless-steel case |
|
FIELD APPLICATION
When the Channel Goes QuietThis probe is used where machinery monitoring depends on precise non-contact shaft displacement measurement. Typical duties include radial vibration and axial-position measurements on rotating machinery when the mechanical mounting arrangement and target geometry match the 3300 XL 8 mm system. A damaged probe, unstable gap, connector problem or incorrect replacement can interrupt the measurement loop. On machinery protected by vibration or position channels, loss of a valid channel can complicate condition assessment and may contribute to a controlled shutdown or extended maintenance window. |
|
|
01
Code Match
Confirm every ordering-code block.
|
02
Mechanical Fit
Check M10 × 1 mounting and case geometry.
|
03
Loop Match
Match the Proximitor Sensor and system length.
|
04
Gap Check
Set the operating point within the linear region.
|
| How can I avoid ordering the right probe family but the wrong mechanical version?
Match the complete 330104-08-13-10-01-05 code, including the 80 mm unthreaded section, 130 mm case, 1.0 m length and option blocks. |
| Will this probe work with an existing 3300 XL channel?
It must be paired with the compatible 3300 XL 8 mm Proximitor Sensor and the correct system-length arrangement. Check any extension cable before replacement. |
| What makes the complete ordering code important during an urgent shutdown?
Probe length, mounting geometry, connector arrangement and approval option can affect physical installation and system compatibility; the family number alone is not enough. |
| What signal performance should I expect from a correctly matched loop?
The 3300 XL 8 mm system has a nominal 7.87 V/mm incremental scale factor, a 2.0 mm linear range and 0–10 kHz frequency response. |
| Which details should I send when requesting a replacement quotation?
Send Part Number, Quantity, Destination, Required Date and Machine/System. A photo of the installed probe label is also useful when the ordering code is difficult to read. |
 |
 |
 |
