PROBE PROTECTION & INSTALLATION

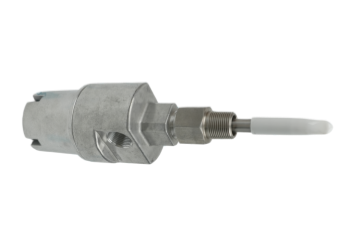

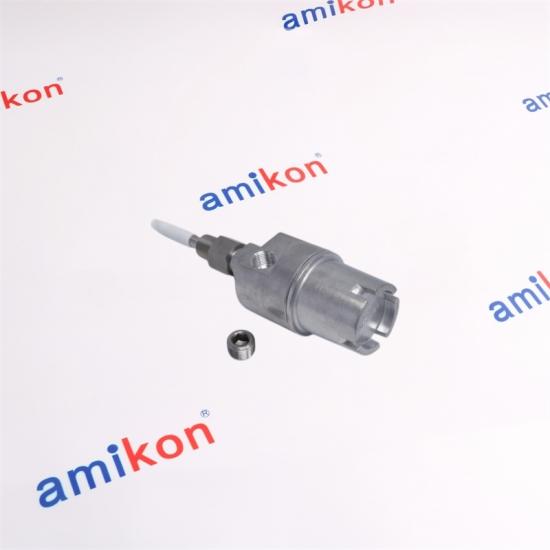

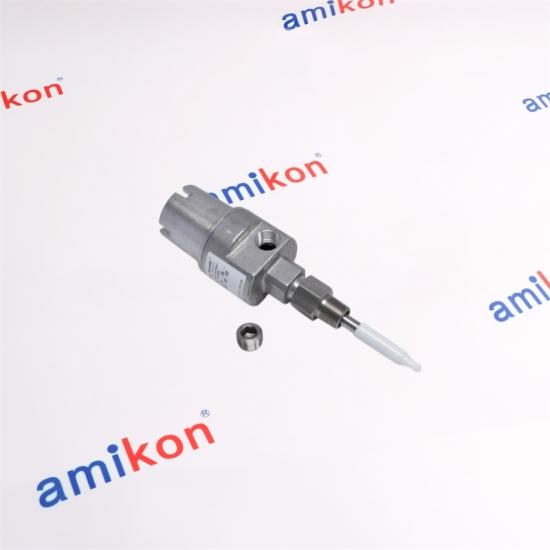

21000-34-05-00-056-04-02Proximity Probe Housing AssemblyA 21000-series housing assembly designed to provide a protected mounting arrangement for a proximity probe in industrial machinery monitoring applications.
|
 |
|
SERIES
21000 |
TYPE
Probe Housing |
APPLICATION
Machinery Monitoring |
CONFIGURATION
34-05-00-056-04-02 |
| Product family 21000 proximity probe housing assemblies |
Primary function Mechanical protection and controlled mounting of a proximity probe |
| System role Mechanical interface around a proximity measurement point |
Maintenance focus Housing integrity, sealing, probe position and conduit connection |
|
MACHINE-SIDE USE
Why the Housing MattersThe 21000 housing family is intended for installations where the proximity probe needs a defined mechanical mounting arrangement and environmental protection around the measurement point. During maintenance, a damaged housing, compromised sealing, loose conduit connection or displaced probe can become a mechanical cause of an unstable monitoring channel. On critical rotating equipment, an unavailable or unreliable measurement channel can delay fault confirmation and increase the time required to return the machine to protected operation. |
|
| Why should I match the complete 21000 code instead of only ordering a 21000 housing?
The full code defines the particular assembly configuration. Matching only the family can result in differences in probe arrangement, mounting geometry or connection details. |
| Can I transfer the existing probe into this housing?
Do not assume interchangeability. The housing, probe configuration, mechanical arrangement and monitoring system should be checked as one engineered installation. |
| What should I check if the monitoring channel becomes unstable after maintenance?
Inspect housing integrity, probe seating, sealing components, conduit connection, probe position and the associated monitoring loop before changing electronic settings. |
| Is the housing itself the sensing element?
No. The housing provides the mechanical installation and protection arrangement; the proximity probe performs the non-contact measurement. |
| What should I send for an urgent quotation?
Send Part Number, Quantity, Destination, Required Date and Machine/System. A clear photo of the installed housing and label can help verify the configuration. |
 |
 |
 |
We combine multilingual communication, customer coordination and order tracking to simplify difficult automation-part purchasing. Our goal is to help maintenance teams connect with the components they need while keeping purchasing communication clear and efficient.
Order EssentialsDelivery: 3–5 days Warranty: 12 months Packaging: Brand New Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS Payment term: T/T |
Return & ReplacementContact us within 7 days after receipt if any issue occurs. Returned items should remain in original condition with the return reason stated. Return or replacement handling begins after receipt of the returned item. Return shipping costs are the buyer's responsibility. |
|
DIRECT SALES DESK
Need the exact housing configuration?Send Part Number, Quantity, Destination, Required Date and Machine/System. |
Sales manager: Miya zheng Email: sales@amikon.cn Phone / WhatsApp: 86-18020776792 |
