PROBE HOUSING ASSEMBLY

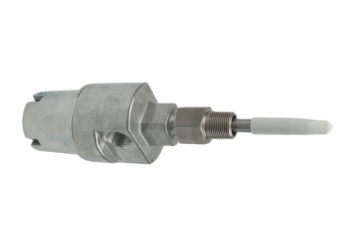

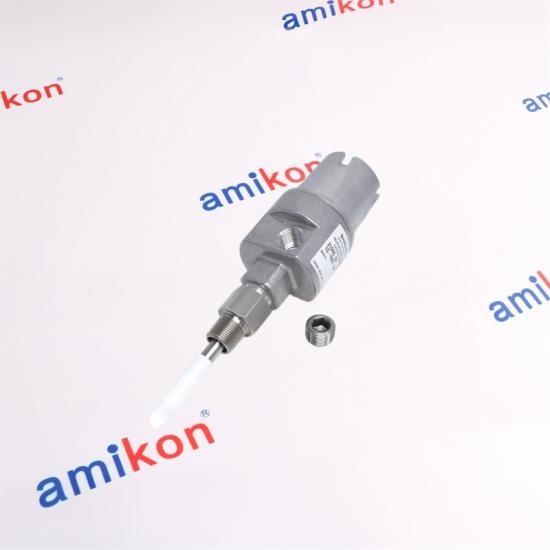

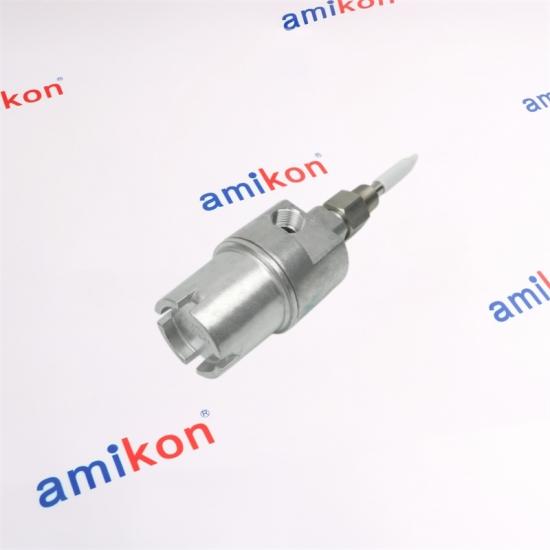

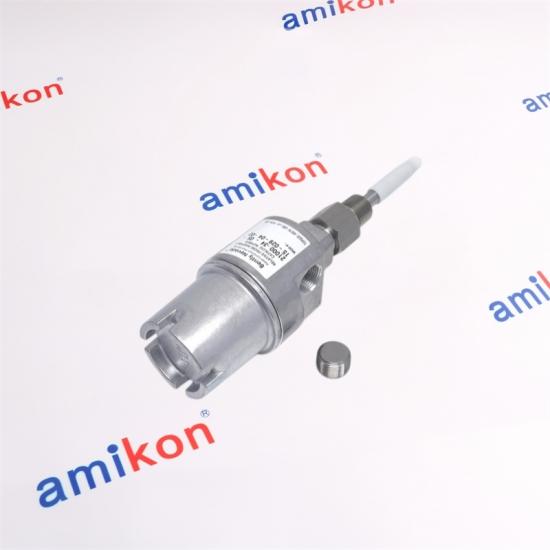

21000-34-05-00-015-04-0221000 Proximity Probe Housing AssemblyA configured 21000-series housing assembly incorporating a reverse-mounted proximity probe arrangement for machinery monitoring installations.
|
|
|
FAMILY
21000 |
ASSEMBLY
Probe Housing |
PROBE STYLE
Reverse Mount |
CODE
34-05-00-015-04-02 |
| Housing family 21000 proximity probe housing assembly |
Probe arrangement Reverse-mounted proximity probe |
| Housing structure Housing body with dome cap and threaded connection arrangement |
Sealing elements Probe sleeve, O-ring and threaded seal arrangement |
| Connection Threaded port for conduit connection |
System role Mechanical mounting and environmental protection around the probe |
|
MACHINE-SIDE APPLICATION
Built Around the Measurement PointThe 21000 housing family is used where a proximity probe needs controlled mechanical positioning and protection around a rotating-machinery measurement point. This particular configuration uses a reverse-mounted probe arrangement. When the housing, sealing arrangement or probe position is compromised, the associated monitoring channel may become unreliable. For critical machinery, that can delay diagnosis of vibration or position changes and increase the maintenance time needed before the equipment can return to normal protected operation. |
|
| Why is the reverse-mounted arrangement important?
It defines how the probe sits within the housing and therefore affects the mechanical installation. A visually similar housing is not automatically an equivalent replacement. |
| What components are part of this particular assembly?
The configured assembly includes the housing body, dome cap, conduit connection port, probe sleeve, O-ring, threaded seal and reverse-mounted proximity probe arrangement. |
| Could I replace only the probe and keep a damaged housing?
That depends on the mechanical condition and the engineered installation. If the housing or sealing interface is compromised, replacing only the sensing element may not restore the intended installation. |
| What symptoms can make this assembly part of a maintenance search?
A displaced probe, damaged housing, sealing concern, conduit issue or unstable proximity channel can lead maintenance teams to check the housing assembly. |
| What should I provide for exact configuration verification?
Provide Part Number, Quantity, Destination, Required Date and Machine/System. Photos of the housing, probe and identification marking are useful for matching the installed configuration. |
 |
 |
 |
Our multilingual support, customer coordination and order tracking are designed around the practical needs of industrial maintenance teams. We continue to strengthen our supply capability for difficult-to-source automation and machinery-monitoring components.
| ● Multilingual Support | ● Order Tracking | ● Clear Commercial Terms |
Order EssentialsDelivery: 3–5 days Warranty: 12 months Packaging: Brand New Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS Payment term: T/T |
Return & ReplacementContact us within 7 days after receipt if any issue occurs. Returned items should remain in original condition with the return reason stated. Return or replacement handling begins after receipt of the returned item. Return shipping costs are the buyer's responsibility. |
|
DIRECT SALES DESK
Need the exact 21000 configuration?Send Part Number, Quantity, Destination, Required Date and Machine/System. |
