PROSOFT MVI69L-MBTCP Modbus TCP/IP Lite Communication Module

Calculate shipping

Quotation Request

PROSOFT TECHNOLOGY · COMPACTLOGIX

MVI69L-MBTCP

Modbus TCP/IP Lite Communication Module

Connect CompactLogix L2 controllers with Modbus TCP/IP devices through Client and Server communications in one 1769 slot.

10 Clients2 Servers240 / 240 Words

WELCOME TO INQUIRE

Miya Zheng

✉ sales@amikon.cn ☎ +86 180 2077 6792

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

TECHNICAL DOSSIER · 1769

PROSOFT TECHNOLOGY

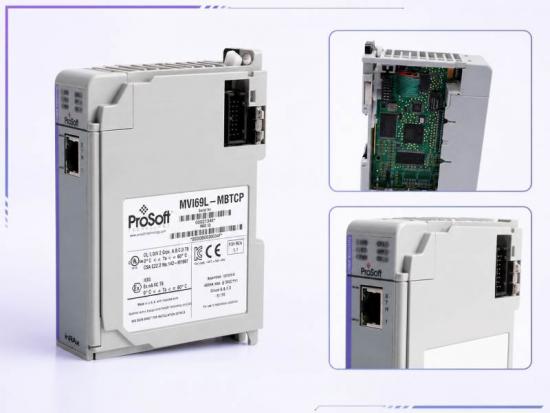

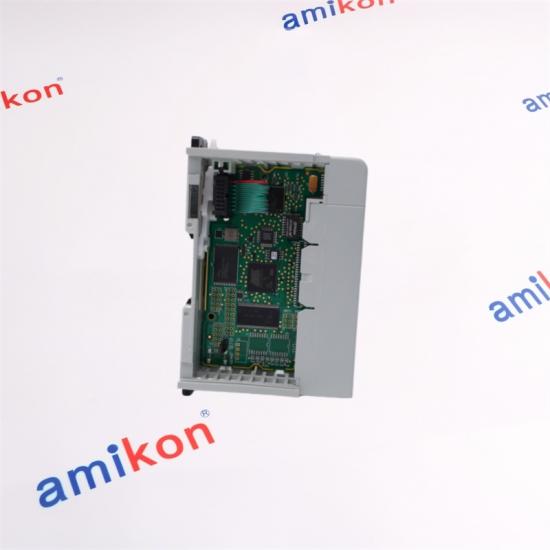

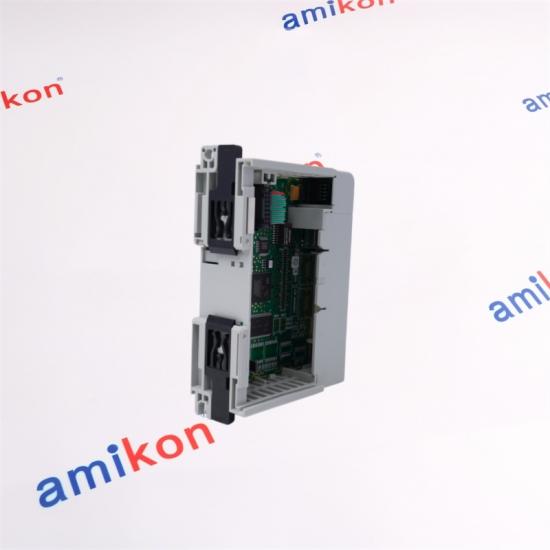

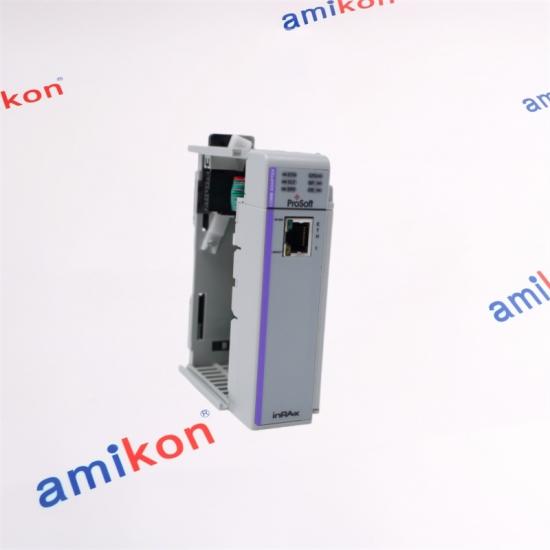

MVI69L-MBTCP

Modbus TCP/IP Lite Communication Module

A single-slot CompactLogix communication module that exchanges controller data with Modbus TCP/IP devices as a Client and Server.

10 CLIENT CONNECTIONS2 SERVER CONNECTIONS240 / 240 WORDS

PRODUCT INFORMATION

From controller tags to Modbus TCP/IP data

The MVI69L-MBTCP is designed for smaller CompactLogix L2 applications. It occupies one 1769 slot and provides Modbus TCP/IP Client and Server communications through a 10/100 Ethernet port.

①

Configure

Build the module configuration with ProSoft Configuration Builder and the custom Add-On Profile.

②

Connect

Map controller data to Modbus TCP/IP Client commands and Server data areas.

③

Operate

Monitor diagnostic tags and control Client commands from ladder logic.

DATA PATH

CompactLogix
Controller Tags

⇄

Modbus TCP/IP
Devices

The configuration is stored in the CompactLogix ACD project, supporting recovery when a configured module is replaced.

PlatformCompactLogix with 1769 I/O bus capability; controller firmware version 16 or later

Client / Server10 Client connections; up to 16 commands per Client, 160 total; 2 Server connections on ports 502 and 2000

I/O Capacity240 input and 240 output 16-bit integer words

Ethernet10/100 Mbps Ethernet port

Power / Slot450 mA maximum at 5 VDC; single 1769 slot; distance rating 4

Environment0°C to 60°C operating; −40°C to 85°C storage; 5% to 95% RH, non-condensing

Compatibility note: MicroLogix 1500 is not supported. MVI69L-MBTCP is not configuration-compatible with MVI69-MNET; migration requires a review of controller application, module configuration and data mapping.

FREQUENTLY ASKED

MVI69L-MBTCP FAQ

What is MVI69L-MBTCP?A Modbus TCP/IP Lite Client/Server communication module for smaller CompactLogix L2 applications.

How is MVI69L-MBTCP configured?Use ProSoft Configuration Builder with the custom Add-On Profile; controller logic uses the supplied Add-On Instruction.

How many connections does MVI69L-MBTCP support?Ten Client connections and two Server connections.

Does MVI69L-MBTCP support MicroLogix 1500?No. The ProSoft datasheet expressly excludes MicroLogix 1500.

Can MVI69L-MBTCP directly replace MVI69-MNET?No. Their configurations differ, so the application, data mapping and module setup must be reviewed before migration.

INVENTORY DISCOVERY

Recommended Models

Additional inventory references for browsing only; they are not replacements for MVI69L-MBTCP.
