BENTLY NEVADA / CONDITION MONITORING CONNECTION
84661-55

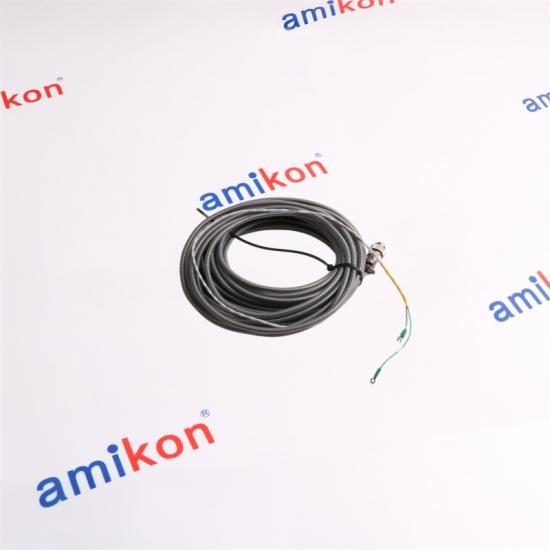

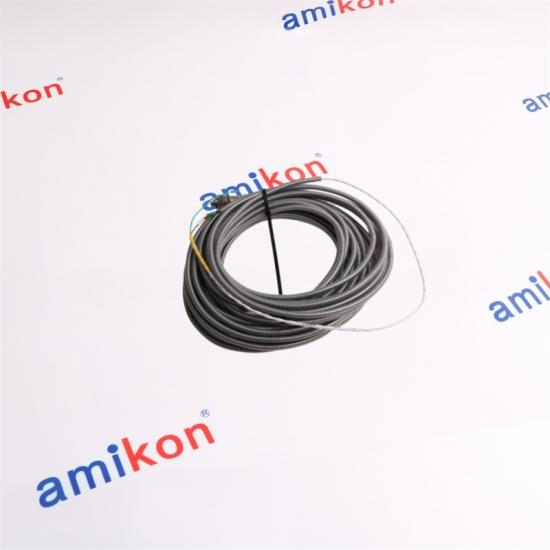

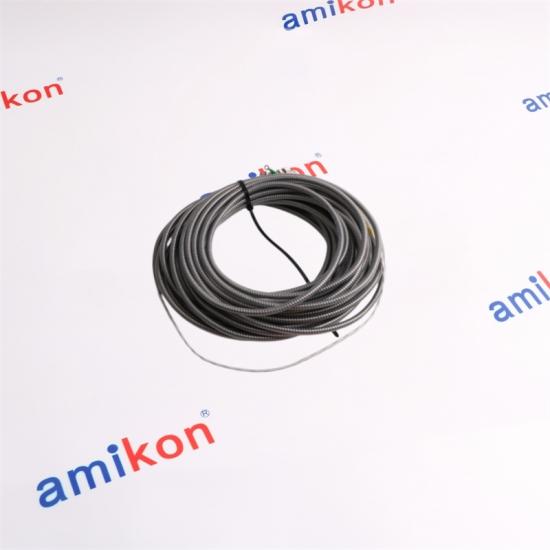

Standard Armored Interconnect Cable
A 55-foot armored interconnect configuration within the Bently Nevada 84661 cable family, designed for connection between compatible vibration transducers and monitoring equipment. The construction combines a two-conductor twisted, shielded 22 AWG cable with flexible stainless-steel armor for additional mechanical protection in industrial installations.
|
PART NUMBER
84661-55
|
|
SIGNAL PATH
Transducer → Monitor
Two-conductor shielded connection architecture.
|
MECHANICAL PROTECTION
Flexible Stainless Armor
Additional protection for cable routing in industrial areas.
|
LENGTH CODE
“-55” = 55 ft
84661 cable lengths are ordered in 1-foot increments within the specified range.
|
|
01 / PRODUCT ROLE
Built for the signal path.
|
What makes the 84661-55 relevant to a vibration monitoring installation?
The 84661-55 is a defined-length member of the 84661 armored interconnect cable family. Its purpose is straightforward but critical: carry the transducer signal between the sensing point and the monitoring equipment while providing a mechanically protected cable route. The cable uses two twisted, shielded 22 AWG conductors and a flexible stainless-steel armor layer. One end uses a moisture-resistant female connector for the transducer side, while the monitor side uses terminal lugs.
For installations built around the 330500 Velomitor sensor family, cable selection affects physical routing, connector compatibility, shielding practice and the total distance between the sensor and monitor. The 55-foot designation therefore matters when replacing an existing cable or matching an established installation route.
|
|
22 AWG
Two-conductor twisted and shielded construction.
|
55 FT
Specified 84661-55 cable length.
|
SS ARMOR
Flexible stainless-steel armored construction.
|
3–96 FT
84661 family ordering range.
|
|
02 / TECHNICAL PROFILE
Specifications
The following configuration values describe the 84661-55 within the 84661 armored interconnect family.
|
|
|
84661-AA
The armored cable family used for installations where the additional mechanical protection of stainless-steel armor is preferred. The “AA” portion represents the selected cable length.
|
9571-AA
The corresponding standard-temperature unarmored interconnect option, using shielded 22 AWG cable and the same general transducer-to-monitor connection concept.
|
|
89477-AA
A right-angle interconnect option using two-conductor 18 AWG twisted, shielded cable. It is intended for connection arrangements requiring the right-angle connector configuration.
|
125065-AA
Another two-conductor 18 AWG shielded cable option with a connector and fluorosilicone-elastomer boot arrangement for compatible monitoring installations.
|
|
04 / FIELD USE
Application & fault scenarios
|
|
|
INSTALLATION CHECK
Before energizing
|
|
Amikon supports industrial automation users with a broad portfolio of PLC modules, control components, monitoring hardware and automation spare parts.
Our focus is practical: help maintenance teams secure required components efficiently, improve equipment availability and reduce avoidable downtime.
Our portfolio covers major industrial platforms including HIMA, ABB, Rockwell Automation, ICS Triplex, TRICONEX, Woodward, GE, Yokogawa, Bently Nevada and Emerson / DeltaV.
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
| Delivery way | E-packing / FedEx / EMS / TNT / DHL / UPS |
| Payment term | T/T |
|
FAST QUOTATION
Send the complete requirement.
Providing the following five items helps us match the requested component and logistics more accurately.
|
|
|
Q1. Is the Bently Nevada 84661-55 simply a 55-foot version of the 84661 cable?
Yes. The “55” identifies a 55-foot cable length within the 84661 family. The family uses one-foot ordering increments and spans 3 to 96 feet. The cable construction remains the two-conductor twisted, shielded 22 AWG design with flexible stainless-steel armor.
|
Q2. When should a buyer choose Bently Nevada 84661-55 instead of 9571-55?
The main distinction is mechanical construction. 84661-55 uses flexible stainless-steel armor, while 9571-55 is the unarmored cable option. If the existing installation requires the armored configuration or replacement must preserve the established cable construction, 84661-55 is the closer match.
|
|
Q3. What connector arrangement should be expected on Bently Nevada 84661-55?
The transducer end uses a two-socket moisture-resistant female connector, while the monitor end uses terminal lugs. This arrangement is part of the cable configuration and should be matched against the installed transducer and monitoring connection before ordering.
|
Q4. Can Bently Nevada 84661-55 be used for a 330500 Velomitor installation?
The 84661 cable family is specified as an interconnect option for the 330500 Velomitor sensor. The 84661 construction provides the required two-conductor shielded cable arrangement with the armored exterior. The complete installation should still be checked for the correct sensor, monitor and terminal arrangement.
|
|
Q5. What should a purchaser verify before replacing Bently Nevada 84661-55?
Verify the complete part number, 55-foot length, armored construction, connector arrangement, conductor size, connected transducer, monitor terminals and required cable route. This is particularly important when replacing a cable in an established vibration-monitoring loop, because a similar-looking cable may have a different connector or electrical construction.
|
PURCHASING NOTE
Match the installed configuration, not just the appearance.
For a replacement requirement, send the existing part number together with quantity, destination, required date and connected machine/system.
|
|
