BENTLY NEVADA 330104-11-25-10-02-00 3300 XL 8 mm M10 Armored Proximity Probe
|
|
BENTLY NEVADA / 3300 XL PROXIMITY TRANSDUCER
330104-11-25-10-02-00
3300 XL 8 mm M10 Armored Proximity Probe

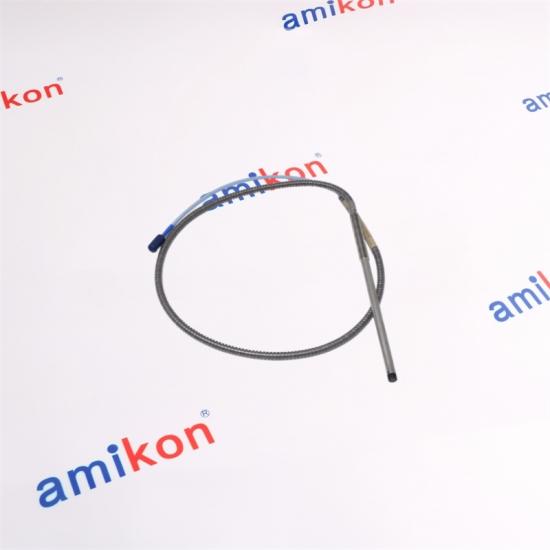

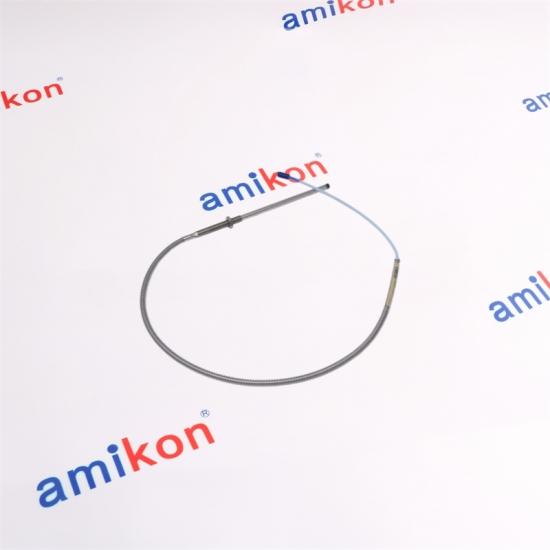

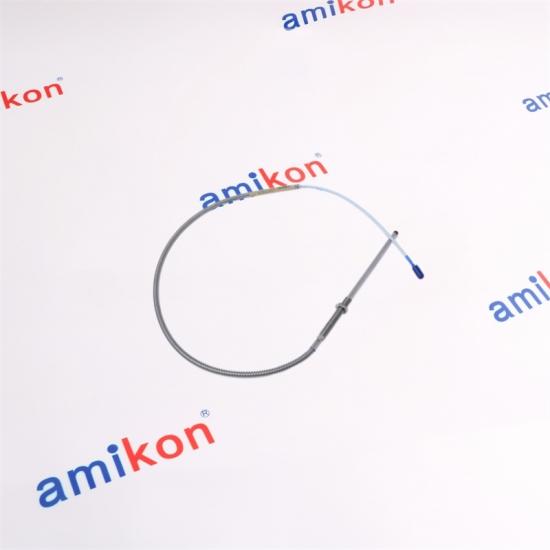

A metric-threaded 3300 XL 8 mm proximity probe configured with an M10 x 1 mounting thread, armored construction, 11 mm unthreaded length, 250 mm case length and 1.0 m total cable length. The configuration uses a miniature coaxial ClickLoc connector with standard cable and carries the non-agency-approval option.
PRIMARY FUNCTION
Non-contact measurement of shaft position and vibration
|
EXACT CONFIGURATION
330104
3300 XL 8 mm Probe / M10 x 1 / With Armor
|
|
THREAD
M10 x 1
|
PROBE TIP
8 mm
|
ARMOR
Included
|
|
01 / PRODUCT ROLE
A precise sensing element for rotating machinery.
|
Why the 330104-11-25-10-02-00 configuration matters
The 3300 XL 8 mm proximity transducer system converts the distance between the probe tip and a conductive machine surface into an electrical output. This makes the technology suitable for non-contact measurement of both static position and dynamic vibration.
The 330104 probe body is the metric-threaded, armored version of the 3300 XL 8 mm probe. Its M10 x 1 thread is intended for metric mounting arrangements, while the armor provides additional mechanical protection around the probe cable. The 11 mm unthreaded section and 250 mm case length are part of the mechanical configuration and should be matched when replacing an installed probe.
The complete 3300 XL 8 mm system uses the probe together with an extension cable and Proximitor Sensor. Correct electrical and mechanical matching across these elements is essential for the intended measurement performance.
|
|
02 / CONFIGURATION
Part-number anatomy
Every suffix in this configuration controls a physical or connection characteristic. For replacement purchasing, the complete number should be retained.
|
|
|
MECHANICAL
M10 x 1 + Armor
Metric mounting with armored probe construction.
|
LENGTH
11 / 250 / 1000 mm
Unthreaded / case / total cable dimensions.
|
CONNECTION
ClickLoc / Standard
Miniature coaxial connector arrangement.
|
|
|
|
03 / 3300 XL FAMILY
Same family, different mechanical requirements.
Choosing the correct probe is not only about the 8 mm sensing diameter. Thread type, armor, case geometry, cable arrangement and length can change the suitability of a replacement.
|
|
|
04 / APPLICATION
Where this probe configuration fits.
|
|
|
Wrong mounting thread
An M10 x 1 installation should not be replaced with a 3/8-24 UNF probe simply because both products use an 8 mm sensing tip.
|
Missing armor
If the original installation uses an armored probe, an unarmored replacement changes the mechanical construction and should not be treated as automatically equivalent.
|
Incorrect dimensional match
The 11 mm unthreaded section and 250 mm case configuration should be checked against the available mounting space before installation.
|
|
Connector mismatch
A ClickLoc connection should be checked for compatibility with the intended extension cable and Proximitor Sensor before the probe is installed.
|
Unexpected signal
When a replacement produces an unexpected signal, verify probe position, cable connection, sensor compatibility and mechanical installation before replacing additional components.
|
Cable or armor damage
Physical damage, excessive bending or connector damage can compromise the measurement path and should be checked during maintenance.
|
Amikon specializes in industrial automation components, PLC modules, control equipment, DCS hardware, turbine-control components, safety systems and condition-monitoring products.
The operating objective is simple: help maintenance and engineering teams secure the right replacement components efficiently and reduce unnecessary equipment downtime.
From ABB DCS and AC800F/AC800M systems to robot spare parts, GE turbine components, Yokogawa CS3000 equipment, Bently Nevada 3500 monitoring products and Emerson DeltaV monitoring hardware, our purchasing network supports diverse industrial environments.
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
| Delivery way | E-packing / FedEx / EMS / TNT / DHL / UPS |
| Payment term | T/T |
|
REQUEST A QUOTE
Give us the five details that matter.
Complete purchasing details help us match the requested component, delivery arrangement and application more accurately.
|
|
|
Q1. Why does the Bently Nevada 330104-11-25-10-02-00 require an M10 x 1 mounting arrangement?
The 330104 base configuration is the metric-threaded member of the 3300 XL 8 mm family. Its mounting thread is M10 x 1, so the mechanical installation should provide the matching metric thread. A 3/8-24 UNF probe is not an equivalent mechanical replacement simply because both use an 8 mm probe tip.
|
Q2. What is important about the -11 and -25 dimensions on Bently Nevada 330104-11-25-10-02-00?
The -11 configuration specifies an 11 mm unthreaded length, while -25 specifies a 250 mm case length. These dimensions affect the mechanical position of the probe within its mounting arrangement. They should therefore be matched when replacing an installed probe rather than selected only by the electrical connector.
|
|
Q3. Does Bently Nevada 330104-11-25-10-02-00 include an agency approval option?
No. The final -00 suffix represents the configuration where the agency approval option is not required. If the installation is in a classified or hazardous location, the required approval configuration should be confirmed before ordering rather than assuming the -00 version is suitable.
|
Q4. Can Bently Nevada 330104-11-25-10-02-00 replace any 3300 XL 8 mm probe?
No. The 3300 XL 8 mm family includes multiple mechanical configurations, including different thread standards, armored and unarmored constructions, mounting styles and dimensional options. The replacement must match the installed mechanical configuration as well as the cable and connector arrangement.
|
|
Q5. What should I check if Bently Nevada 330104-11-25-10-02-00 gives an unexpected reading after replacement?
First verify the mechanical installation, probe-to-target relationship, ClickLoc connection, extension cable and compatible Proximitor Sensor. Also confirm that the replacement retains the original thread, armor, dimensional configuration and cable arrangement. Changing several elements at once can make it difficult to isolate the cause of an abnormal measurement.
|
BUYER'S CHECKPOINT
Match the complete configuration.
Part number, thread, armor, unthreaded length, case length, cable length, connector type and approval configuration should all be checked before purchase.
|
|
06 / INDUSTRIAL AUTOMATION RANGE
Recommended Models
A mixed selection of PLC, DCS, safety, drive, communication, sensing and electrical automation components.
|
|
|
AFTER-SALES
Return & Replacement
A straightforward process for post-delivery concerns.
|
Received the item and have a concern?
Please contact us within 7 days if you have any question after receiving the items.
Returned items should remain in their original condition. Please provide the specific reason for the return. After the returned items are received, we will arrange a return or replacement for the order where applicable.
Shipping costs incurred for the return are the buyer's responsibility.
|
|
REQUEST 330104-11-25-10-02-00
Need this exact probe configuration?
Send the complete part number, quantity, destination, required date and machine/system. Our sales team can process the requirement and coordinate delivery.
|
|
||||
