BENTLY NEVADA • PROXIMITY MONITORING HARDWARE
21000-15-10-00-166-03-02

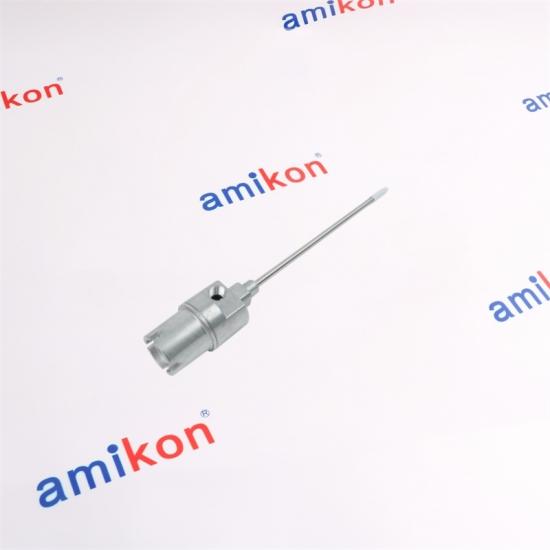

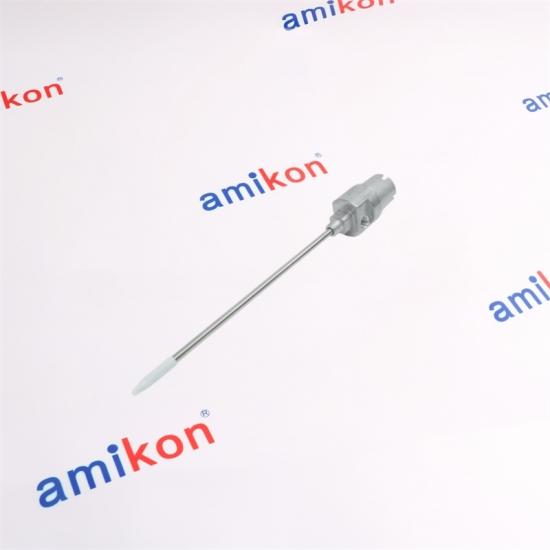

21000 Series Proximity Probe Housing Assembly
A configurable external proximity probe housing assembly designed to position and protect a compatible probe at the machine casing while providing a defined penetration, cable route and threaded mounting arrangement.
|
CONFIGURATION
21000
External proximity probe housing assembly
15 — 300 nuclear probe
10 — 1.0 m probe cable 00 — No standoff adapter 166 — 16.6 in penetration 03 — Fitting configuration 02 — 3/4-14 NPT mounting Long penetration configuration — sleeve support should be considered to control unsupported sleeve resonance.
|
|
HOUSING BODY
Aluminum
|
SLEEVE
304 Stainless Steel
|
MOUNTING
3/4-14 NPT
|
FITTINGS
Option 03
|
|
WHY THIS CONFIGURATION MATTERS
Built around the installation geometry
The 21000 housing family uses a configurable probe, cable, standoff, penetration, fitting and mounting-thread structure. This makes the complete ordering code important when replacing an installed assembly. For 21000-15-10-00-166-03-02, the absence of a standoff adapter is paired with a 16.6-inch probe penetration. The long sleeve arrangement is therefore an important installation consideration rather than a cosmetic option. Installation consideration
Penetration lengths exceeding 12 inches require additional sleeve support near the probe to reduce resonance associated with unsupported sleeve length.
|
CONFIGURATION MAP
System matching remains essential
Probe, extension cable, Proximitor Sensor and monitoring channel should be matched as a complete measurement chain. The housing itself establishes the mechanical installation arrangement.
|
| Product family | Bently Nevada 21000 Proximity Probe Housing Assemblies |
| Probe option | 15 — 300 nuclear |
| Probe cable | 10 — 1.0 m / 39 in |
| Standoff adapter | 00 — No standoff adapter |
| Probe penetration | 166 — 16.6 in / approximately 421 mm |
| Fitting option | 03 — One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer and cable seal grip with compatible grommets |
| Mounting thread | 02 — 3/4-14 NPT |
| Housing material | Aluminum housing body |
| Sleeve material | 304 stainless steel |
| Design role | External mounting and protection of a proximity probe at rotating machinery measurement points |
|
SERIES ARCHITECTURE
21000 Family at a Glance
The 21000 series is a configurable external proximity probe housing platform. Its ordering structure allows the probe type, cable length, standoff arrangement, penetration length, fittings and mounting thread to be specified for the intended machine installation. The family supports several probe configurations, including 300 nuclear, 420 nuclear, 3300 XL 8 mm, 3300 XL NSv and 3300 XL 11 mm options, depending on the selected housing configuration.
|
ENGINEERING DETAIL
Why the suffix matters
Two assemblies may both belong to the 21000 family while having substantially different probe arrangements and mechanical dimensions. Replacement selection should therefore be based on the complete six-field ordering code rather than the 21000 family number alone. For this exact unit:
Probe + cable + penetration + fittings + mounting thread must remain compatible with the installed machine geometry. |
|
Long probe installation
The 16.6-inch penetration places the sleeve well beyond the 12-inch threshold. Unsupported sleeve length can introduce resonance, making mechanical support an important part of installation planning. |
Replacement mismatch
Replacing a complete assembly using only the 21000 family number can result in the wrong probe, cable length, penetration or fitting arrangement. The complete ordering code should be matched. |
Measurement-chain compatibility
The installed probe system should maintain compatibility among the probe, extension cable, Proximitor Sensor and monitoring channel. Approval selections must also be compatible where applicable. |
The housing is intended for externally mounted proximity-probe installations associated with rotating machinery. Proper positioning allows the probe to be located at the required measurement point while the housing provides a defined mechanical interface and cable-routing arrangement.
|
Can 21000-15-10-00-166-03-02 be treated as a standard 21000 housing?
No. The 21000 prefix identifies the family, while the complete suffix defines the installed configuration. This unit specifically combines a 300 nuclear probe, 1.0 m cable, no standoff adapter, 16.6-inch penetration, option 03 fittings and 3/4-14 NPT mounting. |
Why does 21000-15-10-00-166-03-02 need special attention to sleeve support?
Its 166 penetration code represents 16.6 inches, which exceeds the 12-inch threshold. The housing family specifies additional support near the probe for long unsupported sleeves to reduce resonance. |
|
Is the 1.0 m cable on 21000-15-10-00-166-03-02 interchangeable with every 21000 configuration?
No. Cable length is an explicit ordering field. The code 10 specifies 1.0 m, while other 21000 assemblies may use 0.5 m, 1.0 m or other defined cable-length options. Replacement should preserve the required installation reach and routing. |
What should be checked when replacing 21000-15-10-00-166-03-02 in an existing machine?
Check the complete part number, probe type, cable length, absence of a standoff adapter, 16.6-inch penetration, fitting arrangement and 3/4-14 NPT mounting interface. The mechanical installation depth and long-sleeve support condition should also be confirmed. |
|
Why is 21000-15-10-00-166-03-02 more than a simple probe replacement?
The assembly combines the probe with a defined mechanical housing arrangement. A replacement therefore affects probe selection, cable routing, penetration geometry, fitting interfaces and mounting position. For an installed system, preserving these dimensions can be as important as matching the electrical measurement chain. |
|
|
ORDERING
Make the quotation precise
To shorten quotation time and reduce configuration errors, please provide the following details with your inquiry: Part Number
Quantity Destination Required Date Machine / System |
DELIVERY OPTIONS
E-packing / FedEx / EMS / TNT / DHL / UPS
|
Amikon specializes in industrial automation components and control-system spare parts, with a focus on helping maintenance teams restore equipment efficiently and reduce unnecessary downtime.
|
CONTROL
PLC & DCS
HIMA, ABB, Rockwell, ICS Triplex, TRICONEX and related industrial control platforms. |
ROTATING EQUIPMENT
Monitoring
Bently Nevada monitoring cards, pre-processors, proximity components and sensors. |
TURBINE
Control Systems
GE turbine spare parts, DEH control cards, Woodward components and related equipment. |
ROBOTICS
Robot Spare Parts
ABB and KUKA robot spare parts together with industrial automation replacement components. |
| 330880-00-00-000-03-02 | 6ES7307-1KA02-0AA0 | KFD2-STC4-Ex1.20 | 330910-00-07-05-02-05 |
| X20DO9322 | 3RT2028-2BB40 | KL9010 | 140CRP93200 |
| 330104-11-25-10-02-00 | MCR-SL-PT100-U-DC-24 | TPS-6L-FPB-T | A50-30-11 / 1SBL351001R8111 |
| NFX-TDIFF-IV A1R | PD-9001GO | 6EP1961-3BA21 | 1762-IQ16 |
| 250044-VBA-20M | QAM2161.040 | 3RU2126-4EB0 | DMX3 |
| TU506 / 1SAP210000R0001 | 750-430 | LEGRAND 03842 | ATV12H075M2 |
| RD-053MS | UNO-PS/1AC/48DC/60W | SFC200240 | SIGA-IM |
| 140DDO84300 | 6ES5524-3UA15 | KL4032 | West 6100 / P6101 |
| MCR-SL-PT100-LP-NC | 1SAP187300B0002 TA5142-RS485I | 3SB1831-7AH | D8W2 |
| QAC3161 | 700-CF220KF | ADAM-4520 | EM6400 |
| 2CDG120045R0011 | BMXCPS3020 | XSL511 | VC6013AJ1000T |
| MK5154 | 3RU1146-4FB0 | DMX3 | AD-155A |
|
AFTER DELIVERY
7-Day Notice
Please contact us within 7 days if you have any question after receiving the items. |
RETURN CONDITION
Original Condition
Returned items must remain in their original condition. Please provide the specific reason for the return so the case can be reviewed efficiently. |
RESOLUTION
Return or Replacement
After the returned item is received and reviewed, an applicable return or replacement arrangement will be processed. |
|
REQUEST A QUOTATION
Need 21000-15-10-00-166-03-02?
Send the complete part number together with quantity, destination, required date and machine/system information. Our team can then check the configuration and arrange the next step. |
