BENTLY NEVADA / 3300 XL 25 MM
330851-04-000-040-10-01-00

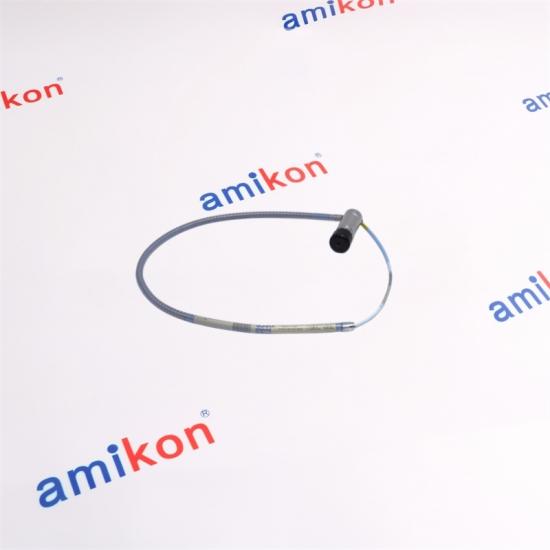

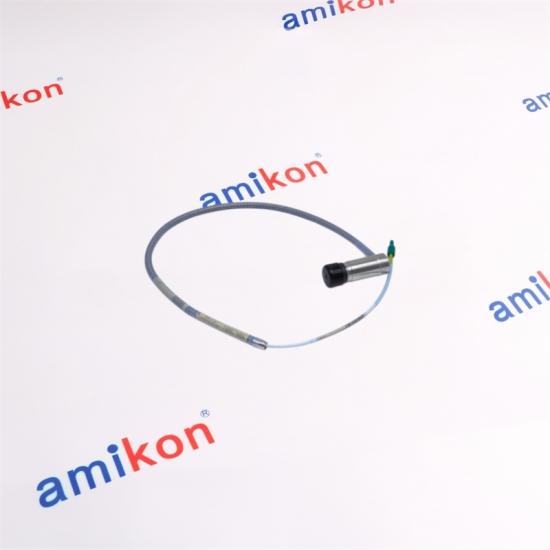

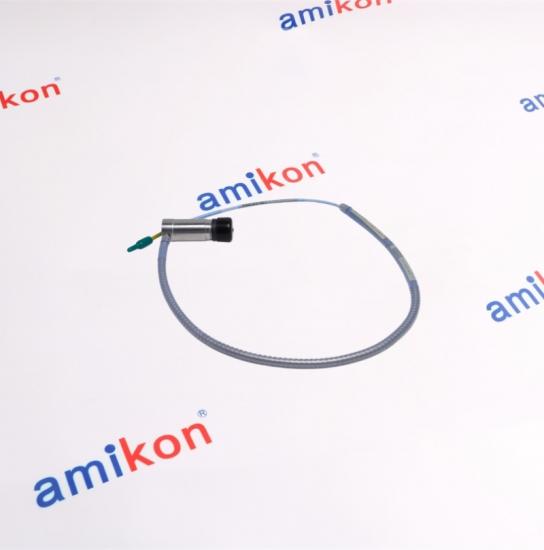

3300 XL 25 mm Proximity Probe
The 330851-04-000-040-10-01-00 is a 3300 XL 25 mm proximity probe configured with a smooth 1.06-inch diameter side-exit case. Its 40 mm case length, 1.0 m probe length and stainless-steel armor make the configuration suited to demanding turbine monitoring installations where mechanical routing and environmental protection are important.
|
PRECISION / DE MONITORING
12.7 mm
Linear Measurement Range 0.787 V/mm
Nominal average scale factor 0.63–13.33 mm
Linear gap range -35°C to +200°C
Probe operating/storage range APPLICATION FOCUS
Steam Turbine Differential Expansion
Designed for noncontact measurement of relative movement between a turbine rotor and casing through a suitable collar or ramp arrangement. |
|
BASE
330851
|
CASE
04
|
UNTHREADED
000
|
CASE LENGTH
040
|
TOTAL LENGTH
10
|
ARMOR / APPROVAL
01 / 00
|
|
TECHNICAL PROFILE
Configured for Turbine DE MeasurementThe 3300 XL 25 mm transducer platform combines a 25 mm probe, extension cable and 3300 XL 25 mm Proximitor Sensor. The system converts the probe-to-target distance into a proportional voltage output for dynamic machinery monitoring. For differential expansion, two proximity transducers can observe a collar or ramp near the thrust bearing. Depending on target geometry, same-side or complementary-input arrangements can provide the required measurement range. |
|
||||||||||||||||
|
12.7
mm linear range
Equivalent to 500 mils over the specified linear region. |
0.787
V/mm nominal ASF
Nominal average scale factor is 20 mV/mil. |
200°C
continuous probe range
Short-term exposure can reach 250°C for less than 24 hours. |
75Ω
FluidLoc cable
Triaxial PFA-insulated cable construction. |
Construction & Protection
|
Environmental LimitsProbe: -35°C to +200°C operating and storage. Short-term probe exposure: +250°C maximum for less than 24 hours. Humidity: 100% condensing, non-submersible when connectors are protected. Minimum bend radius: 25.4 mm with or without stainless-steel armor. |
The 330851 family is available in multiple mechanical case arrangements, case lengths, probe lengths, armor selections and approval options. Smooth side-exit configurations are offered alongside threaded and rear-exit arrangements, allowing the probe geometry to be matched to available turbine installation space.
|
CASE STYLES
Threaded and smooth cases, including side-exit configurations.
|
LENGTH OPTIONS
Metric case lengths include 26, 40, 60, 80, 100 and 250 mm.
|
CABLE OPTIONS
Probe lengths are available in 1 m, 5 m and 9 m configurations.
|
APPROVAL OPTIONS
The ordering family includes no-approval and multiple-approval options.
|
|
APPLICATION SCENARIOS
Where the 330851 Configuration Fits
|
COMMON DIAGNOSTIC CONCERNS
What Can Affect Measurement Quality?Incorrect probe gap: the specified linear region begins at approximately 0.63 mm and extends to 13.33 mm from the target. Target geometry: measurement accuracy depends on suitable target size and installation geometry. Improper cable routing: the probe cable has a specified minimum bend radius of 25.4 mm. Component mismatch: when upgrading an earlier transducer system, the probe, extension cable and Proximitor Sensor must be treated as a complete 3300 XL 25 mm component set. |
 |
INDUSTRIAL AUTOMATION PARTNER
Keep Critical Equipment Moving.
Amikon focuses on industrial automation components and control-system spare parts, helping maintenance teams shorten sourcing cycles and reduce equipment downtime. PLC • DCS • TURBINE CONTROL • SAFETY SYSTEMS • CONDITION MONITORING
|
 |
|
MULTI-BRAND COVERAGE
HIMA, ABB, Rockwell Automation, ICS Triplex, TRICONEX, Woodward, GE, Yokogawa, Bently Nevada and Emerson automation families are among the product areas supported. |
GLOBAL SOURCING
Our service is built around fast sourcing of spare and operational components for industrial equipment, wherever the required part is located. |
|
ORDER SUPPORT
Fast Commercial ProcessingFor an accurate quotation, please provide the complete part number together with the operating context and required delivery timing. |
|
||||||
| Part Number | Quantity | Destination | Required Date | Machine/System |
| 01 |
Can 330851-04-000-040-10-01-00 be used when the turbine installation has limited radial clearance?
Yes, the 04 case option is specifically a smooth 1.06-inch-diameter side-exit configuration. Its side-exit geometry can be advantageous where cable routing and available installation space make a conventional rear-exit arrangement less suitable. Final mechanical suitability still depends on the actual mounting geometry and target arrangement. |
| 02 |
What does the 040 configuration of 330851-04-000-040-10-01-00 mean for installation planning?
The 040 position specifies a 40 mm overall case length for this metric smooth-case configuration. The 000 position specifies zero unthreaded length. These dimensions should be checked against the available probe opening, mounting hardware and target location before replacement. |
| 03 |
Does 330851-04-000-040-10-01-00 include a complete differential-expansion measuring system?
No. This part number identifies the 330851 probe configuration. A complete 3300 XL 25 mm transducer system also uses the appropriate extension cable and 3300 XL 25 mm Proximitor Sensor. For a system replacement, all three components need to be compatible as a 3300 XL 25 mm set. |
| 04 |
How should 330851-04-000-040-10-01-00 be evaluated if the existing probe is exposed to high turbine temperatures?
The 3300 XL 25 mm probe has an operating and storage range of -35°C to +200°C, with short-term exposure up to +250°C for less than 24 hours. The installation must also account for connector protection, cable routing and the temperature limits of the other components in the complete transducer system. |
| 05 |
What should be checked before replacing a 330851-04-000-040-10-01-00 in an operating turbine?
Confirm the exact part number, case geometry, 40 mm case length, 1 m probe length, stainless-steel armor selection and approval option. The target geometry and required probe gap should also be checked because the 3300 XL 25 mm system has a specified linear range of 0.63–13.33 mm and a nominal average scale factor of 0.787 V/mm. |
