BENTLY NEVADA 21504-00-48-10-02 7200 Series 8 mm Standard Mount Proximity Probe
|
| BENTLY NEVADA / 7200 SERIES | Overview Specifications Series Applications FAQ Request Quote |
|
ROTATING MACHINERY MONITORING
21504-00-48-10-02

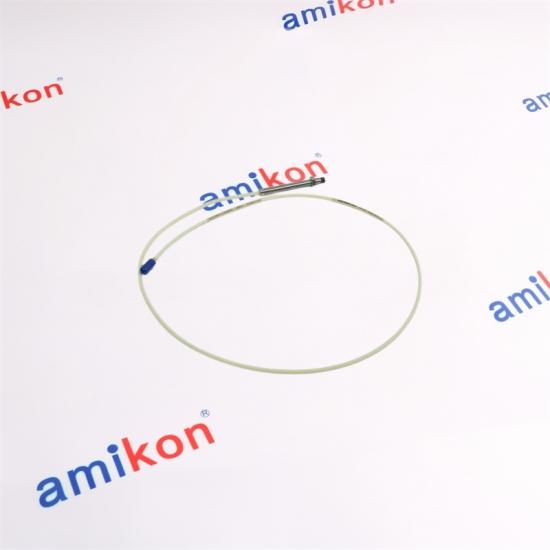

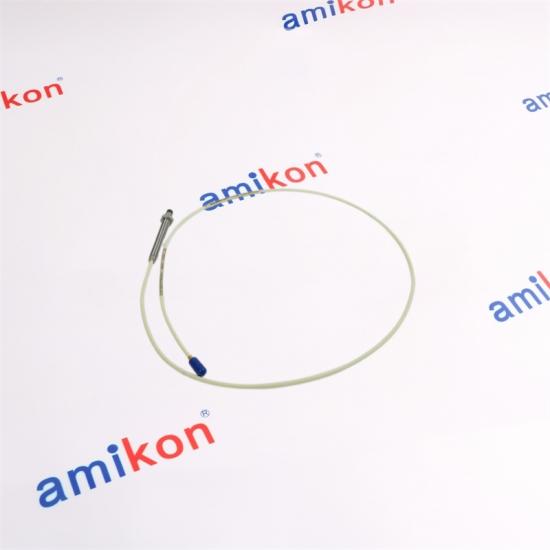

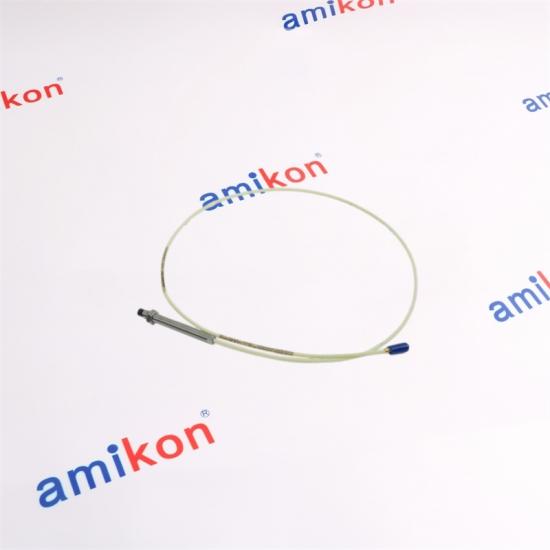

7200 Series 8 mm Standard Mount Proximity Probe
A standard-mount 8 mm proximity probe configuration for non-contact measurement of rotating machinery movement. This configuration combines a 0.0-inch unthreaded section, 4.8-inch overall case length, 1.0 m integral cable and miniature male coaxial connector.
|
CONFIGURATION
|
|
TIP DIAMETER
8 mm
|
MOUNTING
Standard
|
THREAD
3/8-24
|
CABLE
1.0 m
|
| Manufacturer | Bently Nevada |
| Series | 7200 Proximity Transducer Systems |
| Probe Type | 8 mm Standard Mount Probe |
| Configuration / Thread | Standard / 3/8-24 |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 inch |
| Overall Case Length | 4.8 inches |
| Cable Configuration | 1.0 m total cable length |
| Connector | Miniature male coaxial connector |
| Lead Armor | No |
| Supply Requirement | -17.5 Vdc to -26 Vdc, up to 12 mA consumption |
| Calibrated Output Range | 80 mils / 2.0 mm; measurement begins at approximately 10 mils / 0.25 mm from the probe face |
| 21504 | 00 | 48 | 10 | 02 |
| Base probe | 0.0 in unthreaded | 4.8 in case | 1.0 m cable | Mini coax |
|
7200
PROXIMITY FAMILY The 7200 family includes different probe constructions and mounting configurations so that probe diameter, mounting style, cable arrangement and installation geometry can be matched to the machinery location.
|
|
|
Rotating Equipment
The proximity measurement principle is suited to machinery where shaft movement must be observed without physical contact. Typical monitoring applications include radial vibration and shaft-position measurements on rotating machinery.
|
Machinery Protection
When connected to the appropriate 7200-series electronics and monitoring chain, the probe provides the physical sensing element required to convert changes in probe-to-target gap into an electrical measurement used for machinery condition assessment.
|
|
Installation-Related Risk
Incorrect probe positioning, unsuitable mechanical clearance, damaged cable routing or an inappropriate mounting configuration can produce unstable or misleading measurements. The probe should therefore be installed with correct mechanical alignment and gap.
|
Signal-Chain Risk
A healthy probe alone does not guarantee a valid monitoring channel. Probe, cable, Proximitor electronics and monitor settings must be compatible. Cable or connector damage should be considered when a channel develops intermittent or abnormal behavior.
|
|
01
8 mm Sensing Tip
The larger 8 mm probe platform is intended for the standard 7200 mounting arrangement.
|
02
Standard Mount
The 3/8-24 configuration supports conventional English-thread installation requirements.
|
03
Integrated Cable
The selected code provides a 1.0 m cable length as part of the probe configuration.
|
04
Mini Coax Connection
The final code position specifies a miniature male coaxial connector.
|
| 01 |
Why should I verify the 21504-00-48-10-02 case length before replacing an installed probe?
Because the “48” configuration corresponds to a 4.8-inch overall case length. Matching the existing mechanical geometry helps prevent a replacement probe from interfering with surrounding hardware or sitting at an unsuitable sensing position.
|
| 02 |
Is the 21504-00-48-10-02 a suitable choice when the machine already uses a 3/8-24 standard probe mounting arrangement?
Yes, the 21504 family is the 8 mm standard-mount configuration using 3/8-24 threads. The existing installation should still be checked for the required case length, cable arrangement, connector and sensing geometry before ordering.
|
| 03 |
What does the 10 in 21504-00-48-10-02 mean for maintenance planning?
The “10” identifies the 1.0 m cable configuration. This is important when replacing a probe because cable reach and routing can affect whether the replacement can be installed without changing the established field wiring arrangement.
|
| 04 |
Does the 21504-00-48-10-02 include a connector that should be checked against the existing signal chain?
Yes. The “02” configuration specifies a miniature male coaxial connector. The mating connection and associated 7200-series electronics should be verified before purchasing, particularly when replacing an older probe with a different connector arrangement.
|
| 05 |
What should I compare first when replacing a 21504-00-48-10-02 with another 7200-series probe?
Compare the probe diameter, mounting thread, unthreaded length, overall case length, cable length, connector and lead-armoring configuration. Two probes from the same family are not automatically mechanically interchangeable simply because their base model is similar.
|
|
