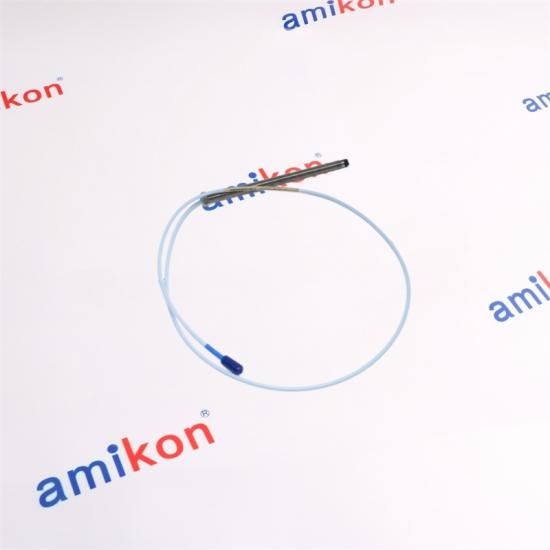

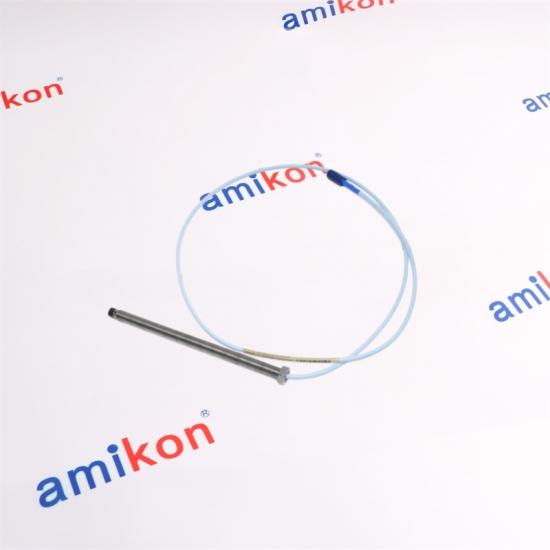

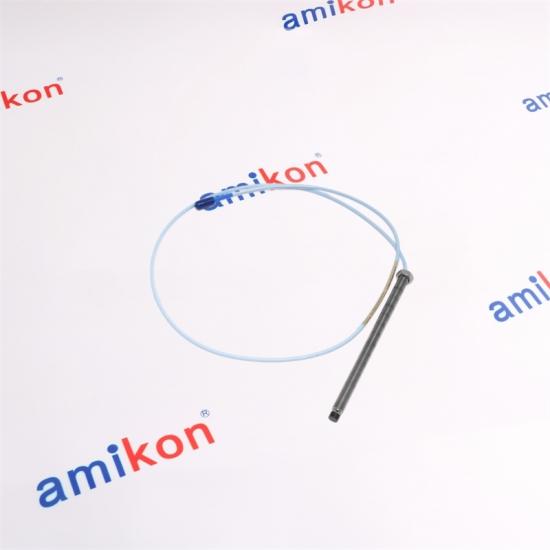

BENTLY NEVADA 330101-00-60-90-01-05 3300 XL 8 mm standard-mount proximity probe
|
|||||||||||||||
|
MACHINERY CONDITION MONITORING
BENTLY NEVADA
330101-00-60-90-01-05
3300 XL 8 mm standard-mount proximity probe configured with a 3/8-24 UNF thread, 6.0-inch case length, 9.0-meter total probe length, miniature ClickLoc connector with protector, standard cable, and CSA / ATEX / IECEx approval option.
3300 XL 8 mm 9 m CONFIGURATION CSA / ATEX / IECEx
|
CONFIGURATION PROFILE
|
|
01 / PRODUCT ROLE
Non-contact
shaft measurement |
A long-reach configuration within the 3300 XL 8 mm proximity platform
The 3300 XL 8 mm proximity system uses eddy-current measurement to sense the distance between the probe tip and a conductive target. The resulting output is proportional to target distance, allowing the system to measure both static position and dynamic vibration. The platform is intended for applications such as vibration and position measurement on fluid-film bearing machinery, as well as Keyphasor reference and speed measurement.
The 330101 family uses a standard forward-mount configuration with a 3/8-24 UNF probe case thread and an 8 mm probe tip. The selected 330101-00-60-90-01-05 configuration combines a 6.0-inch case length with a 9.0-meter total probe length and the protected standard-cable connector arrangement.
|
|
01
8 mm sensing tip
The 3300 XL 8 mm platform uses a robust 8 mm probe construction for rotating machinery measurement.
|
02
9 m total length
The selected configuration uses the 9-meter total probe-length option for installations requiring extended routing distance.
|
03
Protected ClickLoc
The -01 connector option combines the miniature coaxial ClickLoc connector with a connector protector and standard cable.
|
04
Component interchangeability
3300 XL 8 mm components are designed for electrical and physical interchangeability with applicable non-XL 3300 5 mm and 8 mm components.
|
|
MEASUREMENT WINDOW
2 mm linear range
|
WHY THE 9 M VERSION?
Extended installation reach without changing the 8 mm sensing concept.
The 9-meter configuration is part of the standard 3300 XL 8 mm length architecture. It is intended for installations where the probe and associated routing require the longer total electrical length.
INSTALLATION DETAIL
Maintain the specified minimum cable bend radius of 25.4 mm (1.0 in). Excessive probe-thread engagement can cause binding during installation.
|
|
02 / TECHNICAL DATA
330101-00-60-90-01-05
The configuration is defined by five option blocks. Each block determines a physical or certification characteristic of the probe.
|
|
|
|
||||||||||||||||||||||||||||
|
03 / APPLICATION LOGIC
Measure movement
before it becomes loss. The 3300 XL 8 mm platform is intended for non-contact vibration and position measurement on rotating machinery, particularly machines using fluid-film bearings.
|
|
| • Excessive shaft vibration | • Rotor position changes | • Unstable dynamic displacement |
| • Incorrect probe gap | • Cable or connector problems | • Installation-related measurement deviation |
|
330101
3/8-24 UNF / no armor
Standard-mount 3300 XL 8 mm probe family represented by the featured 330101 configuration.
|
330102
3/8-24 UNF / armored
The armored counterpart for installations requiring additional mechanical protection around the probe cable.
|
330103 / 330104
M10 x 1 thread
Metric-thread variants, available respectively in unarmored and armored configurations.
|
330191 / 330192
ETR versions
Extended-temperature versions for applications requiring higher probe or cable temperature capability.
|
 |
INDUSTRIAL AUTOMATION SOURCING
Spare parts support built around uptime.
Amikon focuses on industrial automation PLC modules, control systems, monitoring components and operational spare parts, helping industrial users shorten replacement cycles and reduce equipment downtime.
Our portfolio covers major automation ecosystems including HIMA, ABB, Rockwell / Allen-Bradley, ICS Triplex, TRICONEX, Woodward, GE, Yokogawa, Bently Nevada and Emerson / DeltaV-related monitoring products.
Global sourcing capability · Industrial automation focus · Rapid response
|
 INDUSTRIAL COVERAGE
PLC · DCS · TSI · Vibration Monitoring · Turbine Control · Robot Spare Parts
|
| HIMA | ABB | GE / DS / IS | Yokogawa | Bently Nevada |
| Safety & DCS modules | DCS / AC800F / AC800M / Robots | Gas turbine & control parts | CS3000 series | 3500 / proximity / monitoring |
|
05 / ORDER SUPPORT
Clear terms.
Faster decisions. Send the complete machine context with your inquiry so the requested configuration can be checked efficiently.
|
|
|
Can 330101-00-60-90-01-05 replace a shorter 330101 configuration?
It should not be treated as an automatic drop-in replacement solely because both parts belong to the 330101 family. The 9.0-meter total probe length and 6.0-inch case length must match the available mounting geometry, routing distance and associated Proximitor Sensor system length.
Why does 330101-00-60-90-01-05 have the -01 connector option?
The -01 option specifies a miniature coaxial ClickLoc connector with connector protector and standard cable. The connector-protector configuration is intended to provide additional environmental protection at the connector interface.
Is 330101-00-60-90-01-05 suitable when the installation requires a metric thread?
No. This exact part uses a 3/8-24 UNF probe case thread. The 330103 and 330104 family variants use M10 x 1 threads and should be considered when the machine mounting arrangement requires the metric configuration.
|
What should be checked before ordering 330101-00-60-90-01-05 for an existing monitoring channel?
Confirm the installed probe thread, physical case length, required total electrical length, connector arrangement, hazardous-area requirements and the compatible Proximitor Sensor configuration. The 9-meter probe is intended for the corresponding 9-meter system architecture.
When is 330101-00-60-90-01-05 preferable to an armored 330102 configuration?
The two families use the same basic 8 mm standard-mount concept but differ in cable protection. The 330101 version uses the unarmored probe construction, while 330102 adds armor. Selection should therefore follow the mechanical exposure and routing conditions at the installation rather than treating armor as a performance upgrade.
Purchasing note
For a replacement inquiry, send the exact existing part number together with the machine or system application. This helps avoid confusing similar 3300 XL configurations that differ by thread, length, cable type or approval option.
|
|
