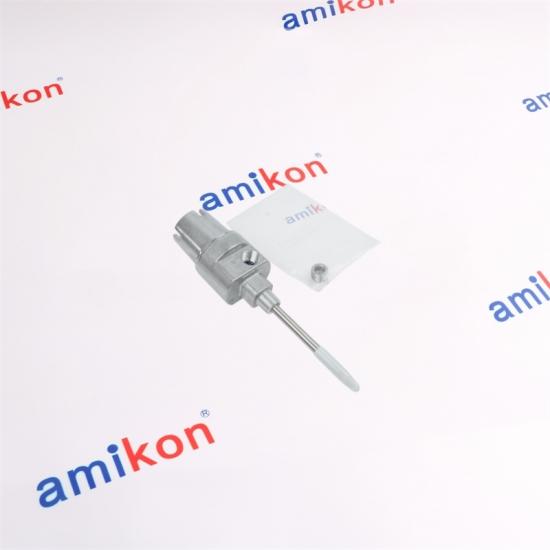

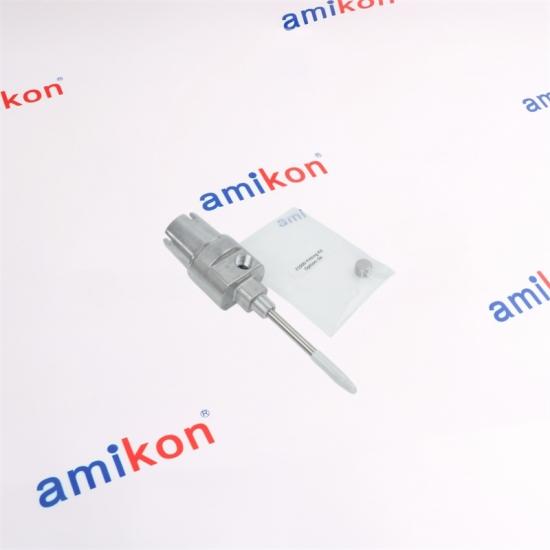

BENTLY NEVADA 21000-11-05-00-085-03-02 External Proximity Probe Housing Assembly
|
|||||||||||||||
|
BENTLY NEVADA · 21000 PROXIMITY PROBE HOUSING
21000-11-05-00-085-03-02
External Proximity Probe Housing Assembly
The Bently Nevada 21000 family provides an external housing arrangement for proximity-probe installations on rotating machinery. The assembly combines a protective metal housing, threaded conduit access, a probe sleeve, sealing elements and a reverse-mounted proximity probe arrangement. This configuration is associated with the 21000 aluminum housing family and is intended for installations where the probe must be positioned through a machine case while maintaining practical access for installation, adjustment and maintenance. |
CONFIGURATION
|
| Designed around the practical demands of externally mounted proximity measurement. | Aluminum housing · 304 stainless steel sleeve |
|
External Probe Protection
The housing places the proximity probe inside a dedicated metal enclosure, helping protect the sensing assembly while providing a defined path through the machine case. Threaded Conduit Access
Threaded ports accommodate conduit and sealing arrangements. The selected fitting configuration provides a practical route for cable protection and enclosure sealing. |
Installation Flexibility
The 21000 design supports different probe penetration and standoff arrangements within the product family. This allows the housing configuration to be matched to the geometry of the machine casing. Long-sleeve consideration
When the combined probe penetration exceeds 300 mm (12 in), additional sleeve support is required to reduce the possibility of resonance in an unsupported long sleeve. |
|
Configuration Breakdown
The complete part number is constructed from configuration fields used by the 21000 housing family. 21000 - 11 - 05 - 00 - 085 - 03 - 02
Housing family / probe option / cable length / standoff / penetration / fittings / mounting thread
|
|
|
Mechanical & Environmental Characteristics
|
Installation Considerations
|
|
21000
Aluminum external proximity probe housing assembly with selectable probe, cable, standoff, penetration, fitting and mounting configurations. |
24701
Stainless-steel housing family using the same general external probe-housing concept for installations requiring a stainless housing body. |
164818
Compact proximity probe housing arrangement intended for applications where installation space is more restricted. |
31000 / 32000
Newer housing families offer more flexible mounting options and improved environmental resistance where an explosion-proof housing is not required. |
|
04 / FIELD USE
Application Logic
The 21000 housing concept is intended for machinery locations where a proximity probe must be installed externally through the machine casing. Its mechanical arrangement helps maintain the probe position while providing a protected path for the probe cable. It is particularly suited to condition-monitoring installations associated with rotating machinery where shaft displacement, radial vibration or axial position measurements are part of the protection strategy. |
|
|
Unexpected Measurement Drift
Check probe positioning, penetration, gap condition and mechanical integrity when the monitoring signal changes unexpectedly. |
Cable or Seal Damage
Inspect the cable route, seal grip and conduit interface when the installation shows signs of physical deterioration or moisture ingress. |
Mechanical Resonance Risk
Long unsupported sleeves can introduce vibration. When total C + D penetration exceeds 300 mm, additional sleeve support is required. |
|
PURCHASING SUPPORT
Make the Replacement Match the Machine
For a quotation, please provide the exact part number together with the installation requirements. This is especially important for 21000 assemblies because the configuration code determines probe arrangement, cable length, standoff, penetration, fittings and mounting interface. |
Please include:
Part Number
Quantity Destination Required Date Machine/System |
|
Delivery
3–5 Days
|
Warranty
12 Months
|
Condition
Brand New Packaging
|
Payment
T/T
|
Shipping
E-packing / FedEx / EMS / TNT / DHL / UPS
|
|
Can 21000-11-05-00-085-03-02 be treated as a direct mechanical replacement for another 21000 assembly?
Not automatically. The complete configuration should be matched, particularly probe selection, cable length, penetration, fittings and mounting thread. A housing with a different D or F configuration may require changes to the machine installation. |
Why does the 085 configuration of 21000-11-05-00-085-03-02 matter during replacement?
The 085 designation specifies an 8.5-inch probe penetration configuration. Changing penetration can alter the probe's physical relationship with the machine casing and target, so the installed geometry must be checked before substitution. |
|
What installation issue should be considered with the 21000-11-05-00-085-03-02 sleeve length?
If the combined standoff and penetration dimension exceeds 300 mm (12 inches), the sleeve requires additional support to reduce resonance caused by an unsupported long sleeve. |
How should 21000-11-05-00-085-03-02 be matched with the field cable arrangement?
The 05 field represents a 0.5 m probe cable length, while the 03 fitting configuration includes a plug, a 3/4-14 to 1/2-14 NPT reducer and a cable seal grip. The physical cable route should therefore be checked before ordering. |
|
What makes the 21000-11-05-00-085-03-02 suitable for critical machinery monitoring installations?
Its purpose is not to perform the monitoring calculation itself; it provides the mechanical environment for an externally mounted proximity probe. The aluminum housing and stainless-steel sleeve establish a protected, repeatable mounting arrangement for proximity measurement hardware used around rotating machinery. |
|
| 1734-ACNR | FFMLCST42-BXF010 | 6GK5106-1BB00-2AA3 | KFD2-STC4-Ex1 |
| 330910-00-07-05-02-05 | Tcs8000 A8802rs | 140DDO84300 | 3SE5112-0CD0 |
| 330880-00-00-000-03-02 | PF3S-T16K | CPE510 | X20-DO-4529 |
| 21000-28-05-00-070-01-02 | 1SDA066317R1 | 330104-11-25-10-02-00 | TU532/1SAP217000R0001 |
| X20DO9322 | KFD2-SCD-Ex1.LK | 21000-11-05-00-085-06-02 | TU505 1SAP210200R0001 |
| AP9630 | 1SVR427032R0000 | 3RT2028-2BB40 | 21000-16-05-00-043-03-02 |
| XP-9105-8304 | BMXDDI1602H | TSXDEY16A5 | 170M1568D |
| KFD2-SR-Ex2 | RD-053MS | 3SB1831-7AH | UNO-PS/1AC/48DC/60W |
| 1SVR427030R0000 | 6ES5524-3UA15 | KFD2-SL-Ex1.48 | MCR-SL-PT100-U-DC-24 |
| TSXSCY21601 | QAM2161.040 | 1762-IQ16 | 6ES7307-1KA02-0AA0 |
| KL9010 | VKR020F300-FF | F2000PS-21 | BT2 3N-40-320-P |
| C316FNA3F | S06MF | DDNG485 | TR610 TOP2 |
| 3RH2344-1DF40-0KA0 | 1SDA066317R1 | XSL511 | Mini-PS-100-240AC/24DC/1 |
| MCR-SL-PT100-LP-NC | T91A23 | RH10M | 56P315RP |
| 1324.19.0017 | XF523A | 1SVR427032R0000 | X20-DO-4529 |
| TU505 1SAP210200R0001 | TSXDEY16A5 | AQR2531ANW | DDRC1220FR-GL |
| KFD2-STC4-Ex1 | 3TK2821-2CB30 | FFMLCST42-BXF010 | AP-PSBIAS-2P3-ATR |
| PRT-PSU-DIN-2A | 6GK5106-1BB00-2AA3 | TC810N1013 | TMC50-HD |
| 3SE5112-0CD0 | 1SVR427032R0000 | CPE510 | Tcs8000 A8802rs |
| 170M1568D | XP-9105-8304 | 21000-16-05-15-085-03-02 | 330910-00-07-05-02-CN |
|
AFTER-SALES CARE
7-Day Return / Replacement Window
Please contact us within 7 days after receiving the item if you have any question or need to report a problem. For a return request, the item must remain in its original condition and the specific reason for return should be provided. After the returned item is received and checked, we can arrange a return or replacement according to the case. Shipping costs generated by the return are the buyer's responsibility. |
Service Commitment
New packaging
12-month warranty 3–5 day delivery arrangement Global shipping options |
|
REQUEST A QUOTATION
Need 21000-11-05-00-085-03-02?
Send the exact part number, quantity, destination, required date and machine/system. We will check the configuration and respond with availability and delivery options. |
|
