BENTLY NEVADA 330880-00-00-000-03-02 PROXPAC XL Proximity Transducer Assembly

The 330880 platform is the PROXPAC XL proximity transducer assembly family. It combines a dedicated Proximitor Sensor with a protective housing to create a compact installation arrangement for proximity measurement. This particular configuration is distinctive because the assembly is ordered without a probe, allowing the housing and sensing electronics arrangement to be integrated into an installation where the probe selection is handled separately.

The important purchasing detail of this part number is not simply the PROXPAC enclosure. The complete ordering code determines whether a probe, standoff, sleeve, fittings and mounting arrangement are supplied.

Because this exact configuration does not include a probe, the measurement characteristics below describe the associated 3300 XL 8 mm proximity system architecture rather than incorrectly assigning probe specifications to the 330880 housing assembly itself.

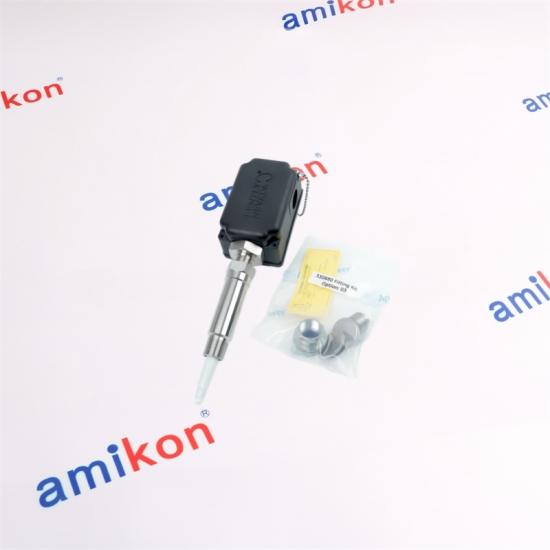

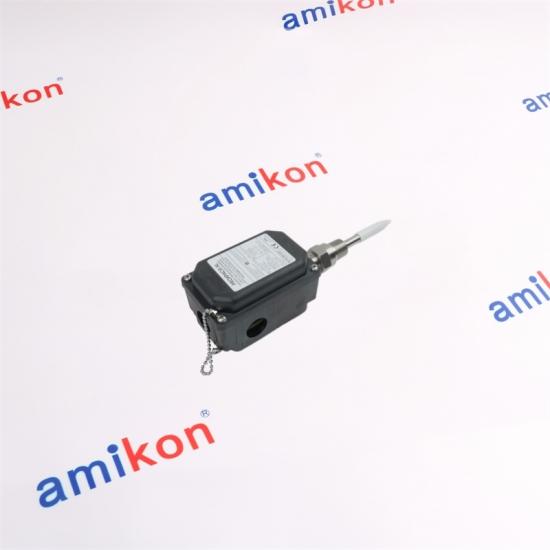

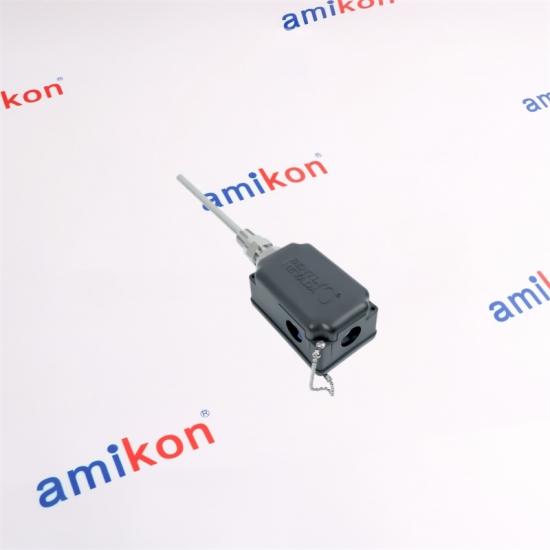

PROXPAC XL integrates the Proximitor Sensor with a purpose-designed probe housing. The housing uses a glass- and conductive-fiber-reinforced polyphenylene sulfide construction intended to strengthen the enclosure while helping dissipate electrostatic charge.

The housing cover contains the Proximitor Sensor connection, eliminating the need for a separate extension cable between the housing and the integrated sensor.

The D03 configuration provides one 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT stainless-steel reducer and two plugs. The E02 option establishes the 3/4-14 NPT mounting-thread arrangement.

This combination is particularly relevant when the installation specification already calls for NPT-based mechanical and cable-entry arrangements.

To identify the correct configuration and prepare a quotation efficiently, please provide the following five details with your request.

No. The first ordering option is 00, which specifies no probe. This configuration provides the PROXPAC XL housing and Proximitor Sensor arrangement without a probe supplied as part of this exact ordering code. This is the most important distinction to verify before using the part as a direct replacement.

This configuration is useful when the required installation is based around the PROXPAC XL housing and integrated Proximitor Sensor while the probe is specified separately. It also preserves the exact mechanical options defined by D03 and E02, rather than substituting a different housing or mounting arrangement.

Verify the existing mounting thread, fitting arrangement, housing requirements and whether the replacement requires an included probe. For this part number, the mounting thread is 3/4-14 NPT, the fitting option is 03, and no probe or standoff adapter is included.

Yes, the final 02 ordering option specifies a 3/4-14 NPT mounting thread. The D03 fitting arrangement additionally includes one 3/4-14 NPT fitting and a 3/4-14 NPT to 1/2-14 NPT stainless-steel reducer. The complete mechanical installation should still be checked against the machine-side arrangement.

Its value is the integrated PROXPAC XL arrangement: the Proximitor Sensor is combined with a dedicated protective housing rather than requiring a separate conventional sensor enclosure. The exact -00-00-000-03-02 configuration also fixes the fitting and mounting choices, which can simplify spare matching when the installed machinery already uses the same PROXPAC XL mechanical architecture.
