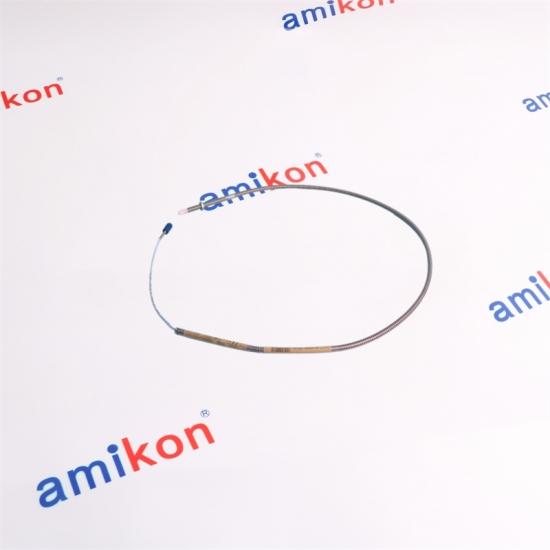

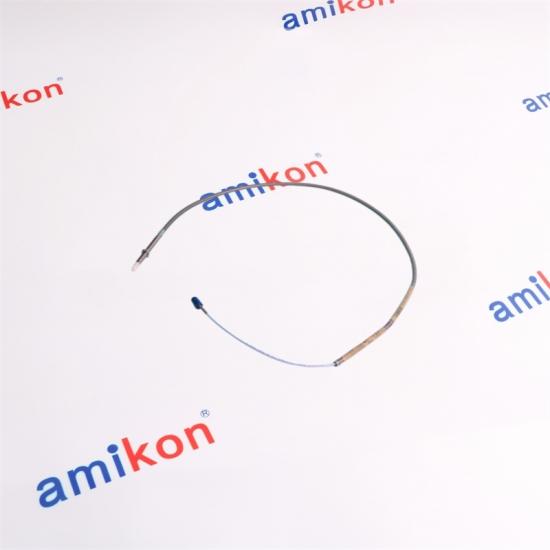

330904-00-25-05-02-05 is a Bently Nevada 3300 NSv eddy-current proximity probe with 11 mm PPS tip, 250 mm stainless-steel case, 2 m integral cable and MicroDot connector, offering 7.87 mV/µm sensitivity for tight-clearance turbomachinery vibration monitoring.
Details
|
Tip/Case: 11 mm PPS tip, 250 mm 316 L stainless body, M10×1 thread |
|
Cable: 2 m armored PTFE coax, 50 Ω, −2 V to −18 V output |
|
Sensitivity: 7.87 mV/µm (200 mV/mil) ±5 % at −24 V dc bias |
|
Linear range: 0.25–1.5 mm (10–60 mils) with ≤±1 % deviation |
|
Frequency response: 0.5 Hz–10 kHz (±3 dB), resolution <0.1 µm |
|
Environment: −35 °C to +177 °C tip, IP67, 350 bar static, 50 g shock |
|
Dimensions/mass: 250 mm case, 0.18 kg; CE/UL, direct upgrade for 3300 RAM probes |
