Six Independent Monitoring Channels
The 3500/62 is a six-channel monitor intended for machine-critical process parameters that require continuous monitoring. Each channel can be configured for proportional current or voltage measurement.
|
Process Variables With Alarm Logic
The monitor conditions incoming signals and compares measured values with programmable Alert and Danger setpoints. Both over-alarm and under-alarm operation are supported.
|
|
PRESSURE
Fluid pressure, compressor suction and discharge pressure, steam pressure.
|
FLOW
Process flow measurements can be monitored as proportional variables.
|
TEMPERATURE
Process temperature measurements can be incorporated where appropriate.
|
PROCESS LOAD
Applications can include motor current, Megawatts, level and other proportional process variables.
|
| Parameter | 3500/62 Characteristics |
| Input Channels | 6 process-variable channels |
| Voltage Input | -10 Vdc to +10 Vdc |
| Current Input | +4 to +20 mA DC |
| I/O Options | ±10 Vdc I/O, isolated 4–20 mA I/O, or 4–20 mA I/O with internal intrinsic-safety barriers |
| Voltage Input Impedance | 1 MΩ |
| 4–20 mA Input Impedance | 50 Ω |
| Isolated I/O Isolation | 500 V |
| Typical Power Consumption | 7.0 W |
| Signal Accuracy | ±0.33% of full scale typical; ±1% maximum |
| Full-Scale Mapping | Maximum 20,000 units mapped across the input signal span |
| Minimum Voltage Signal Span | 2 V |
| Alarm Types | Alert and Danger; over and under alarm setpoints |
| Alarm Setpoint Range | Normally 0–100% of full scale, subject to sensor range limitations |
| Alarm Setpoint Accuracy | Within 0.13% of desired value |
| Alert Delay | 1–60 seconds, adjustable in 1-second increments |
| Danger Delay | 1–60 seconds, adjustable in 0.5-second increments |
| Typical Operating Temperature | -30°C to +65°C with Internal/External Termination I/O; 0°C to +65°C with Internal Barrier I/O |
| Humidity | 95%, noncondensing |
| Monitor Dimensions | 241.3 × 24.4 × 241.8 mm; 9.50 × 0.96 × 9.52 in |
| Monitor Weight | 0.82 kg / 1.8 lbm |
|
01 / ±10 Vdc
Voltage input from -10 Vdc to +10 Vdc, with internal or external terminations available.
|
02 / Isolated 4–20 mA
Isolated 4–20 mA input architecture with 500 V isolation and internal or external termination choices.
|
03 / Barrier 4–20 mA
4–20 mA configuration with internal intrinsic-safety barriers and internal terminations.
|
|
3500 System Integration
The 3500/62 is designed as a monitor module within the modular 3500 rack architecture. A complete 3500 monitoring system uses the rack, power supply, transient data interface, monitor modules and required I/O assemblies. Relay modules, communication gateways, Keyphasor modules and display hardware can be incorporated according to system requirements.
The monitor can communicate with other modules in the rack, while its front-panel TX/RX indicator provides a direct operational indication of rack communication activity.
|
Rack Allocation
Monitor module: one full-height front slot.
I/O module: one full-height rear slot.
External termination configurations require the corresponding termination block and cable assembly.
|
|
OK
Indicates proper monitor operation.
|
TX / RX
Indicates communication with other 3500 rack modules.
|
BYPASS
Indicates that the process variable is in Bypass Mode.
|
|
Firmware & Software Environment
When adding a 3500/62 to an existing 3500 system, the rack environment must meet the applicable firmware and configuration-software requirements for the monitor and selected I/O arrangement. Internal Barrier I/O has additional version requirements.
|
I/O Matching Matters
The replacement process should match the required signal type, termination arrangement and agency-approval configuration. The 3500/62 ordering structure distinguishes I/O module type from agency approval option.
|
|
Miya Zheng
Sales Manager
|
EMAIL SALES@AMIKON.CN WHATSAPP +86 180 2077 6792 |
| DELIVERY 3–5 Days |
WARRANTY 12 Months |
PACKAGING Brand New |
DELIVERY WAY DHL / UPS / FedEx / EMS / TNT |
PAYMENT T/T |
|
Q1 — Can 3500/62 replace another 3500/62 directly?
A direct replacement depends on the existing I/O configuration, termination arrangement, agency approval option and rack environment. The 3500/62 ordering structure separates the monitor from its I/O and approval configuration, so the replacement should be matched to the installed architecture rather than selected by model number alone.
|
Q2 — Which 3500/62 I/O version should be selected for a 4–20 mA transmitter?
The 3500/62 supports 4–20 mA configurations through isolated I/O or through the internal-barrier arrangement. Selection depends on whether isolation, internal intrinsic-safety barriers, termination style and applicable hazardous-area requirements are part of the installation.
|
|
Q3 — Is calibration required after installing a 3500/62?
The specified signal-conditioning characteristics state that no calibration is required. Channel full-scale range is configured in the field through 3500 Configuration Software, so configuration and signal-range matching remain important when commissioning or replacing a monitor.
|
Q4 — How should 3500/62 alarm behavior be considered when replacing a channel monitor?
The 3500/62 provides Alert and Danger setpoints, with both under and over alarm capability. Alert delay can be configured from 1 to 60 seconds in 1-second steps, while Danger delay can be configured from 1 to 60 seconds in 0.5-second steps. Existing process protection settings should therefore be checked when commissioning a replacement.
|
|
Q5 — Does 3500/62 fit applications where hazardous-area signal interfaces are required?
The 3500/62 is offered with I/O configurations that include an internal intrinsic-safety barrier option, and the product family has hazardous-area approval configurations. The exact approval depends on the selected I/O and agency option, installation conditions and applicable certification requirements.
|
|
|
Order Handling
Please provide Part Number, Quantity, Destination, Required Date and Machine/System when requesting a quotation.
|
Return / Replacement
Please contact us within 7 days if you have any question after you receiving the items.
The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns.
The buyer is responsible for all the shipping cost incurred.
|
| IC695CPE330 | ALR121-S51 | 81007-465-51-R | PR6424/006-030 |
| T8153C | CDC40105 | A6140 | IS200TBAIH1CDC |
| PR9268/601-000 | 3HAC044841-002 | PW481-51 | S3960 |
| IC695ALG608 | TRICONEX 3614E | 745875F | 6SN1118-0DK21-0AA2 |
| ALR121-S50 | 81004-286-52-R | A6210 | PR6423/003-110 |
| IC695CPU315-CG | S2SC70D-FA12010 | 80190-478-51 | VI702 |
| 1900C | IC695PSD040H | PR9268/603-000 | 3HAC048293-001 |
| PH4F-120-10E-N | IC200PNS002-AB | 80190-560-02-R | PW484-50 |
| CON021 | 7XV124.50-12 | IC695ETM001-LBAA | T8290C |
| 135031-01 | A2FV70D-A411000/HKU | 80190-480-01-R | 6SL3224-0BE37-5AA0 |
| IC695CMM002 | 3D0479.9 | TRICONEX 3611E | CP461-50 |
| SDV541-S33 | 80026-044-02 | FCP280 | IC695ALG708 |
| AIP830-101 | 81001-451-83-R | AAP135-S50 | 7A0352.70 |
| IS220PCLAH1A | PR6423/03R-012-ZD | ALE111-S51 | MVI56E-MCM |
| TRICONEX 3623 | IC694ALG390C | ALR121-S51 | 80190-300-01-R |
| F8641 | F7553 | F3221 | F3236 |
| T8151C | T8310C | A2FV70D-A411000/HKU | 4PP065.0571-P74 |
| 7D1439.7 | 8AC114.60-2 | 8V1320.00-2 | 3HAC043073-003 |
| S3960 | IC694MDL645E | HE693RTD600R | ANB10D-425-CU2N |

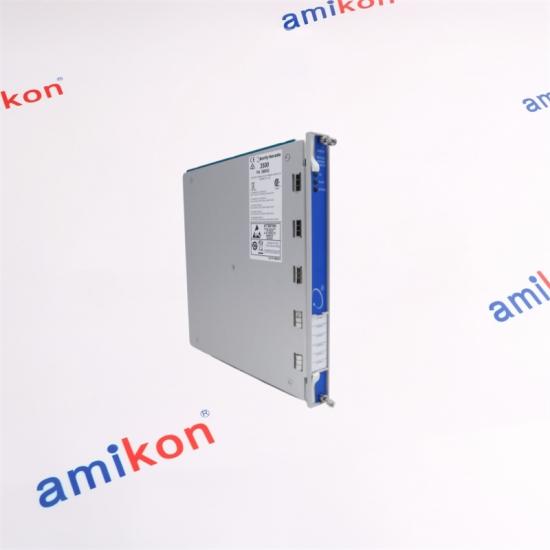

The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
