24/48 VDC Standard Power Supply · 30 W Total Output
POWER ARCHITECTURE
30 W Series 90-30 Supply

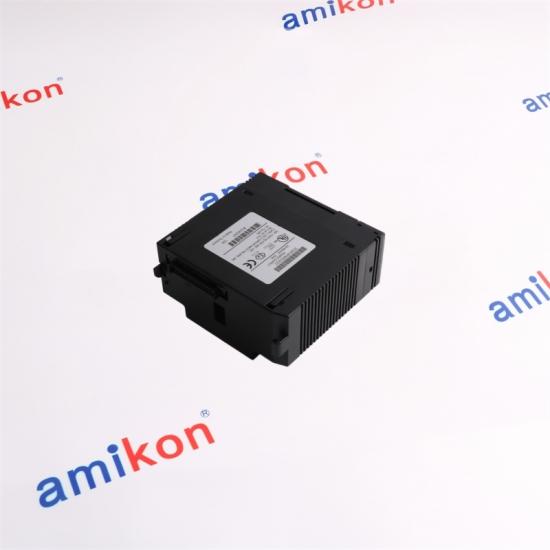

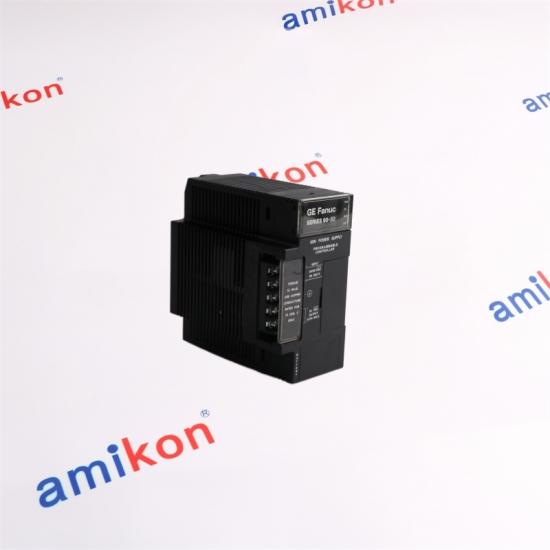

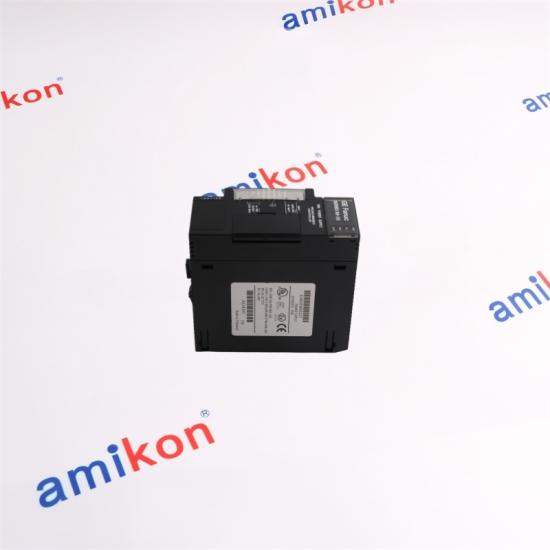

The IC693PWR322E is a standard DC-input power supply for the Series 90-30 programmable controller platform. It is designed for nominal 24 VDC or 48 VDC input operation and provides three supply paths for the controller system: +5 VDC, +24 VDC relay power, and isolated +24 VDC.
TOTAL OUTPUT LIMIT All three outputs combined must remain within the 30 W total capacity.
SYSTEM POSITION
Leftmost Baseplate Slot
Series 90-30 power supplies are installed in the leftmost slot of the compatible baseplate. The module also provides an RS-485-compatible serial interface and front-panel status indicators.
ELECTRICAL PROFILE
Nominal Input
24 or 48 VDC
Total Output
30 W maximum
Start Range
21 to 56 VDC
Run Range
18 to 56 VDC
Full-Load Input Power
50 W maximum
Inrush Current
4 A peak, 100 ms maximum
Hold-Up Time
14 ms minimum
Serial Interface
RS-485 compatible
THREE OUTPUT PATHS
+5 VDC
15 W maximum
Output range: 5.0 to 5.2 VDC
+24 VDC Relay
15 W maximum
Output range: 24 to 28 VDC
+24 VDC Isolated
20 W maximum
Output range: 21.5 to 28 VDC
The combined load across the three outputs must not exceed 30 W.
PROTECTION & CONTROL
Designed around the 90-30 power structure
The 5 VDC output has an overvoltage protective limit of approximately 6.4 to 7 V and an overcurrent limit of 4 A maximum. A minimum 14 ms hold-up time is specified for the supply.
015 VDC Protection
6.4–7 V overvoltage limit
025 VDC Current
4 A maximum overcurrent limit
03Status LEDs
PWR · OK · RUN · BATT
04Serial Interface
RS-485 compatible port
APPLICATION POSITION
Series 90-30 power foundation
IC693PWR322E is intended for Series 90-30 baseplate installations where a 24 VDC or 48 VDC supply source is available. Its three output paths support the controller backplane, relay-output circuitry, and isolated 24 VDC requirements associated with the Series 90-30 architecture.
SERIES CONTEXT
IC693PWR321
AC/DC standard supply family
IC693PWR328
48 VDC input variant
IC693PWR330
High-capacity AC/DC supply
IC693PWR331
High-capacity 24 VDC supply
IC693PWR322E is a hardware revision within the Series 90-30 IC693PWR322 24/48 VDC 30 W power-supply family.
DIRECT ASSISTANCE
Need IC693PWR322E?
Send the part number, quantity, destination and required date for a focused quotation.
Q1 · Can IC693PWR322E replace another IC693PWR322 revision?
IC693PWR322E belongs to the same IC693PWR322 24/48 VDC, 30 W family. Replacement should still be checked against the existing baseplate, system revision requirements, electrical loading, and required approvals before installation.
Q2 · What should be checked before using IC693PWR322E on a 24 VDC system?
Confirm that the actual supply remains within the specified 18–56 VDC running range and reaches at least 21 VDC during startup. The connected output load must also remain within the 30 W combined limit.
Q3 · How should IC693PWR322E capacity be evaluated for a loaded Series 90-30 rack?
Add the required load for the +5 VDC, +24 VDC relay, and isolated +24 VDC paths while keeping the combined output within 30 W. The individual output limits also apply: 15 W for +5 VDC, 15 W for relay +24 VDC, and 20 W for isolated +24 VDC.
Q4 · Why does IC693PWR322E matter when a system has a 24 VDC input requirement?
Its isolated +24 VDC output can support 24 VDC input-module circuits within its specified capacity, while the relay +24 VDC output serves relay-output circuitry. This separation can matter when planning the power budget of an existing rack.
Q5 · What should be checked when sourcing IC693PWR322E for an older Series 90-30 installation?
Confirm the exact catalog number and revision, 24/48 VDC input requirement, 30 W system capacity, baseplate position, required serial interface, status indicators, and the approval requirements applicable to the installation. Matching the complete part number is important when maintaining an existing control system.
