VERSAMAX · DISCRETE OUTPUT

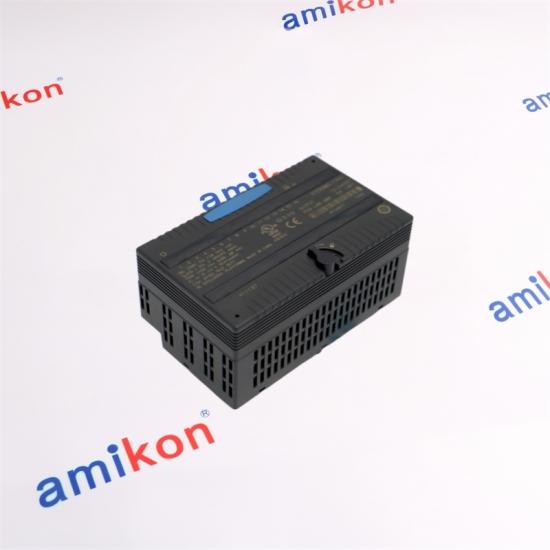

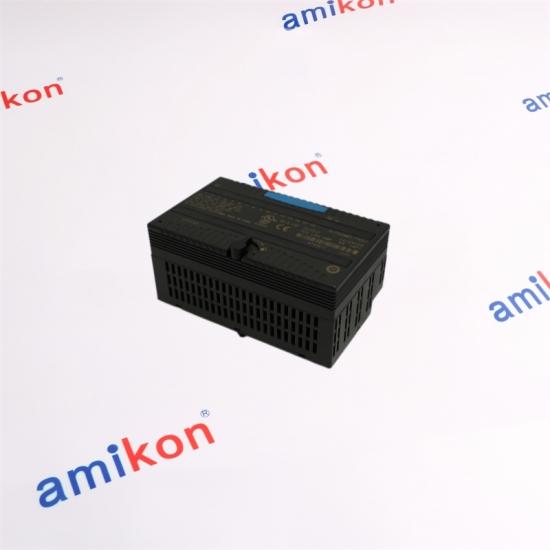

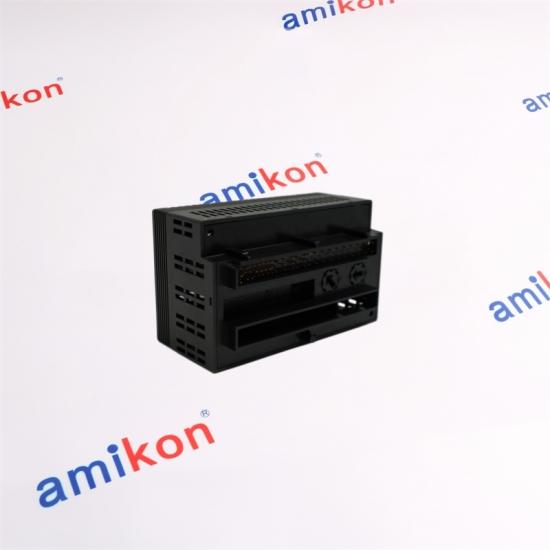

IC200MDL750
12/24 VDC Positive Logic · 32-Point Output
Compact Output Density
Two independent groups of 16 discrete outputs provide a practical 32-point positive-logic interface for VersaMax distributed I/O architectures.
|
GE / VERSAMAX I/O
Positive-Logic Output Architecture
2 × 16 output groups · External field supply · Individual point indication
|
|
|
|
01
16 OUTPUTS
Group A
|
02
16 OUTPUTS
Group B
|
DC+
FIELD SUPPLY
Per output group
|
LED
POINT STATUS
Individual indication
|
|
Electrical Characteristics
Output voltage drop: 0.3 V maximum
Output leakage current: 0.5 mA at 30 VDC maximum
Protection: No internal fuses
An external DC power supply is required for switching field loads.
|
Isolation & Indication
User-to-logic and frame-ground isolation: 250 VAC continuous
Isolation withstand: 1500 VAC for 1 minute
Group-to-group isolation: 250 VAC continuous
Individual green LEDs show output point state; FLD PWR indicates field power and OK indicates backplane power.
|
|
IC200MDL740
12/24 VDC positive logic, 0.5 A per point, 16-point output architecture.
|
IC200MDL742
24 VDC positive logic, 0.5 A per point, 32 points with electronic short-circuit protection.
|
IC200MDL744
5/12/24 VDC negative logic, 0.5 A per point, 32-point architecture.
|
IC200MDL930
Relay output architecture with isolated Form A contacts for applications requiring relay switching.
|
|
DIRECT SUPPORT
Need an IC200MDL750?
Send the part number, quantity, destination, required date, and machine or system details. Our sales team can help confirm the configuration before order processing.
|
| Delivery 3–5 Days |
Warranty 12 Months |
Packaging Brand New |
Delivery Way E-packing / FedEx / DHL / UPS |
Payment T/T |
|
01 · IC200MDL750 — Can a 12 VDC application use this module?
Yes, but the 12 VDC output function requires IC200MDL750 version B or later. Earlier versions do not provide the 12 VDC output function.
|
02 · IC200MDL750 — Is the 32-point output capacity divided into separate groups?
Yes. The 32 outputs are arranged as two groups of 16. Each group has its own DC+ and DC− field connections, which should be considered when matching an existing wiring arrangement.
|
|
03 · IC200MDL750 — What should be checked when replacing an installed unit?
Check the module version, 12/24 VDC field supply, positive-logic arrangement, two-group wiring, load current, carrier compatibility, and the thermal conditions of the installation before replacement.
|
04 · IC200MDL750 — Does each output have individual status indication?
Yes. Each output point has an individual green LED indicating its on/off state. The FLD PWR LED indicates field power, while the OK LED indicates backplane power.
|
|
05 · IC200MDL750 — Is it suitable when the replacement requires point-to-point isolation?
No. The module has no point-to-point isolation. Its architecture provides optical user-to-logic and frame-ground isolation, plus group-to-group isolation, so an application requiring isolated individual output channels should be evaluated against another output architecture.
|
|
|
