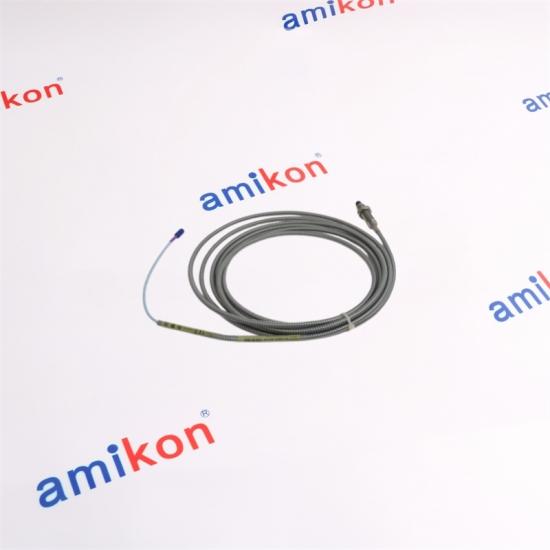

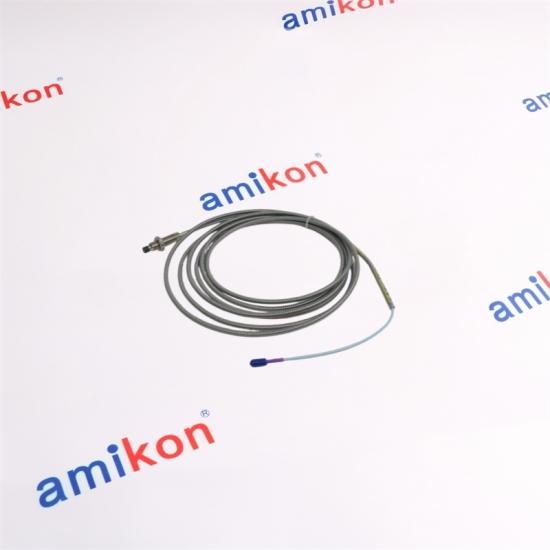

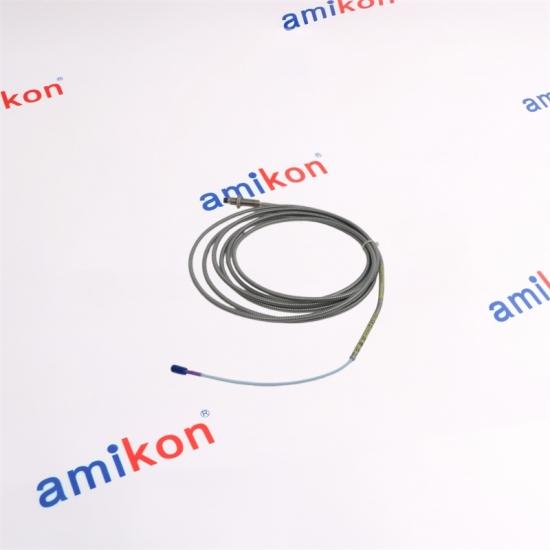

The 330710-00-060-10-02-00 is a standard-mount, armored 3300 XL 11 mm proximity probe with an M16 × 1.5 thread. It forms part of the 3300 XL 11 mm Proximity Transducer System used for non-contacting vibration and displacement measurement.
The 3300 XL 11 mm system consists of the probe, a compatible extension cable and a 3300 XL 11 mm Proximitor Sensor. The larger 11 mm tip provides a longer linear range than the standard 3300 XL 8 mm system.
|
|
|
4.0 mm
Linear Range
|
3.94 V/mm
Nominal Scale Factor
|
0–8 kHz
Typical Frequency Response
|
2.5 mm
Recommended Gap
|
|
TIP MATERIAL
Polyphenylene Sulfide (PPS)
|
PROBE CASE
AISI 304 Stainless Steel
|
CABLE
75 Ω Triaxial FEP Insulated
|
CONNECTOR
Gold-Plated Brass ClickLoc
|
|
PROBE TEMPERATURE
−52°C to +177°C
|
MINIMUM BEND RADIUS
25.4 mm
|
RECOMMENDED GAP
2.5 mm / 100 mils
|
MAX. M16 × 1.5 ENGAGEMENT
24 mm
|
|
MEASUREMENT APPLICATION
POSITION
+ VIBRATION |
The 3300 XL 11 mm system is intended for non-contacting measurement duties where its 4.0 mm linear range is required. Typical applications include radial vibration and position, axial position, Keyphasor measurement, ramp differential expansion on steam turbines, rod position or rod drop on reciprocating compressors, and tachometer or zero-speed measurement.
|
|
01
PROBE
330710-00-060-10-02-00
|
02
EXTENSION CABLE
3300 XL 11 mm compatible extension cable
|
03
PROXIMITOR SENSOR
3300 XL 11 mm Proximitor Sensor
|
|
330701
1/2-20 UNF · Without armor
|
330702
1/2-20 UNF · With armor
|
330703
M14 × 1.5 · Without armor
|
330704
M14 × 1.5 · With armor
|
|
330707
5/8-18 UNF · Without armor
|
330708
5/8-18 UNF · With armor
|
330709
M16 × 1.5 · Without armor
|
330710
M16 × 1.5 · With armor
|
| EMAIL · sales@amikon.cn | PHONE / WHATSAPP · 86-18020776792 |
SALES MANAGER · MIYA ZHENG
|
|
01
|
How should 330710-00-060-10-02-00 be matched to the installed monitoring chain?
The probe belongs to the 3300 XL 11 mm Proximity Transducer System. Replacement selection should therefore consider the complete probe, extension cable and 3300 XL 11 mm Proximitor Sensor combination rather than treating the probe as an isolated connector component.
|
|
02
|
Why is the 4.0 mm linear range relevant when selecting 330710-00-060-10-02-00?
The 3300 XL 11 mm system provides a 4.0 mm linear range, giving it more measurement span than the standard 3300 XL 8 mm system. This characteristic is relevant when the machine measurement point requires the longer range provided by the 11 mm system.
|
|
03
|
What mechanical details of 330710-00-060-10-02-00 should be checked before replacement?
The exact configuration uses an M16 × 1.5 thread, armored construction, 0 mm unthreaded length, 60 mm overall case length and a 1.0 m probe cable. These dimensions should correspond to the installed mounting arrangement before the replacement is commissioned.
|
|
04
|
What does the 02 suffix mean on 330710-00-060-10-02-00?
For the metric 3300 XL 11 mm probe ordering structure, 02 specifies a miniature coaxial ClickLoc connector with standard cable. The final 00 specifies that the agency approval option is not required.
|
|
05
|
Can 330710-00-060-10-02-00 be substituted by another 3300 XL 11 mm probe with the same series number?
Not automatically. The 3300 XL 11 mm family contains different thread, armor, case-length, cable-length and connector configurations. A replacement should preserve the mechanical and electrical configuration required by the installed measurement point and matched transducer system.
|
|
