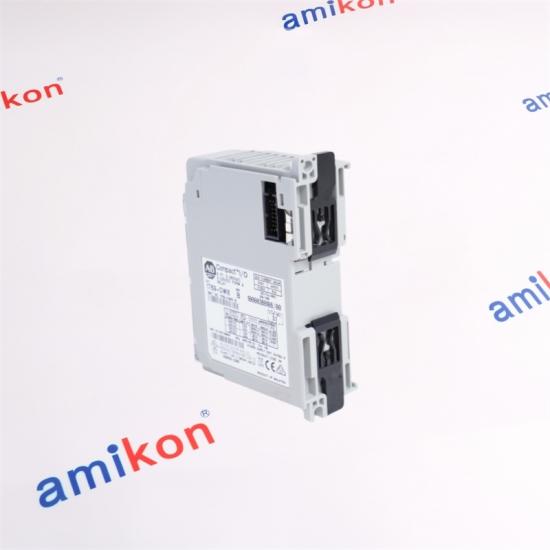

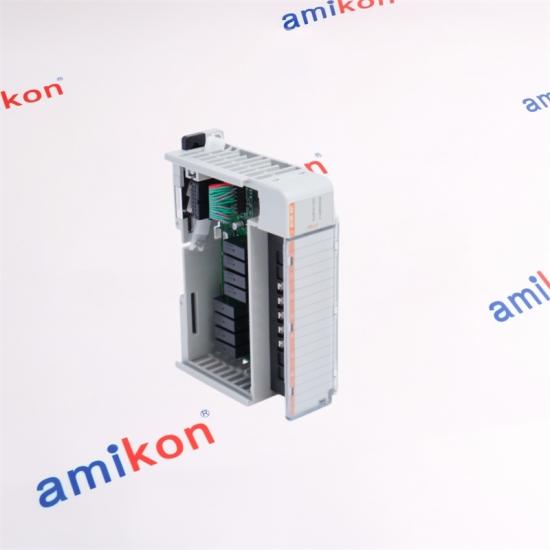

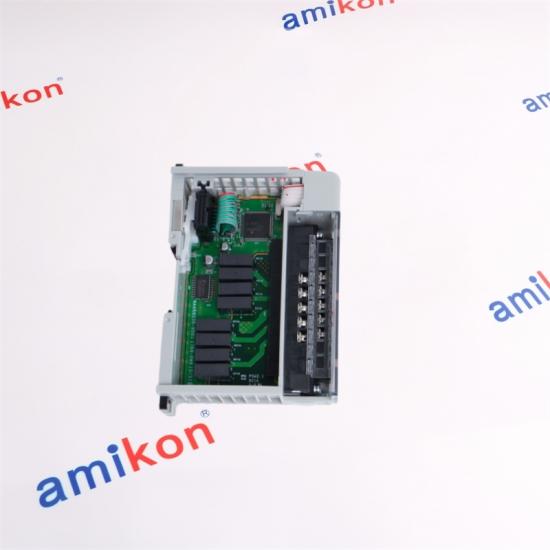

Allen-Bradley 1769-OW8 CompactLogix 8 Point VAC/VDC Relay Output Module

Allen-Bradley 1769-OW8
Allen-Bradley 1769-OW8
Allen-Bradley 1769-OW8

Allen-Bradley 1769-OW8 CompactLogix 8 Point VAC/VDC Relay Output Module

Calculate shipping
Quotation Request


◇
✦
ALLEN-BRADLEY · COMPACT I/O
1769-OW8
8 Point VAC/VDC Relay Output Module
Relay contact switching for
Compact I/O applications
OUTPUT PROFILE
8
Relay Channels
5–265 V
AC Output
DC Output · 5–125 V
Isolation · 1836 V AC @ 1 s / 2596 V DC
AMIKON GLOBAL SERVICE
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.





ALLEN-BRADLEY / COMPACT I/O
1769-OW8
CompactLogix 8 Point VAC/VDC Relay Output Module
RELAY OUTPUT ARCHITECTURE
The 1769-OW8 is an 8-point AC/DC relay contact module designed for Compact I/O systems. Its relay outputs support both AC and DC load switching, with outputs arranged as two isolated groups of four points.
The module accepts a broad load-voltage range of 5...265V AC and 5...125V DC. Each output is normally open, while the two output groups provide practical separation for mixed-load arrangements within the module's specified ratings.
08
Relay Outputs
2.5 A
Max. Continuous / Point
5–265 V
AC Operating Range
5–125 V
DC Operating Range
ENGINEERING SNAPSHOT
On delay 10 ms
Off delay 10 ms
Module current 16 A max.
Heat dissipation 2.83 W max.
TECHNICAL PROFILE
Product Type
AC/DC normally open relay output		 Number of Outputs
8 normally open outputs		 Output Groups
Group 1: outputs 0...3 / Group 2: outputs 4...7
AC Operating Voltage
5...265V AC		 DC Operating Voltage
5...125V DC		 Current / Point
2.5 A continuous maximum
Current / Module
16 A maximum		 Current / Common
8 A maximum		 On / Off Delay
10 ms / 10 ms maximum
Bus Current @ 5.1V
125 mA		 Bus Current @ 24V
100 mA		 Heat Dissipation
2.83 W maximum
Isolation
1836V AC for 1 s or 2596V DC for 1 s		 Dimensions
118 × 35 × 87 mm		 Approx. Weight
280 g
RELAY CONTACT CAPABILITY
Load Voltage Continuous Current Make Rating Break Rating
240V AC 2.5 A 7.5 A 0.75 A
120V AC 2.5 A 15 A 1.5 A
125V DC 1.0 A 0.22 A* 28 VA*
24V DC 2.0 A 1.2 A* 28 VA*
* DC contact make/break current is governed by the specified 28 VA contact rating and the applied DC voltage.
COMPACT I/O INTEGRATION
The 1769-OW8 occupies one Compact I/O slot and can be mounted on DIN rail or panel. Its power-supply distance rating is 8 modules, making the module suitable for distributed Compact I/O arrangements within the specified system architecture.

SAME-SERIES OPTIONS
Within the 1769 Compact I/O digital output family, the 1769-OW8 provides relay-based AC/DC switching. The 1769-OW8I provides individually isolated relay outputs, while the 1769-OW16 extends the relay-output count to 16 points. Solid-state alternatives such as the 1769-OA8 are intended for AC output applications rather than relay contact switching.
SELECTION NOTE: When replacing an existing relay output module, verify the load voltage, steady-state current, make/break duty, group arrangement and available Compact I/O power budget before installation. The 1769-OW8 should be selected according to the actual load and the relay contact ratings rather than by channel count alone.
✦
READY FOR YOUR 1769-OW8 REQUIREMENT?
Talk to AMIKON
Send the part number, quantity, destination and required date for a focused quotation.
Sales Manager: Miya Zheng
EMAIL SALES WHATSAPP
sales@amikon.cn   |   +86 180 2077 6792
Delivery
3–5 Days		 Warranty
12 Months		 Packaging
Brand New		 Delivery Way
E-packing / FedEx / EMS / TNT / DHL / UPS		 Payment
T/T
Return / Replacement: Please contact us within 7 days if you have any question after you receiving the items. The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns. The buyer is responsible for all the shipping cost incurred.
1769-OW8 PURCHASE QUESTIONS
Five practical points to review before replacement or system integration
1769-OW8 — Can it switch both AC and DC loads on the same module?
Yes. The 1769-OW8 is an AC/DC relay contact module with an operating range of 5...265V AC and 5...125V DC. Its eight normally open outputs are divided into two groups of four. Mixed AC/DC use is possible when the individual load, common-current and relay contact ratings are respected.
1769-OW8 — What should be checked when replacing another 1769 output module?
Channel count alone is not sufficient. Check whether the existing application requires relay contacts or solid-state switching, then verify load voltage, continuous current, make/break duty, group arrangement, module current and power-supply distance. A module such as the 1769-OA8 is an AC solid-state output device and is not a direct functional equivalent to the relay-contact behavior of the 1769-OW8.
1769-OW8 — Is it suitable when different output groups need separate load arrangements?
The module has two isolated output groups: outputs 0...3 form one group and outputs 4...7 form the other. This grouping can be useful when the application requires separate common connections. The isolation specification is 1836V AC for 1 second or 2596V DC for 1 second, with the applicable working-voltage limitations still governing the installation.
1769-OW8 — When would the 1769-OW8I be considered instead?
The 1769-OW8I is the individually isolated relay-output variant in the same Compact I/O family. If each output requires individual isolation rather than the two-group arrangement of the standard 1769-OW8, the 1769-OW8I is the relevant model to evaluate. The electrical application should be checked against the required isolation architecture before substitution.
1769-OW8 — What lifecycle and availability point should buyers consider?
Rockwell Automation currently lists the 1769-OW8 as Active Mature and shows a replacement available indicator. For a maintenance purchase, buyers should therefore match the exact catalog number and application requirements while also considering whether the existing control architecture needs the same relay-output behavior and Compact I/O compatibility.
