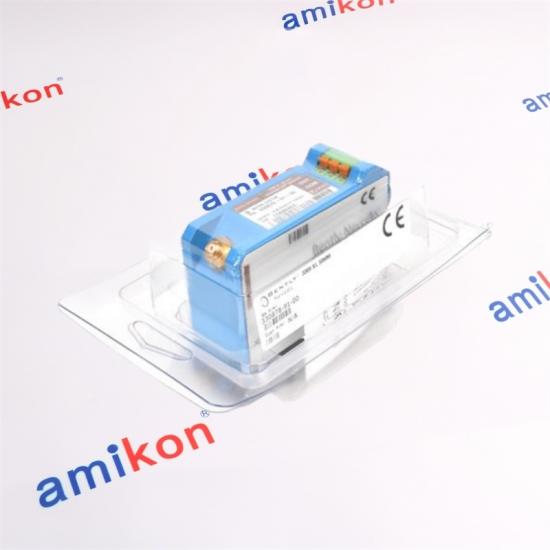

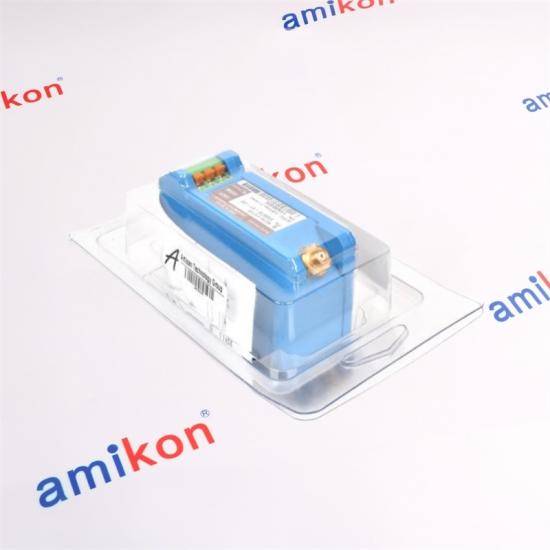

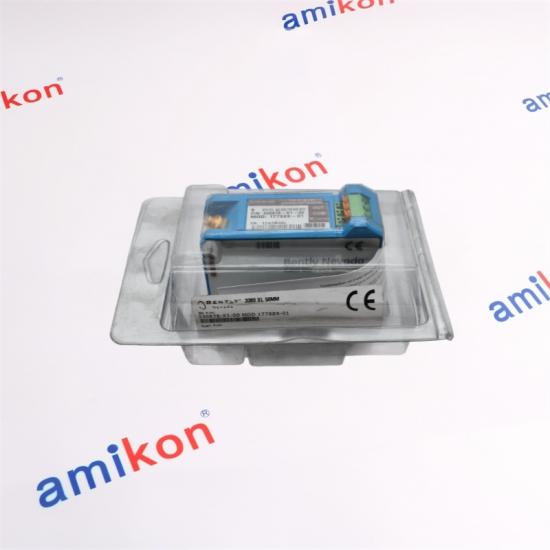

Signal-conditioning sensor for the 3300 XL 50 mm proximity transducer system.
It accepts one compatible probe and extension cable and provides a conditioned output for wide-range non-contact displacement measurements. Because X0 and MOD 177889-01 denote a special configuration, confirm the complete nameplate rather than substituting a standard suffix.
Probe cable length plus extension cable length must equal the total system length ordered for the Proximitor Sensor. When replacing an older 50 mm system, replace the probe, extension cable and sensor together.
| Supply | −17.5 to −26 VDC |
| Operating temperature | −51 to +100 °C |
| Field wiring | 0.2–1.5 mm² |
| Mounting family | Panel / DIN rail |
The 3300 XL 50 mm Proximitor Sensor family; the complete suffix defines length and mounting details.
No. Upgrade the probe, extension cable and sensor as a matched 50 mm system.
It marks a special build and should be verified from the installed nameplate before ordering.
Send full nameplate photos, complete code, mounting, cable/system length, quantity and destination.
