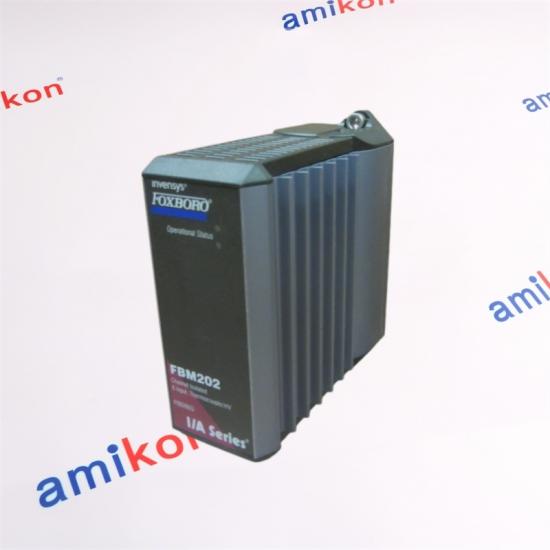

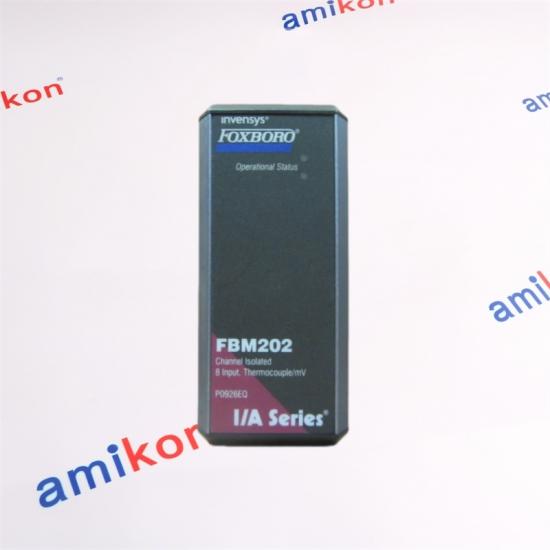

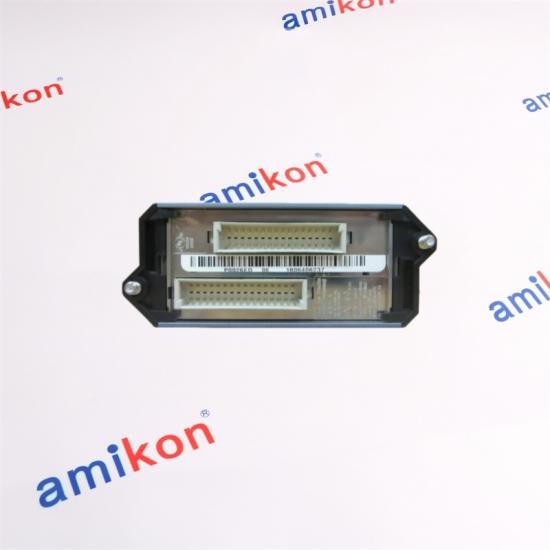

Foxboro FBM202 P0926EQ 8-input thermocouple module

What We Aim to Do
Can't find your exact part number? Our experienced sales and customer service team is always ready to assist. Whether it's a hard-to-locate part number or complex spare parts requirements, we are here to help. We will ensure your production stays up and running.

What We Are Doing
With twenty years of experience in industrial automation supply, we understand the importance of speed and reliability. That’s why we take pride in being one of the few suppliers offering expedited shipping services, ensuring your operations run smoothly.

What We Strive to Maintain
Emergency Shipping for Industrial Automation Parts
Downtime wastes your time and money—AMIKON is here to help. As a trusted automation parts supplier, we provide emergency shipping services to quickly deliver critical components to you, minimizing downtime to the greatest extent.

⇒Miya Email: sales@amikon.cn    Whatsapp/phone: +86 18020776792

Specifications

Overview

The FBM202 Thermocouple/mV Input contains eight thermocouple input channels, and one isolated RTD reference junction compensation channel (for terminal temperature sensing). Each thermocouple/mV channel accepts standard thermocouples for various temperature ranges, and each provides thermocouple burnout detection (up-scale). The inputs are galvanically isolated from other channels and ground.

The module performs the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant Fieldbus. It executes an Analog Input application program, which provides integration time and Rate of Change Limits configurable options.

Two types of passive termination assemblies are available for the FBM202:

l DIN rail mounted TAs, similar to those used with the other 200 Series FBMs

l Baseplate-mounted TA, which mounts directly onto the field I/O connectors of the 200 Series

When connected to the appropriate TAs, the FBM202 module provides functionality formerly provided by the 100 Series FBM I/O subsystem. TAs are available which support the functionality of the 100 Series FBM02.

FEATURES

l Key features of the FBM202 are: 4

l Eight channels for input of thermocouple signals 4

l One isolated RTD reference junction compensation channel (for terminal temperature sensing)

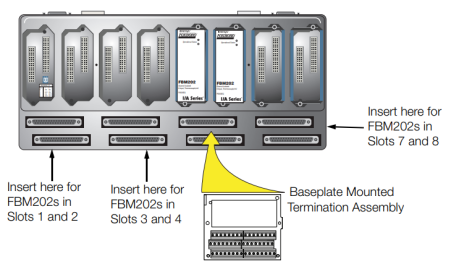

l Each input channel is galvanically isolated baseplate. These TAs provide field I/O wiring support for two FBM202s in paired slots (that is, in positions 1 and 2, 3 and 4, 5 and 6, or 7 and 8), as shown in Figure 1.

l Compact, rugged design suitable for enclosure in Class G3 (harsh) environments 4

l Execution of an analog input application program that provides conversion time and configurable options for Rate of Change Limits 4

l High accuracy achieved by sigma-delta data conversions for each channel 4

l Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM202

HIGH ACCURACY

For high accuracy, the module incorporates SigmaDelta data conversion on a per-channel basis, which can provide new analog input readings every 25 ms, and a configurable integration period to remove any process noise and power line frequencies. Each time period, the FBM converts each analog input to a digital value, averages these values over the time period and provides the averaged value to the controller

COMPACT DESIGN

FBM202 has a compact design, with a rugged extruded aluminum exterior for physical protection of the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments, per ISA Standard S71.04.
